Engine Wiring Harness

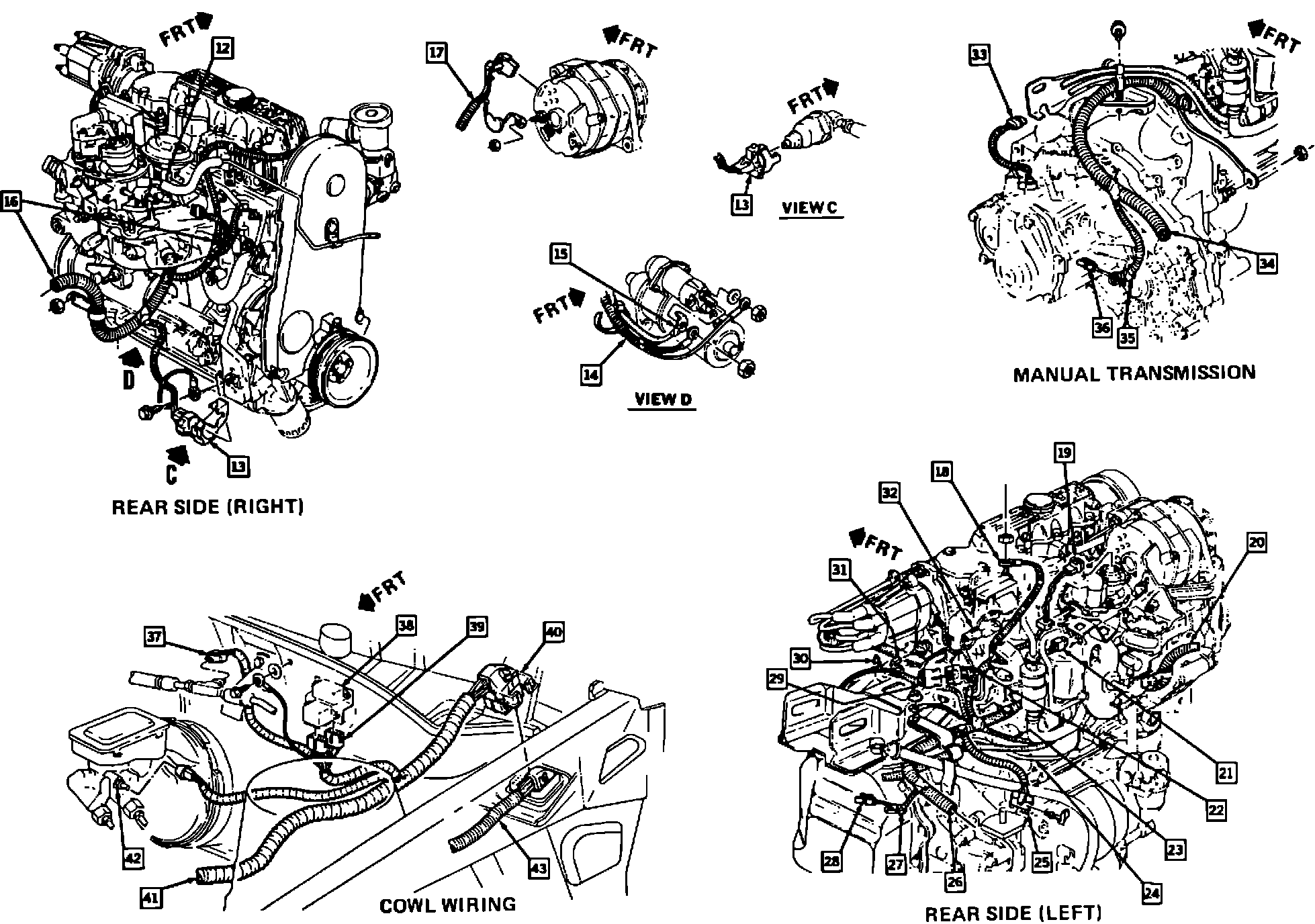

Engine Wiring Harness (Part 1 Of 4).:

Engine Wiring Harness (Part 1 Of 4).:

Engine Wiring Harness (Part 1 Of 4).:

Engine Wiring Harness (Part 1 Of 4).:

In Engine Compartment

Applicable to: 1985 Firenza 4-121/2.0L Engine
