Home >> Oldsmobile >> 1985 >> Firenza L4-112 1.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> A/C Blower & Compressor Control Wiring Circuit >> Part 1 of 2

Part 1 of 2

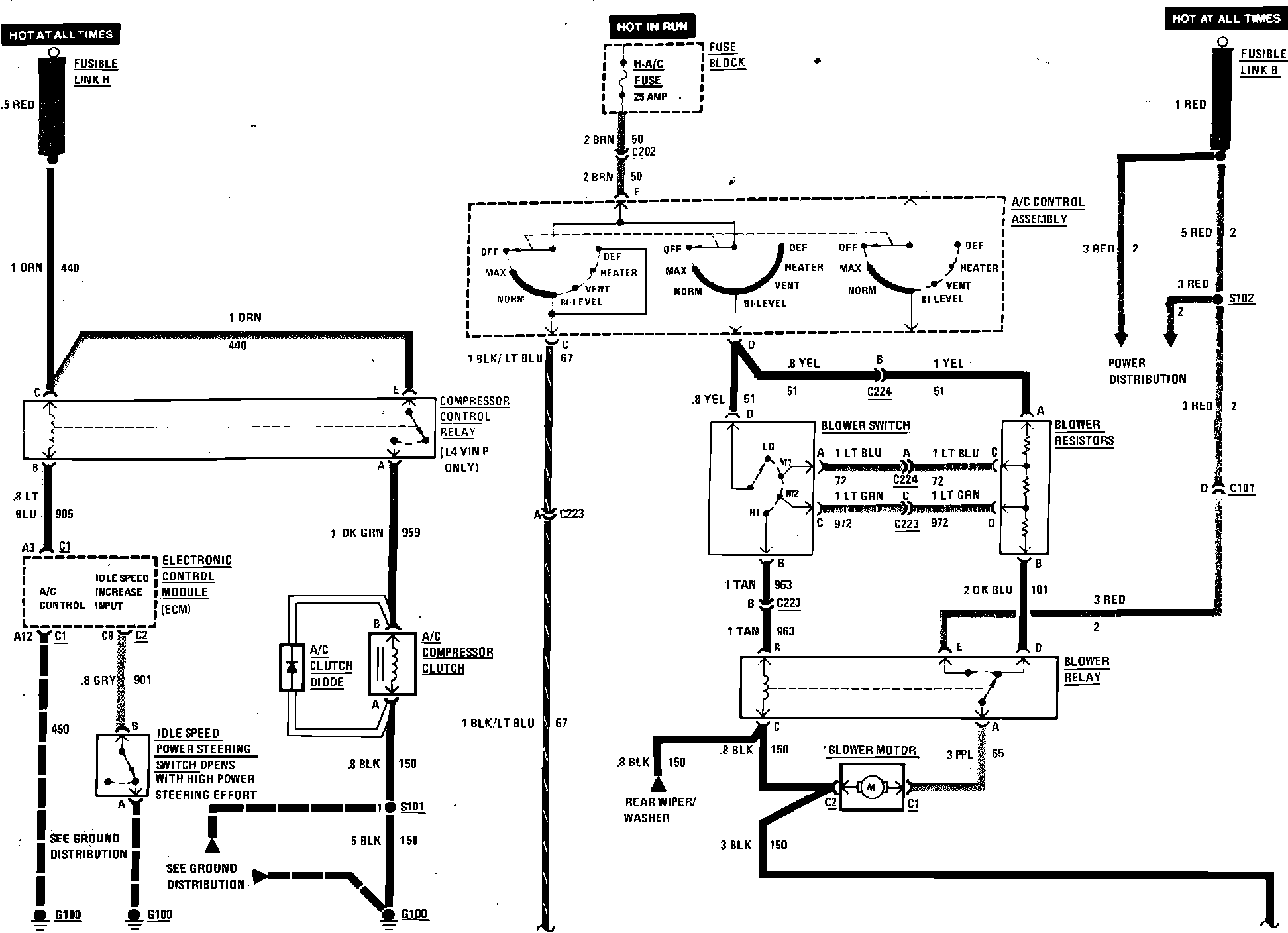

Air Conditioning Blower & Compressor Controls Wiring Circuit:



Air Conditioning Blower & Compressor Controls Wiring Circuit:
