Oldsmobile
>>
1985
>>
Firenza L4-112 1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
System Diagram
>>
Tailgate Release
>>
Automatic Transmission
Automatic Transmission

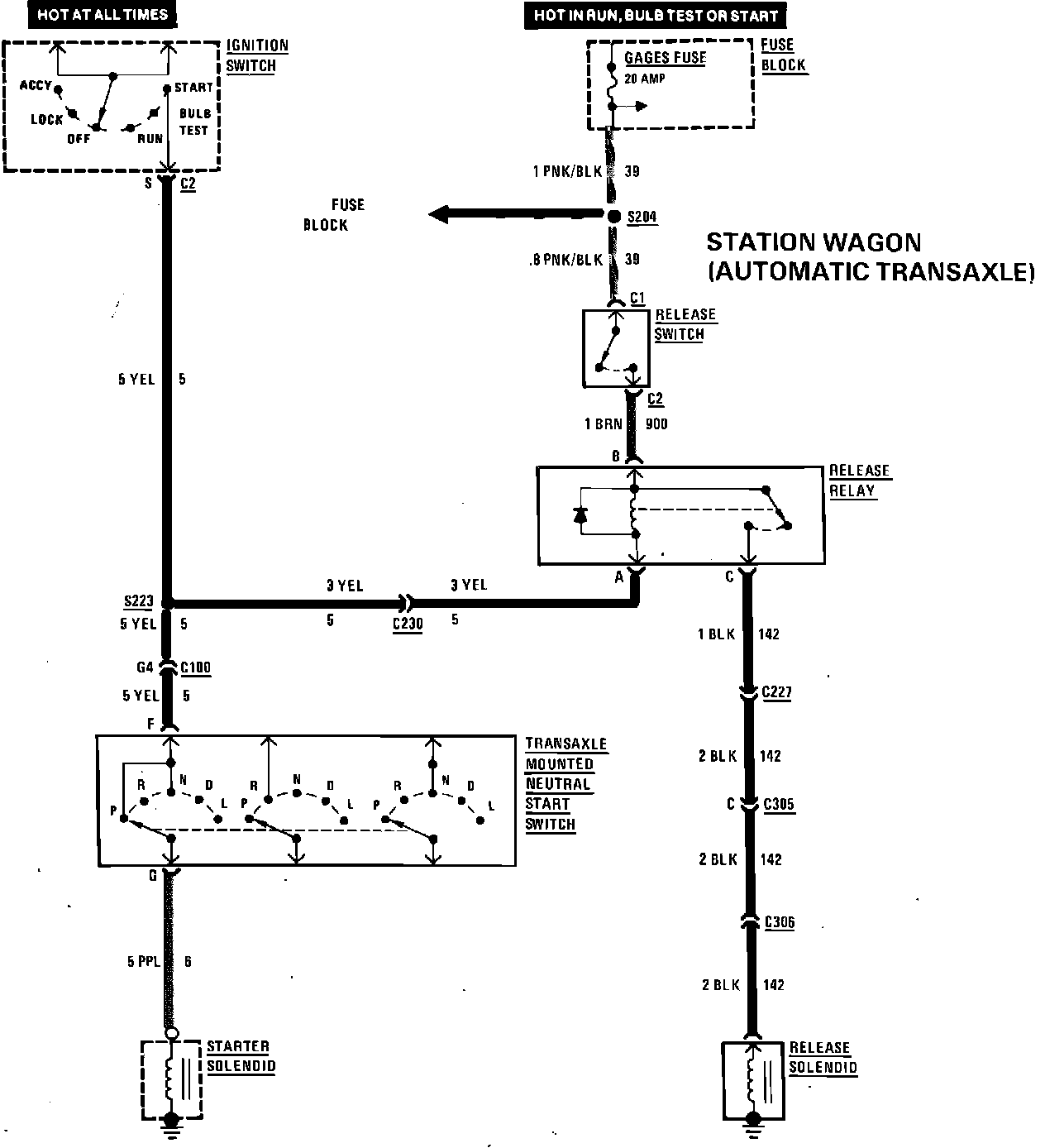

Tailgate Release Wiring Circuit (With Automatic Transaxle):
