Home
>>
Oldsmobile
>>
1985
>>
Firenza L4-112 1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Ground Distribution
>>
G303 & G304 Hatchback
G303 & G304 Hatchback

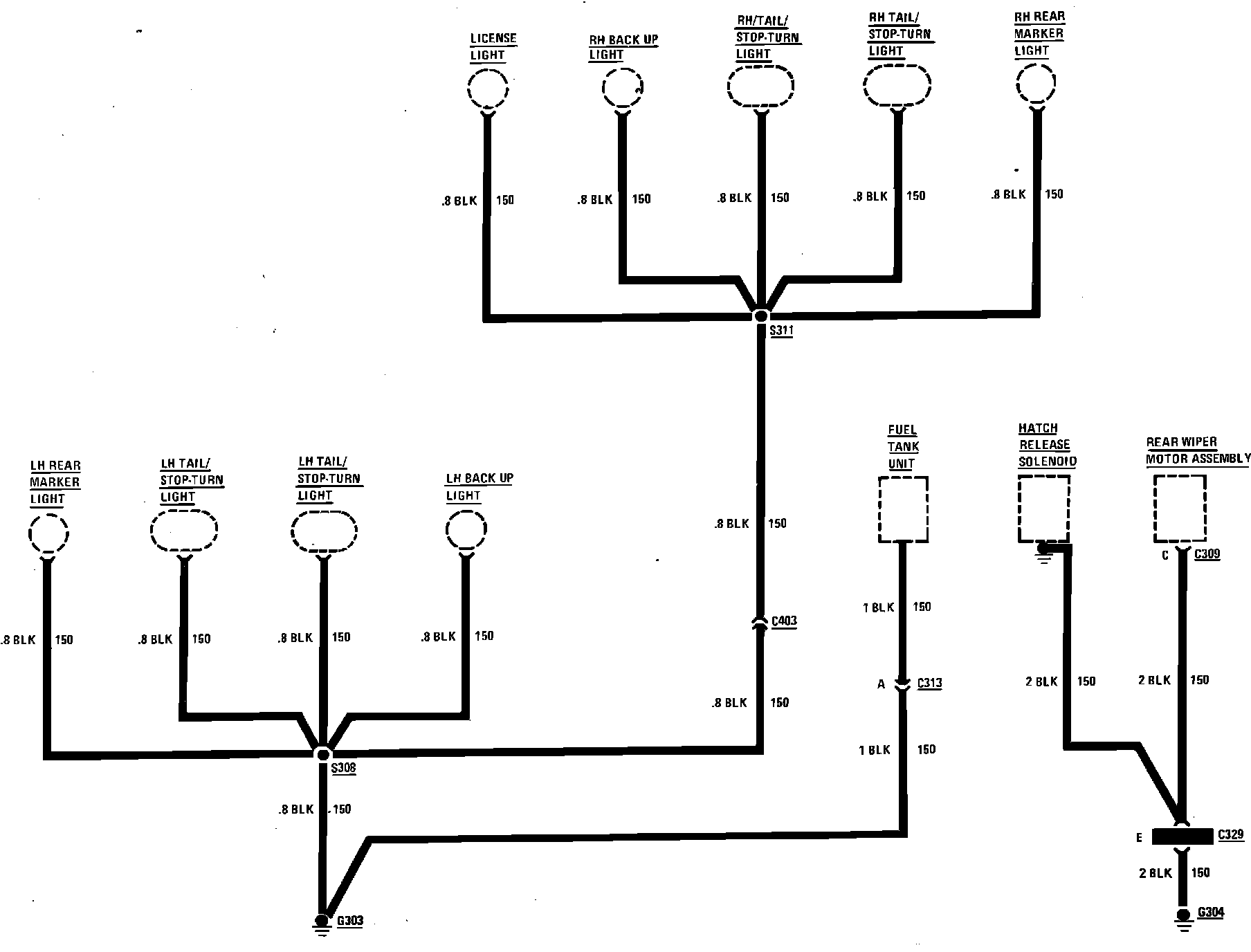

Ground Distribution (G303 & G304) Hatchback:
