Home >> Oldsmobile >> 1985 >> Firenza L4-112 1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc

Radio, Stereo, and Compact Disc

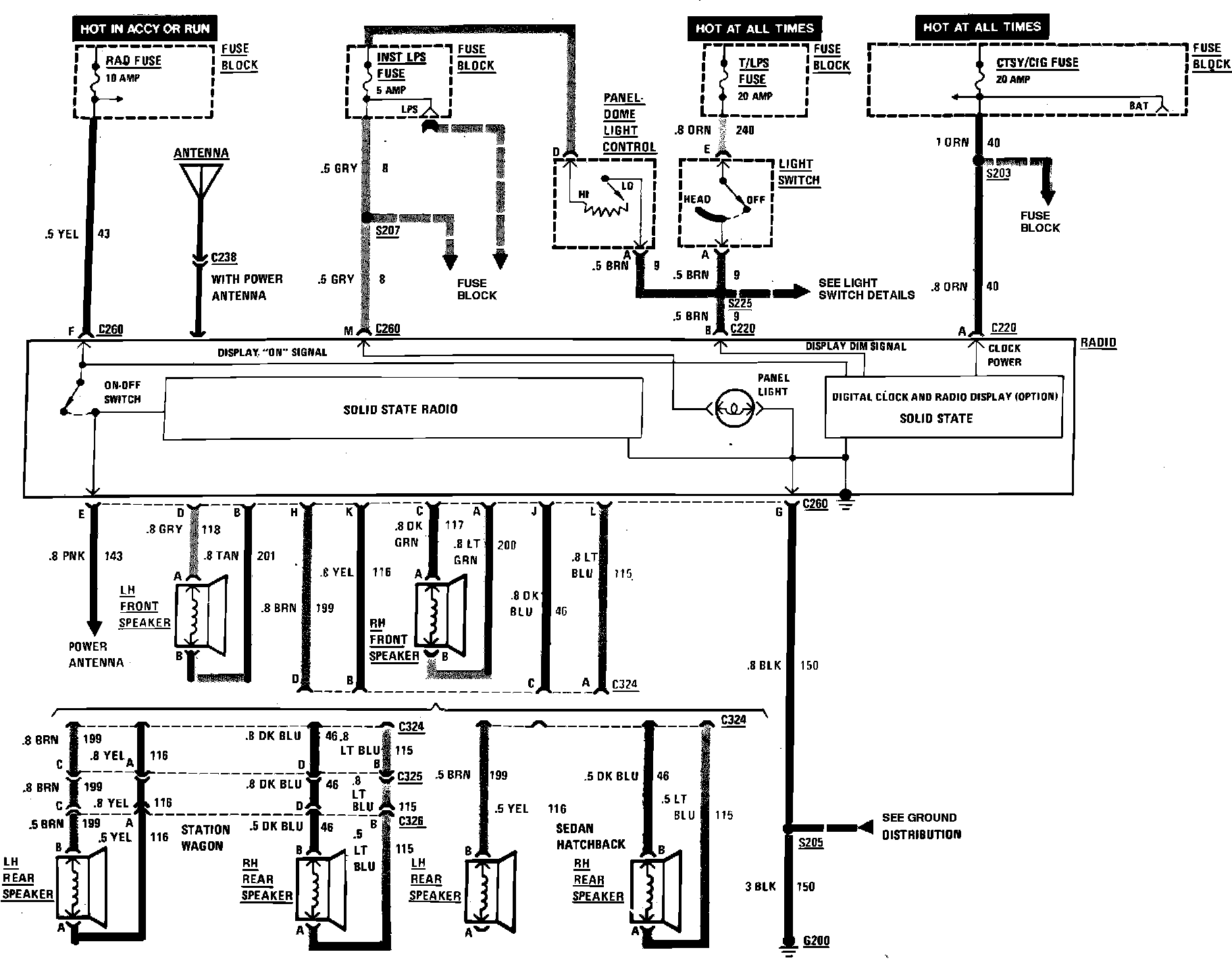

Clock & Radio Wiring Circuit:
