With Throttle Body Injection (TBI)
With Throttle Body Injection (TBI)

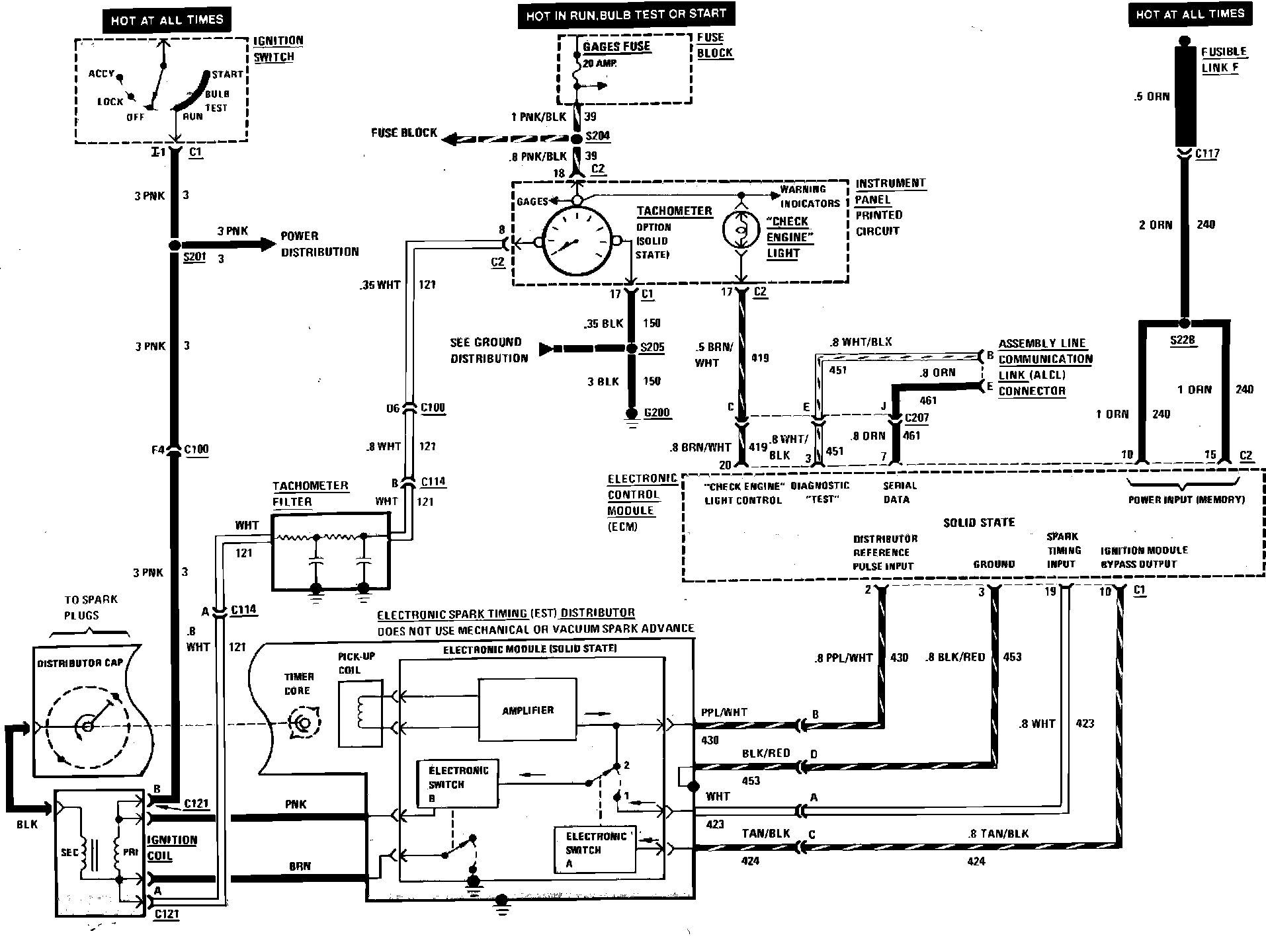

Throttle Body Injection (Check Engine Light & Ignition Wiring Circuit:
