Body - Revised Underbody Dimensions

85olds3

SUBJECT UNDERBODY DIMENSIONS NUMBER: 85-T-12


DATE: Jan.. 30,1985

MODELS/YEARS 1985 NINETY-EIGHT
SECTION: 10

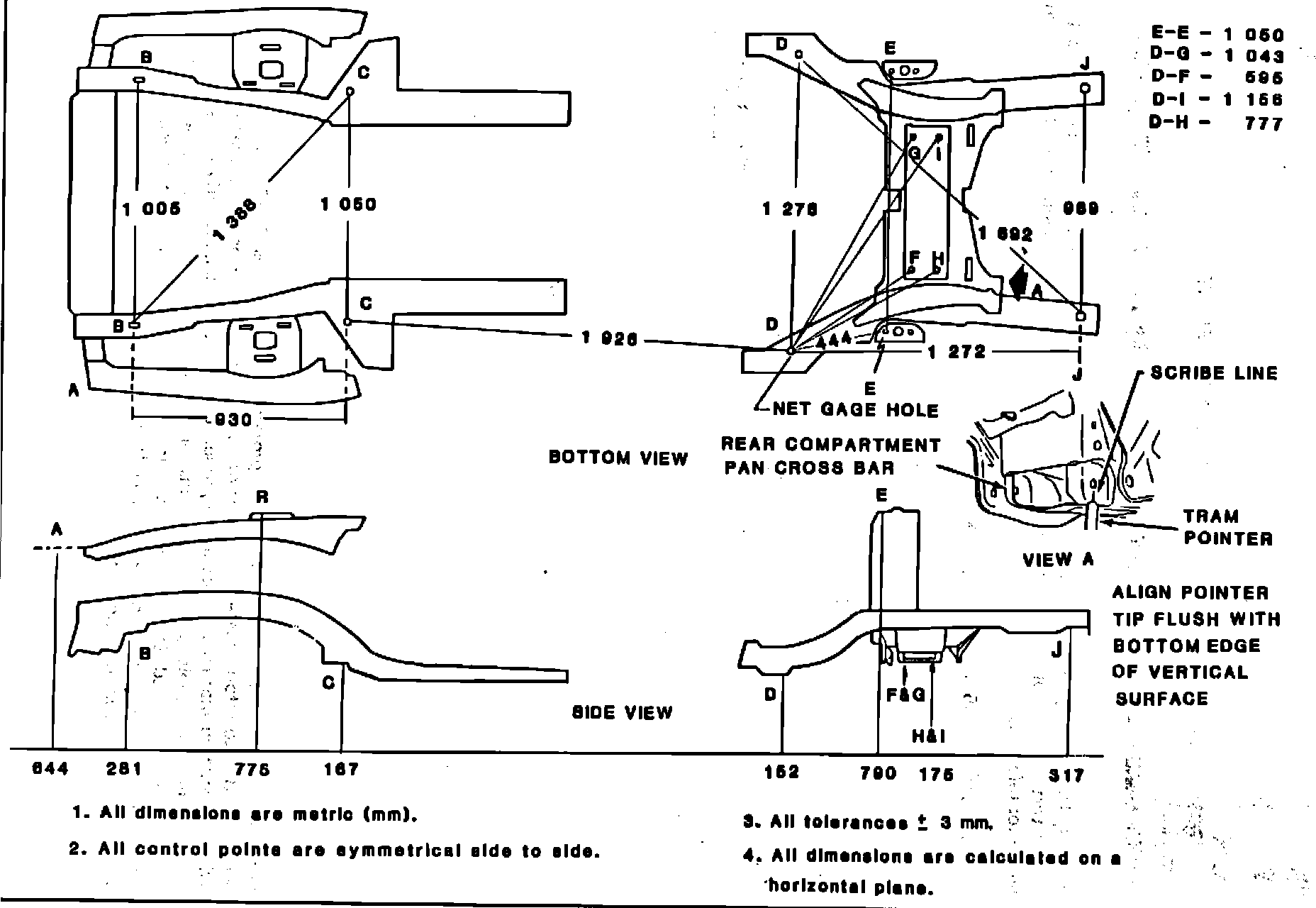

FIGURE 3-1 - UNDERBODY HORIZONTAL AND VERTICAL DIMENSIONS:

FIGURE 3-3 - ENGINE COMPARTMENT HORIZONTAL DIMENSIONS:

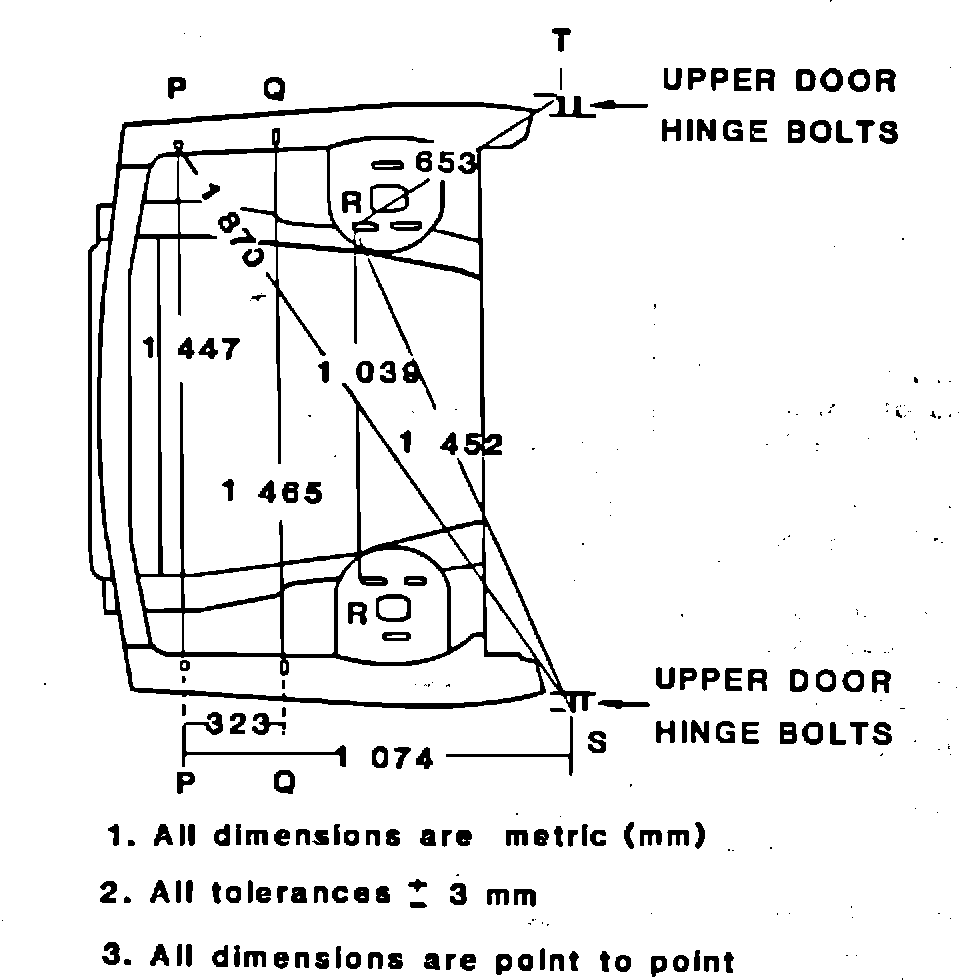

FIGURE 3-4 - HORIZONTAL AND VERTICAL DIMENSION LOCATION:

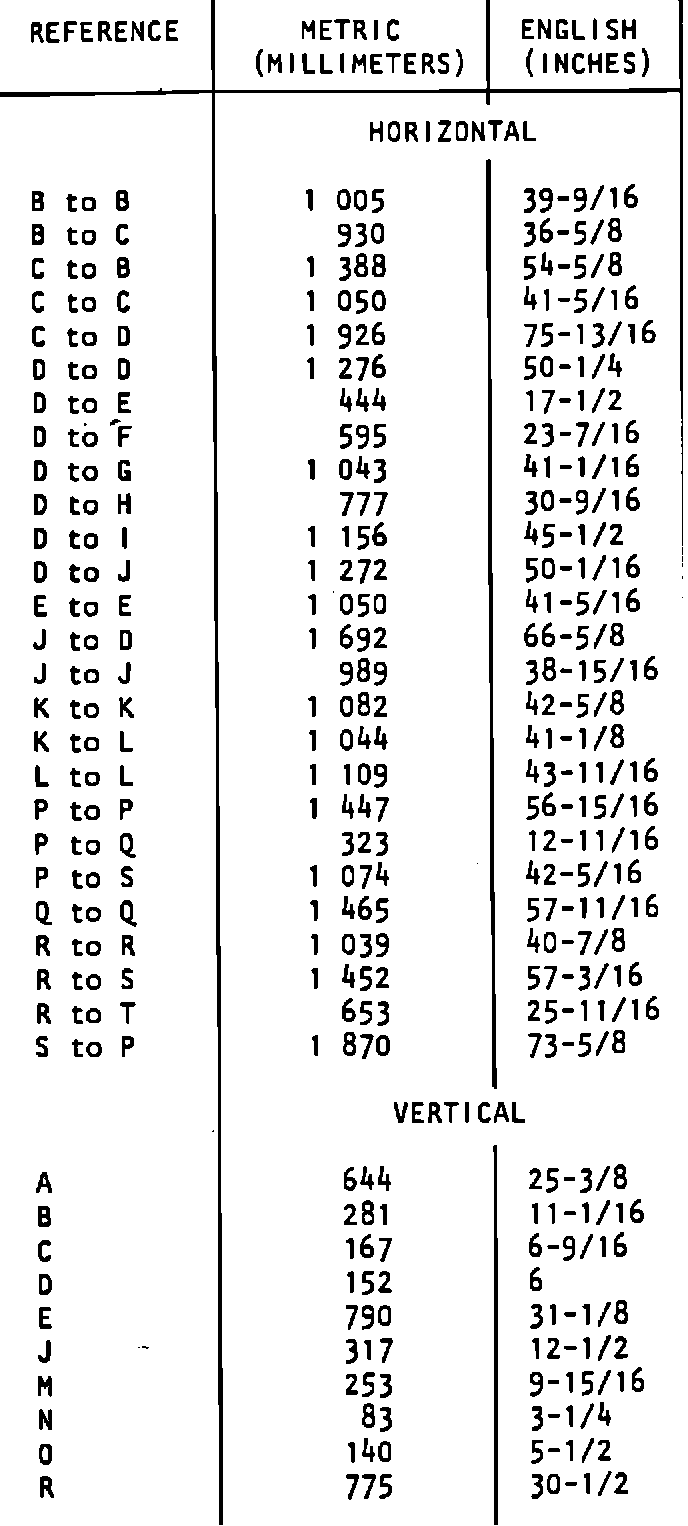

FIGURE 3-5 - METRIC TO ENGLISH DIMENSION CONVERSION CHART:

Section 3, Underbody, of the 1985 C Style Body Service Manual is being revised to add the following vertical and horizontal dimensions. The appropriate updated figures from Section 3 are provided for reference.

Please update your 1985 C Style Body Service Manual accordingly.

Horizontal Vertical

C to B R
J to D S to P
