Oldsmobile
>>
1985
>>
Delta 88 V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
License Plate Lamp
>>
2 Door
2 Door

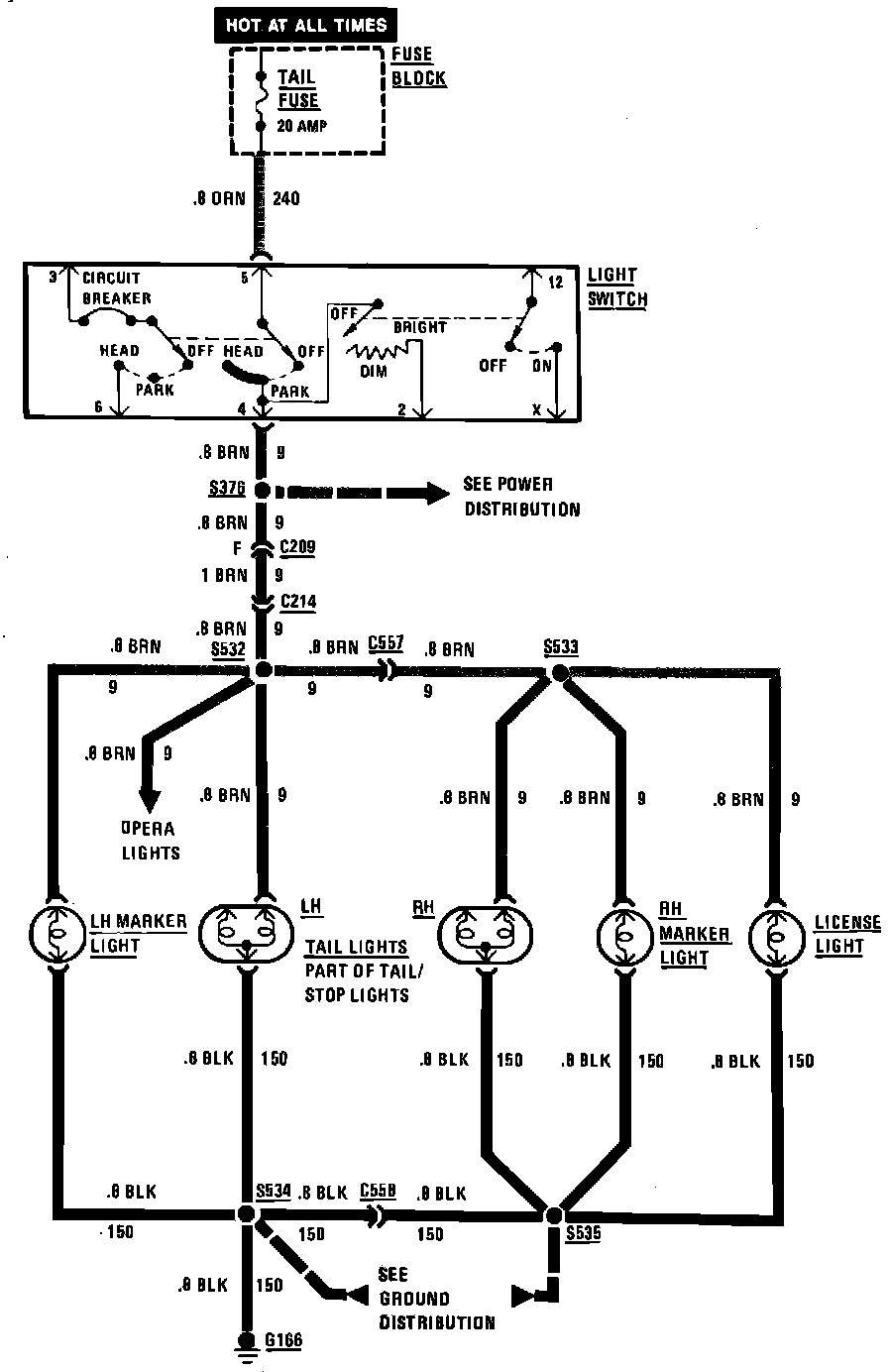

License, Rear Marker & Tail Lamp Wiring Circuit:
