Cutlass Supreme V8-307 5.0L VIN 9 4-bbl HP
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

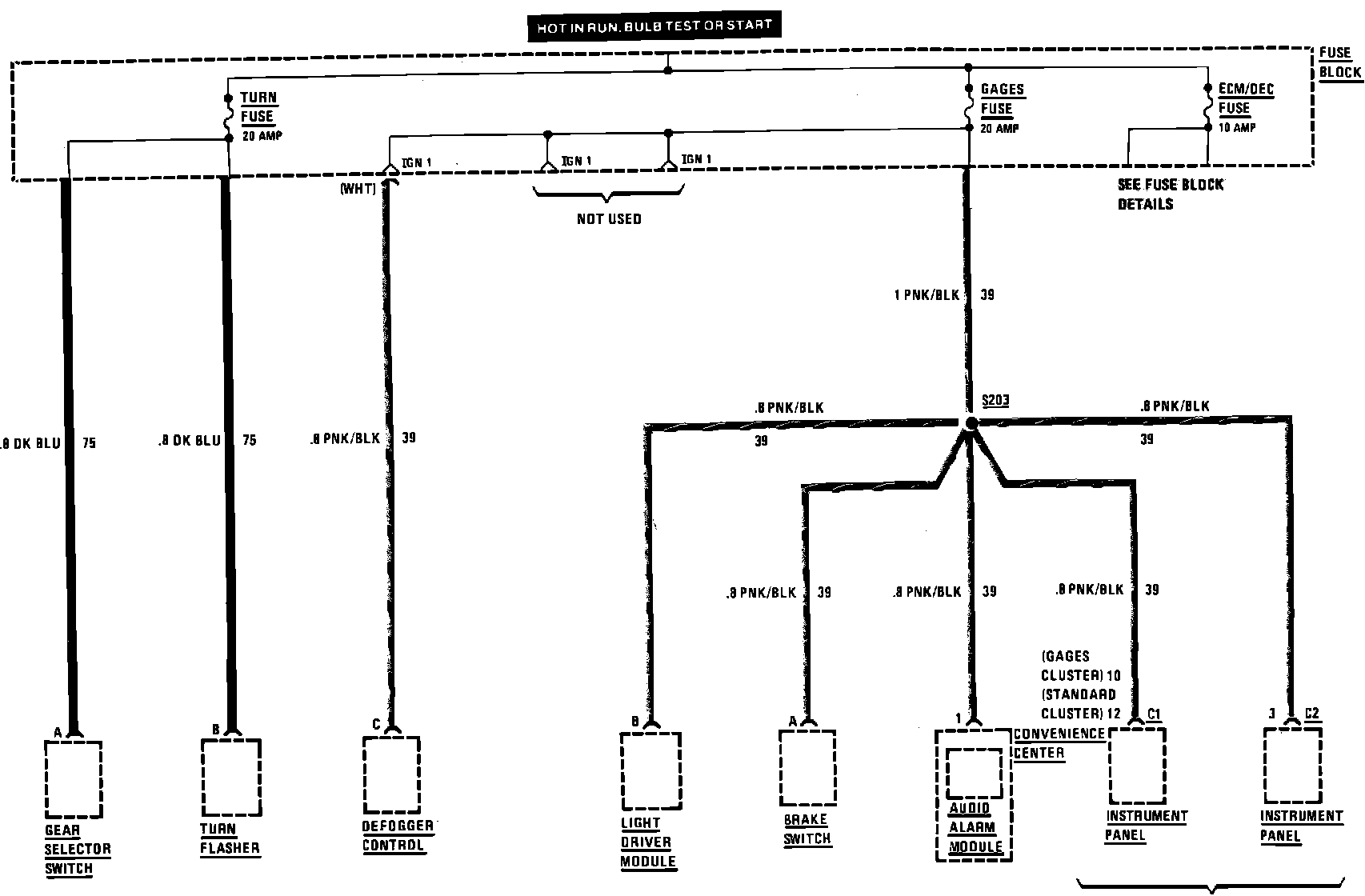

Gages Fuse And Turn Fuse Wiring Diagram:
