Cutlass Ciera V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Coolant Fan Switch

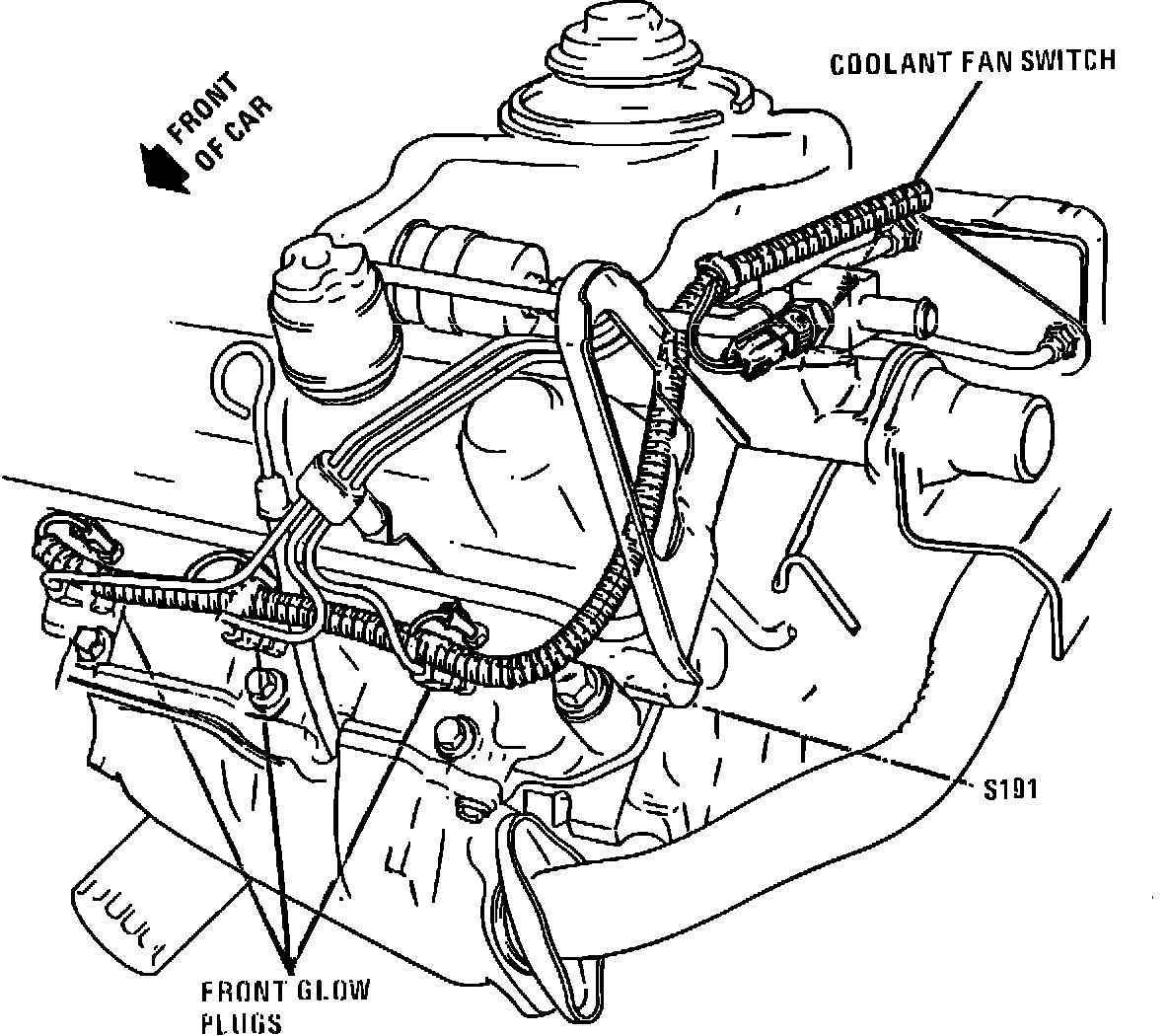

Coolant Fan Switch
Front Of Engine.:
Top LH Side Of Engine Above Coolant Outlet
Applicable to: 1984-85 Cutlass Ciera w/Diesel
