Home >> Oldsmobile >> 1985 >> Cutlass Ciera L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Wiring Circuit >> Part 2 of 5

Part 2 of 5

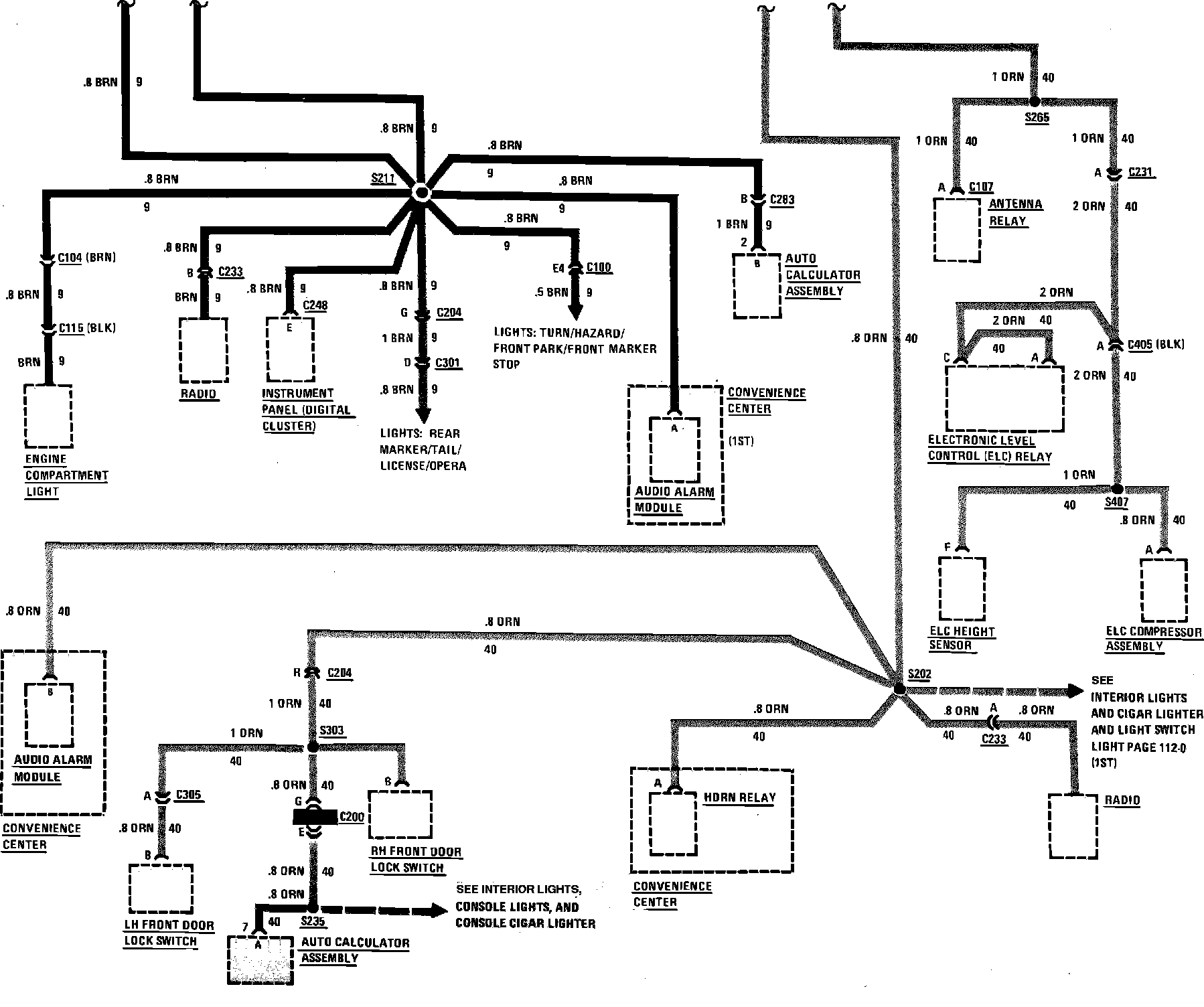

Fig. 218 Power Distribution (Part 2 of 5):
