A/T - 3rd-2nd Gear Downshift Bump
SUBJECT 3-2 DOWNSHIFT BUMP NUMBER: 85-T-42DATE: October 10, 1985
MODELS/YEARS 1985 CUTLASS CIERA & NINETY-EIGHT
WITH 3.8L V-6 ENGINE & 440-T4 TRANSAXLE SECTION: 7A

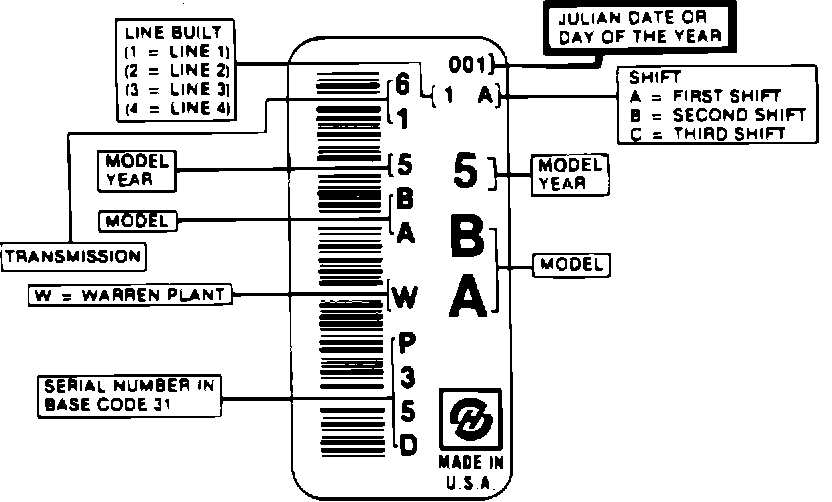

FIGURE 1 - THM 440-T4 TRANSAXLE I.D. NAMEPLATE:
Some 1985 THM 440-T4 "BA" and "BC" model transaxles (refer to Figure 1), may exhibit a 3-2 downshift bump. The condition may be most prevalent during a part-throttle downshift with the air conditioner operating..
When servicing any 1985 THM 440-T4 "BA" or "BC" model for a 3-2 downshift bump, order and install service package part number 8646953.
Service package part number 8646953 contains one each of the following:
3-2 Control Valve Spring Instruction Sheet
FIGURE 2 - CONTROL VALVE ASSEMBLY SHOWING 3-2 VALVE TRAIN:
Refer to Figure 2 of this bulletin and the appropriate chassis service manual for proper installation procedures.
NOTICE: This correction does not apply to 1985-1/2 440-T4 models or to vehicles equipped with 3.0L engines. Refer to chassis service manual 440-T4 diagnosis for shift conditions on other than "BA" and "BC" models.
1985 3.8L V-6 ENGINE ONLY
DO NOT USE WITH 3.0L OR 1985-1/2 MODELS
