Fuel - Pump & Sender Identification & Application
85olds1SUBJECT FUEL PUMP AND SENDER IDENTIFICATION NUMBER: 85-T-51
AND APPLICATION
DATE: Nov.. 8, 1985
MODELS/YEARS 1984-85 CUTLASS CIERA & 1985 98 WITH
3.8L MPFI ENGINE (VIN CODE 3) & SECTION: 6C
STANDARD INSTRUMENT CLUSTER
When making a service repair on one of the above subject vehicles, you may find one of two fuel pump and sender configurations. To help you determine the correct part number should a parts replacement be required, refer to the illustrations:
NINETY-EIGHT CONFIGURATIONS

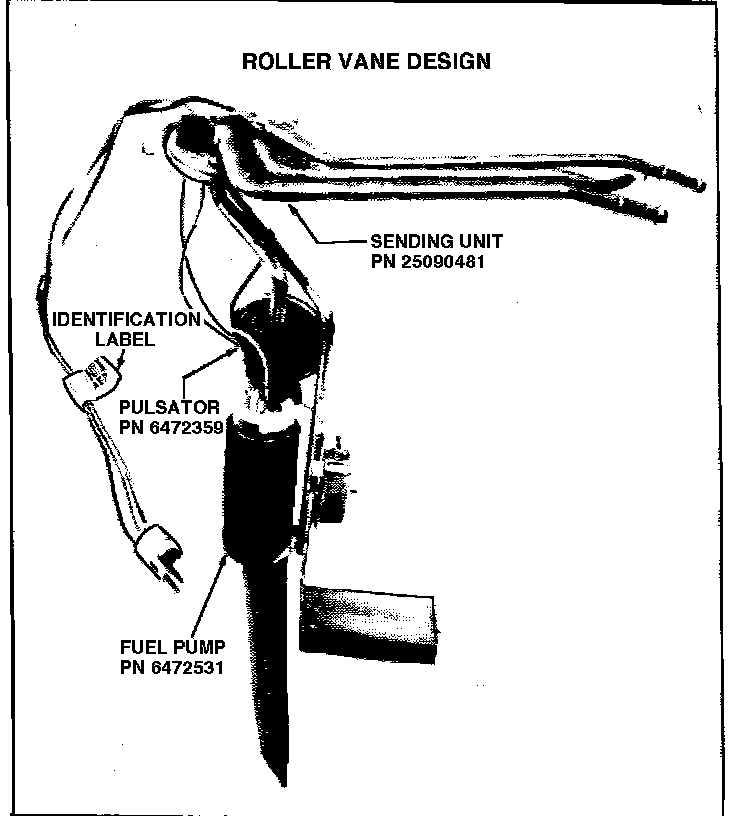

The components of this assembly can be replaced individually. This design can be identified prior to removal from the tank if the identification label is not a CET.

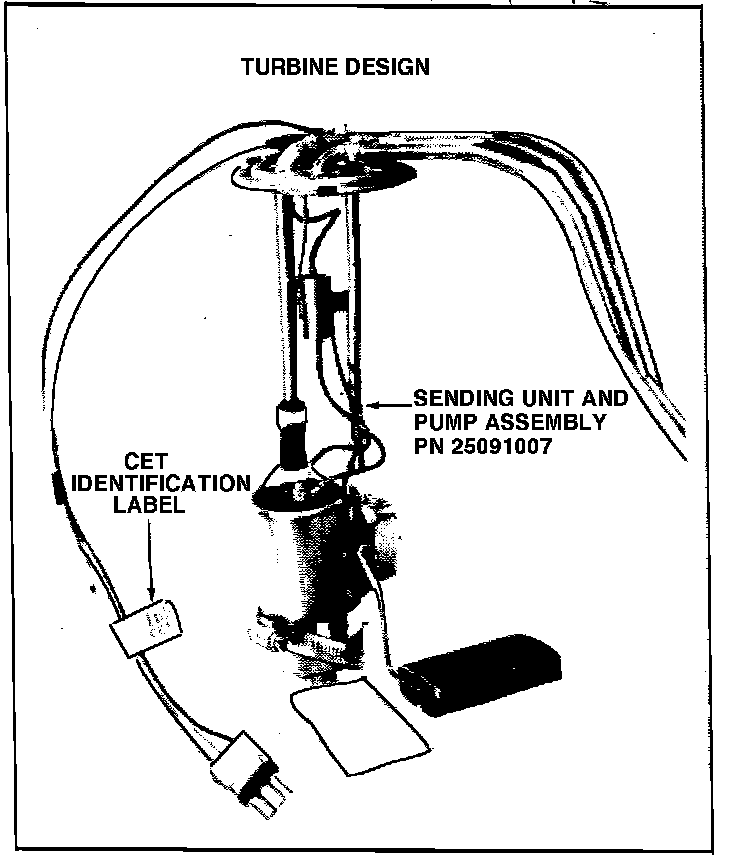

This design fuel pump and sender must be replaced as an assembly. The fuel pump and sender cannot be ordered separately. It can be identified prior to removal from the tank by a CET identification label.
CUTLASS CIERA AND WAGON CONFIGURATIONS

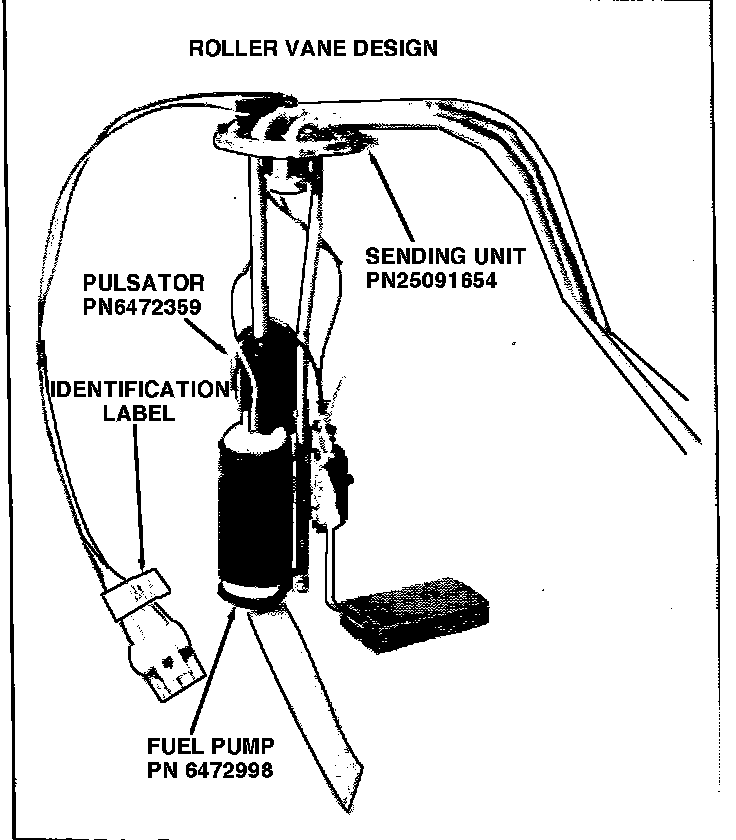

The components of this assembly can be replaced individually. This design can be identified prior to removal from the tank if the identification label is not an APA.

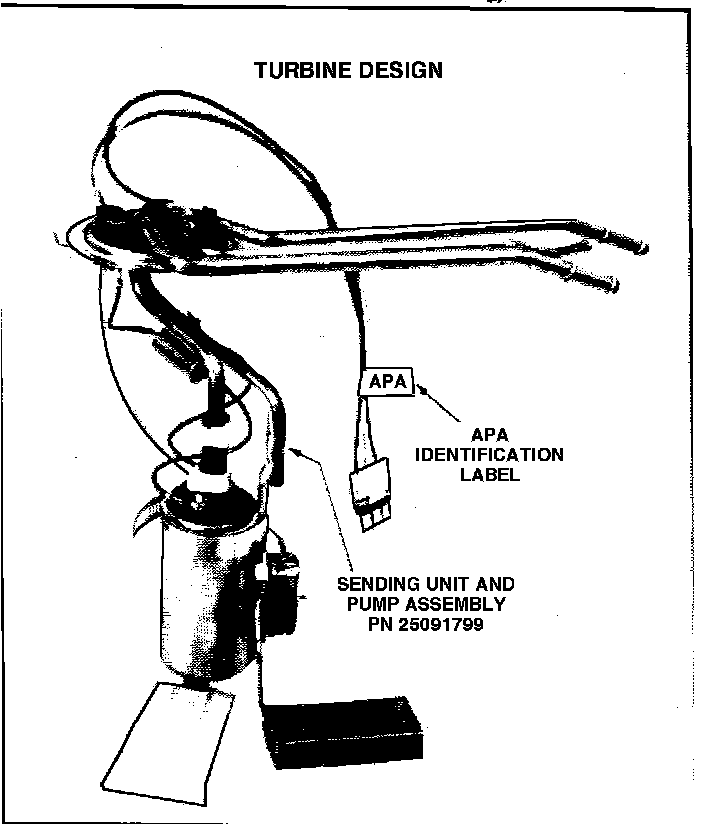

This design fuel pump and sender must be replaced as an assembly. The fuel pump and sender cannot be ordered separately. It can be identified prior to removal from the tank by an APA identification label.
