Oldsmobile
>>
1985
>>
Cutlass Ciera Cruiser V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Tailgate Release
Tailgate Release

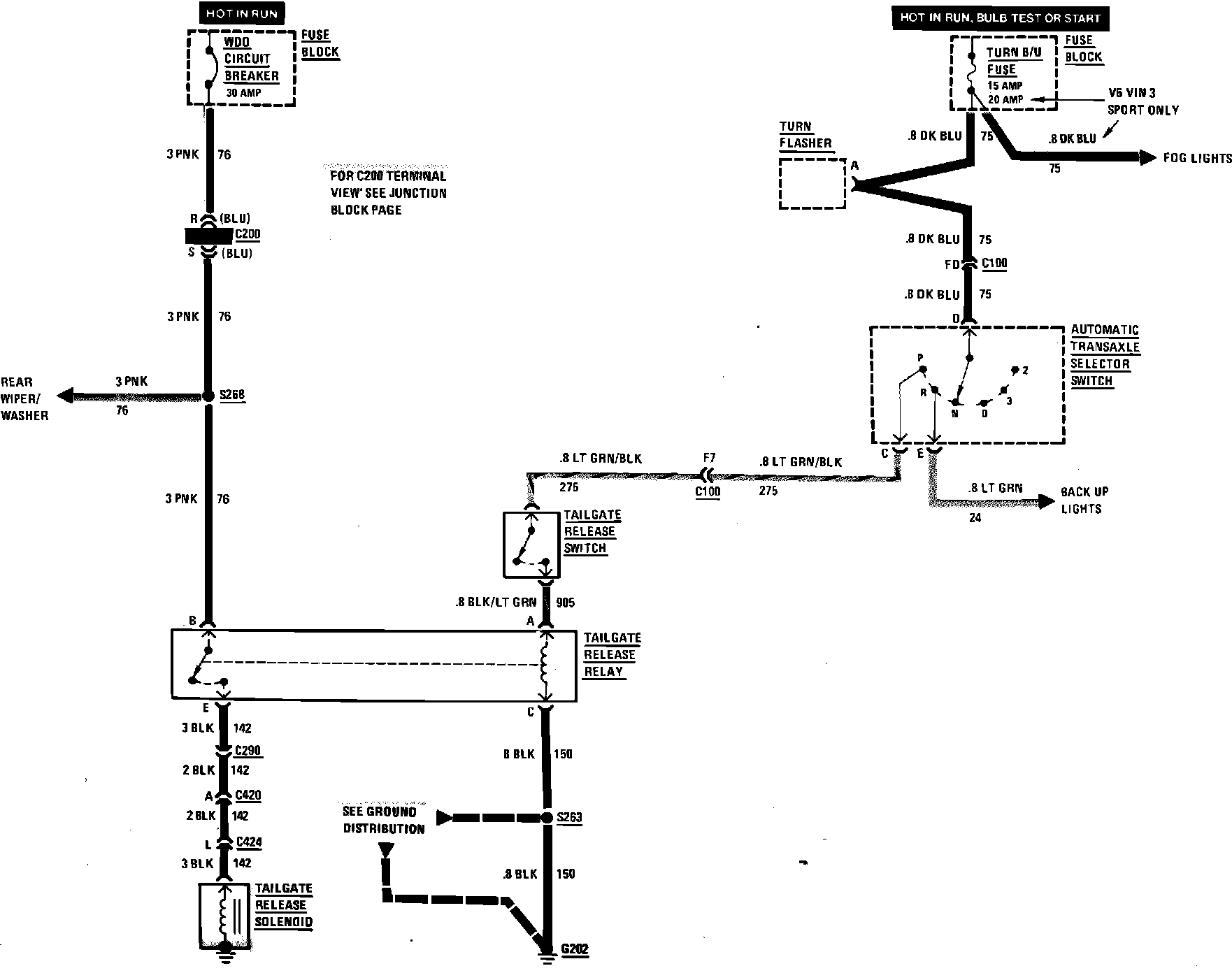

Fig. 263 Tailgate Release Wiring Circuit:
