Home
>>
Oldsmobile
>>
1985
>>
Custom Cruiser RWD V8-307 5.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
With Pulse
With Pulse

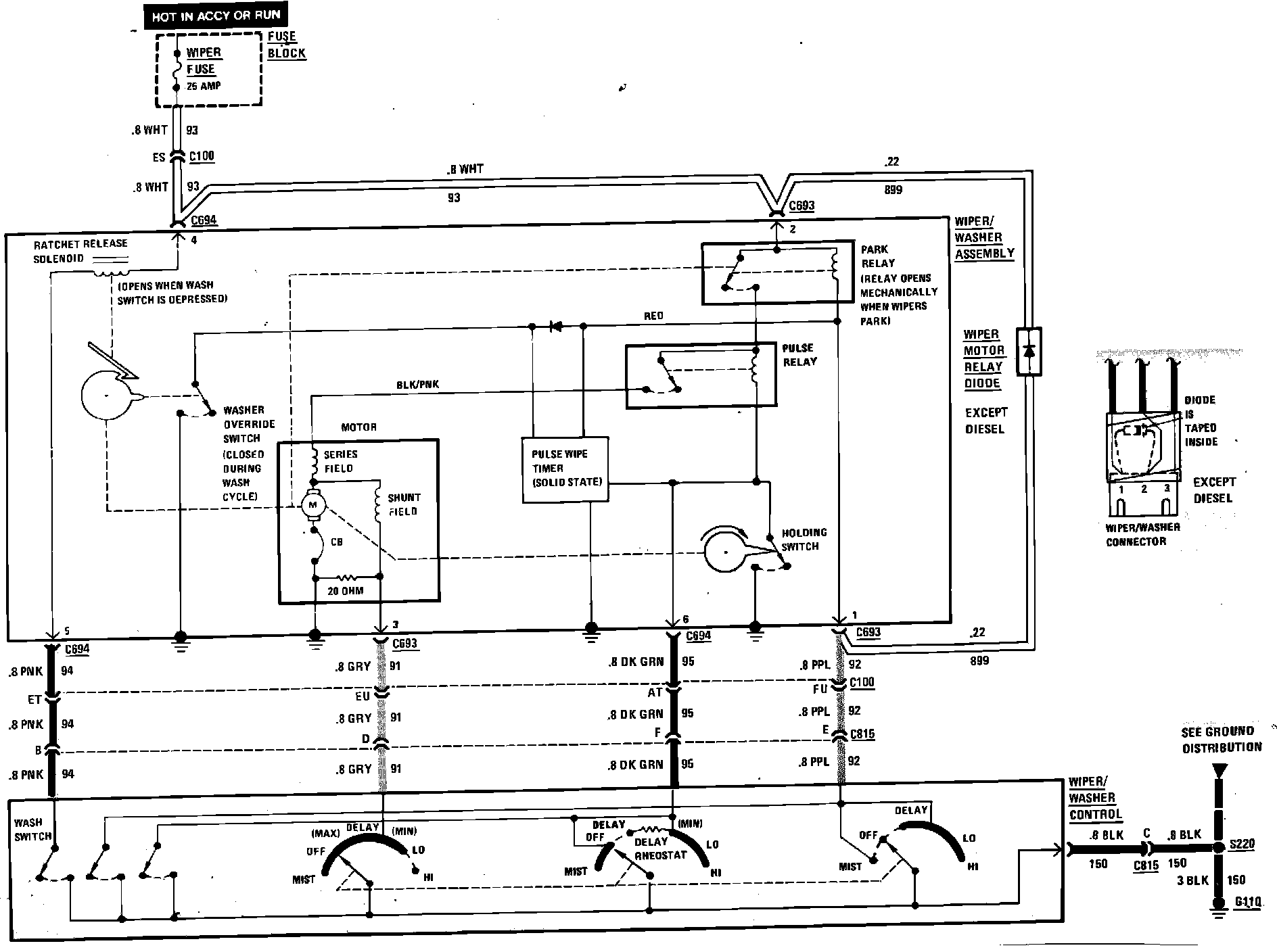

Wiper/Washer (W/Pulse) Wiring Circuit:
