Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

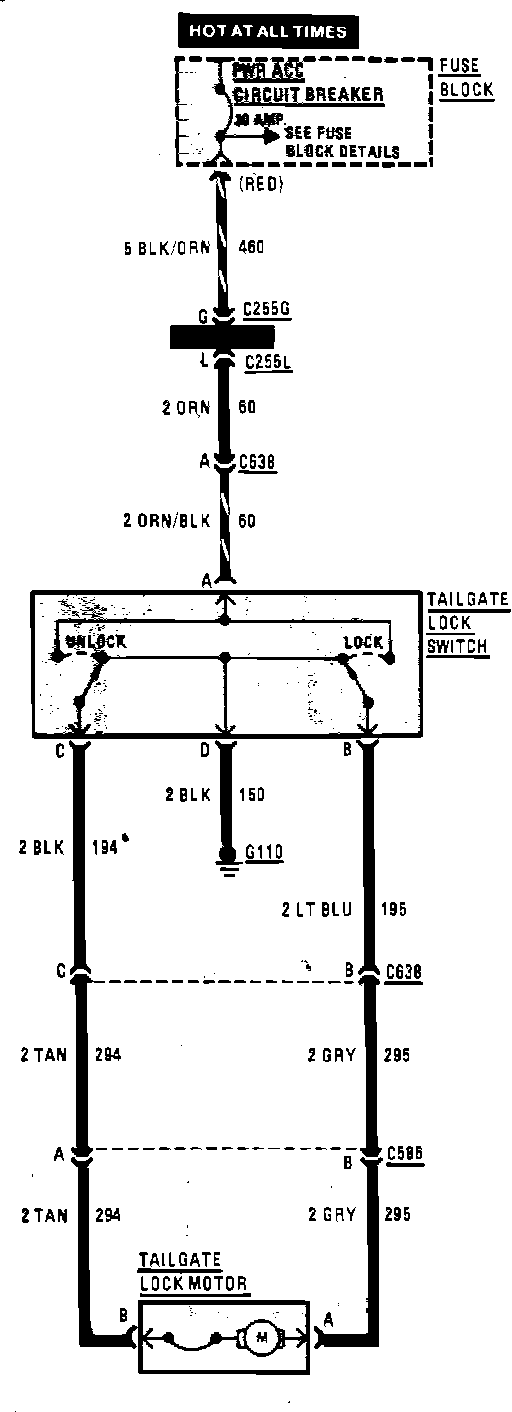

Tailgate Power Lock Wiring Circuit:
