Oldsmobile
>>
1985
>>
Custom Cruiser RWD V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Parking Lamp
Parking Lamp

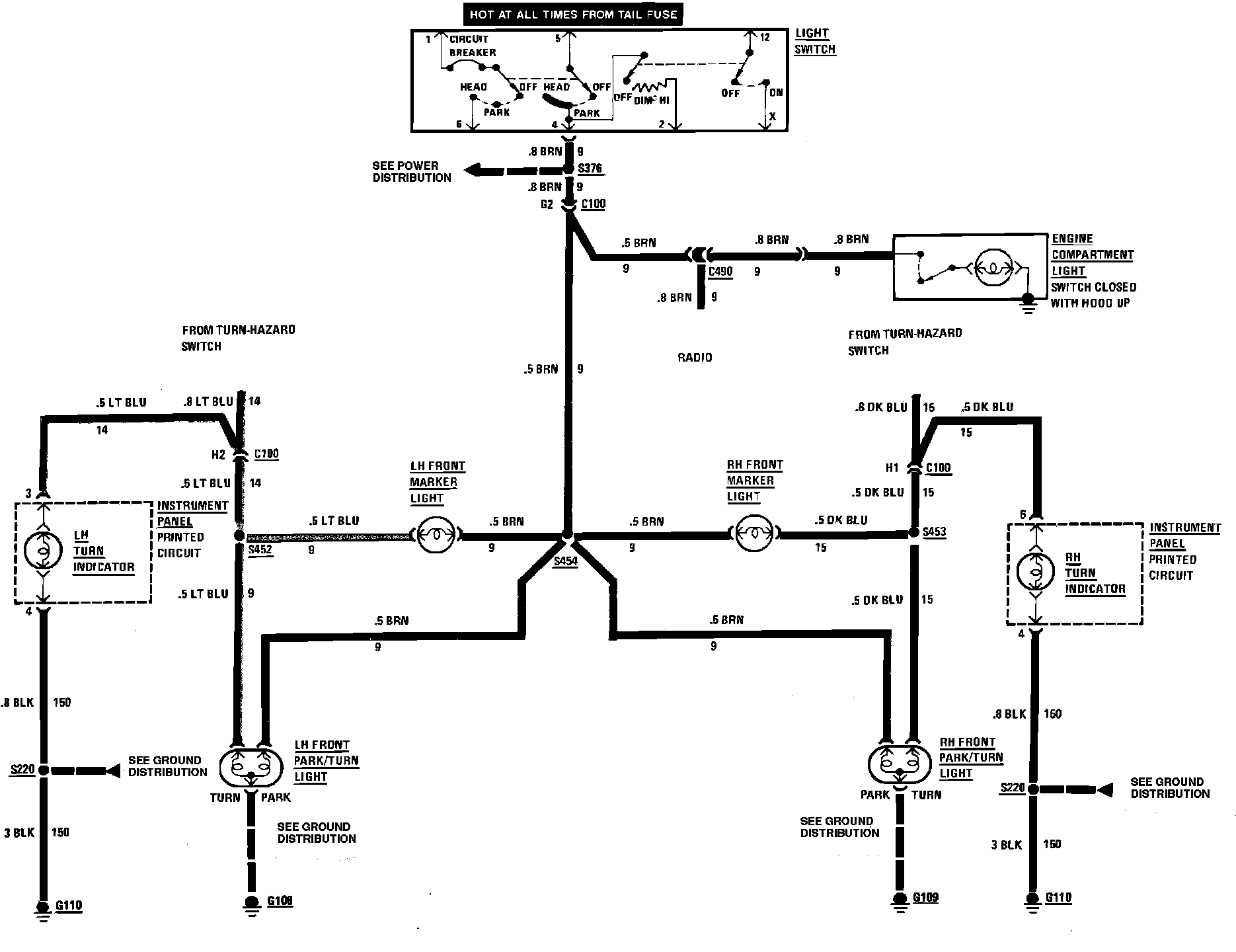

Front Marker, Front Park, Engine compartment & Turn Lamp Wiring Circuit:
