Home
>>
Oldsmobile
>>
1985
>>
Custom Cruiser RWD V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Map Light
>>
Dome Lamp
>>
With Illuminated Entry
With Illuminated Entry

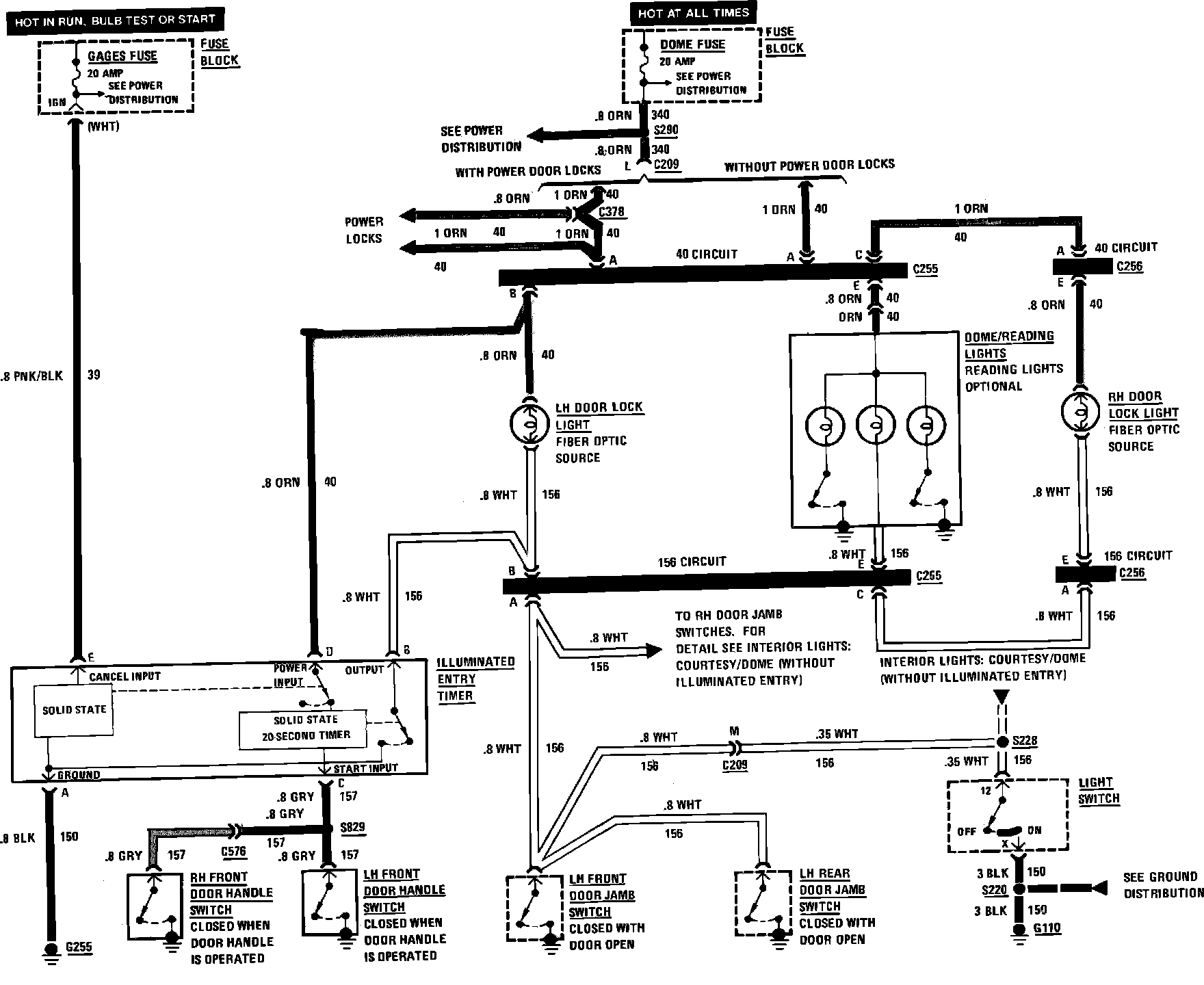

Interior Lights Wiring Circuit (Dome Lamp), With Illuminated Entry:
