Engine Controls - Revised Chart C4-A, Ignition Wiring
SUBJECT REVISED C(3)I IGNITION SYSTEM CHECK CHART NUMBER: 85-T-29C4-A WIRING DIAGRAM
DATE: June 3, 1985
MODELS/YEARS 1985 CALAIS WITH 3.0L (VIN CODE L)
V-6 ENGINE SECTION: 6E

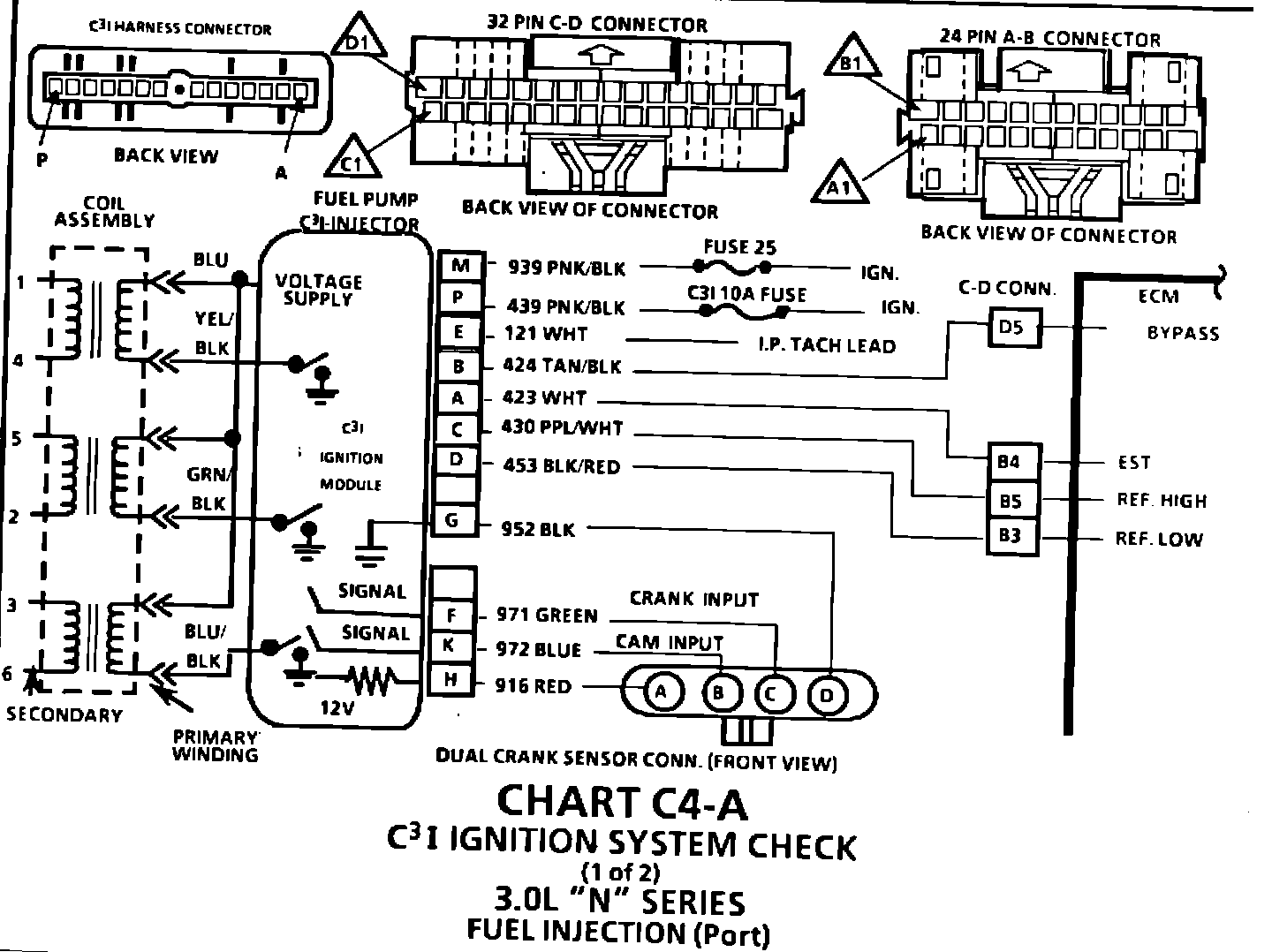

FIGURE 1:
The C(3)I Ignition System Check Chart C4-A wiring diagram has been revised to include additional wire coding information. See Figure 1.. Please update page 6E3-220 of your 1985 Firenza, Calais, Cutlass Ciera and Ninety-Eight Chassis Service Manual, Volume II with this information.
