Engine Control Module
Engine Control Module

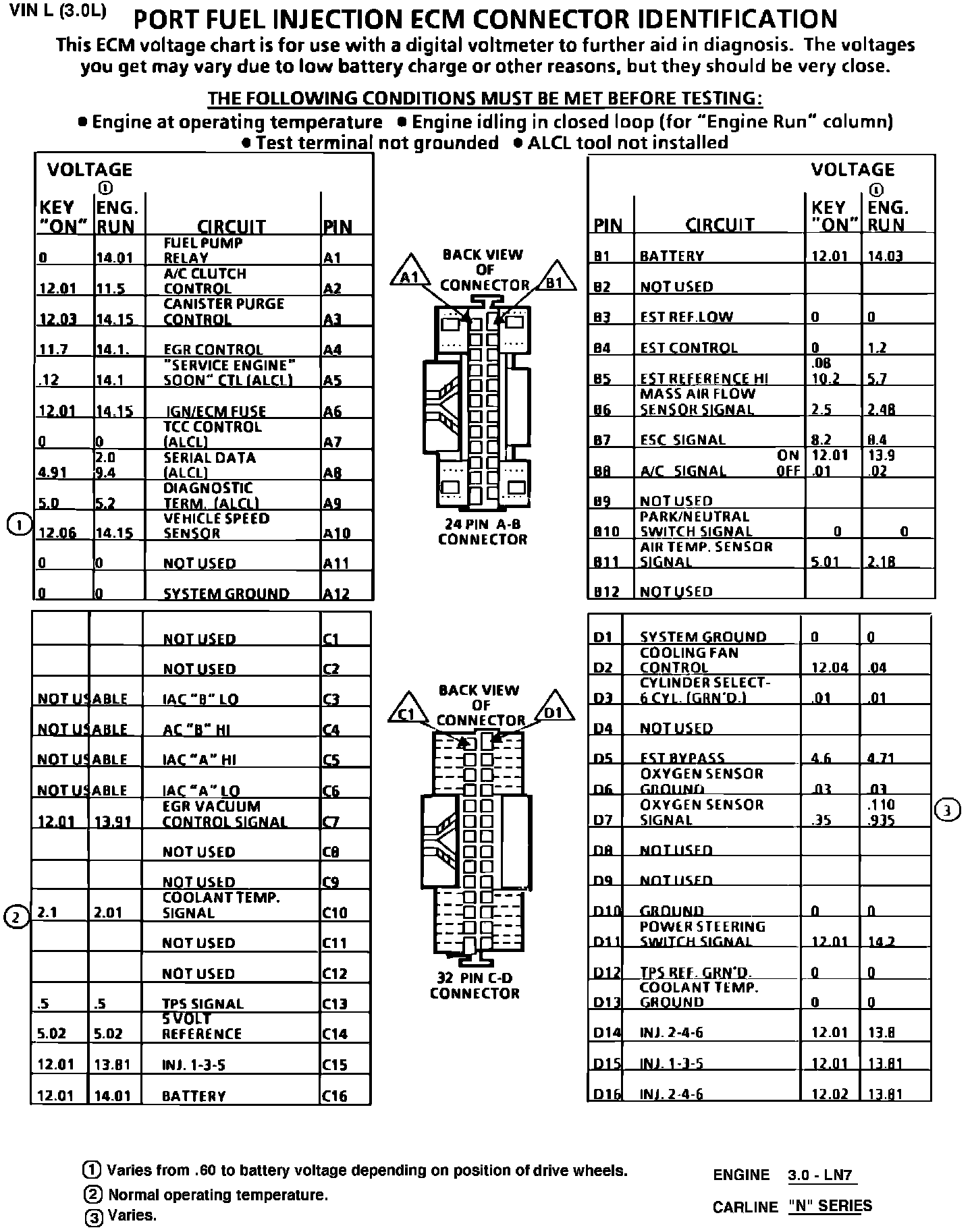

Fig. 030 ECM Connector Terminal Identification & Voltage Specifications:
