A/T - Case Cover Oil Slot

85olds3

SUBJECT CASE COVER OIL SLOT ON 125C TRANSAXLES NUMBER: 85-T-20


DATE: March 28, 1985

MODELS/YEARS 1985 FIRENZA, CALAIS & CUTLASS CIERA
SECTION: 7A

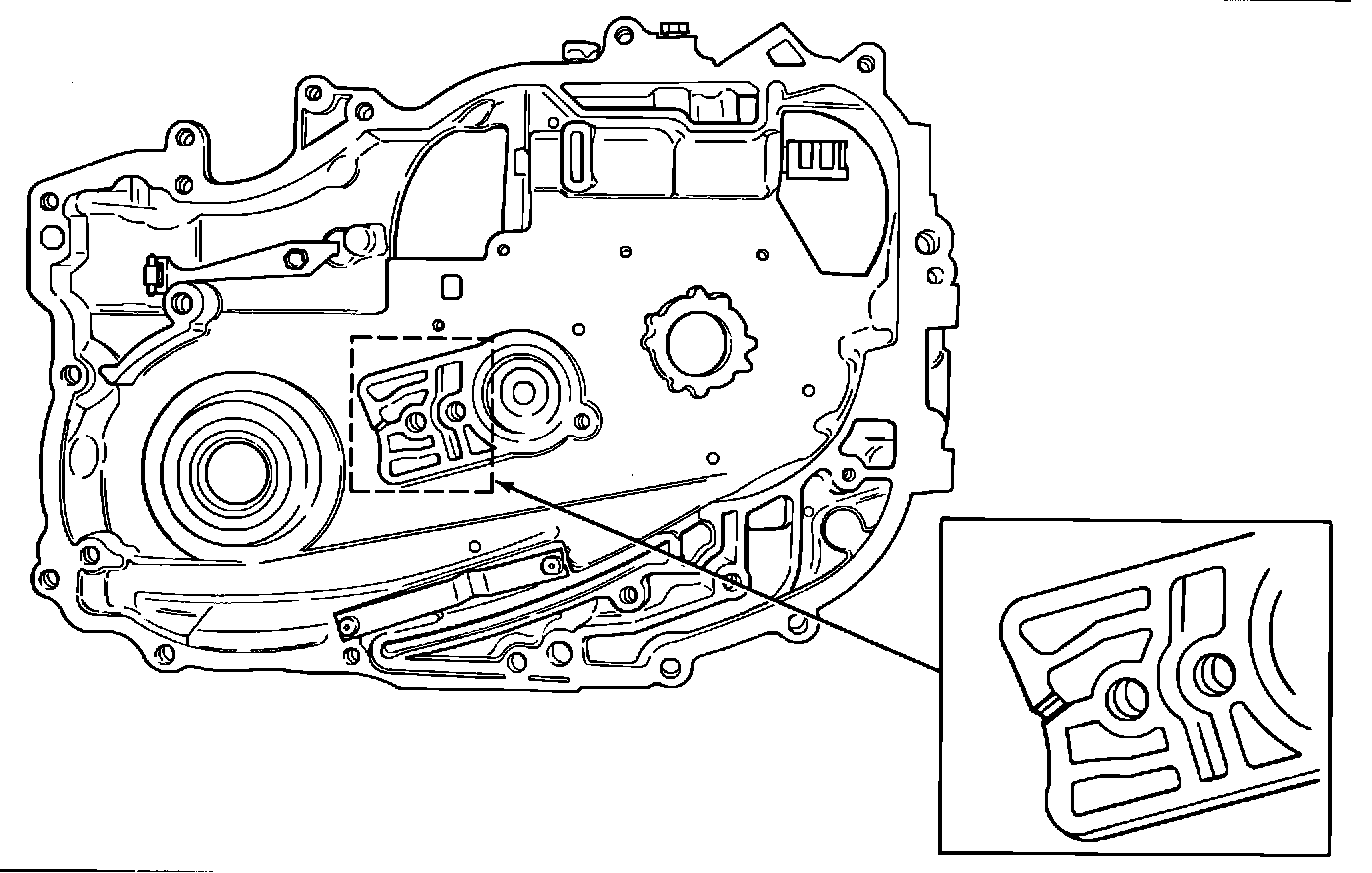

FIGURE 1:

Beginning approximately in April of 1984, a slot was added to the case cover of the THM 125C transaxle. See Figure 1. The slot was added to the "drive feed" oil circuit to allow transmission fluid to spray onto the drive link (chain) to provide additional lubrication. The slot is a "V" shaped groove cut into the case cover in the area and direction as shown in Figure 1.. The slot is intentional and should not be considered as a damaged case cover.
