Parts Ordering

All requests must be made on dealership stationary to the applicable company:

Norris Industries, Inc.
Automotive Trim Division All Models except Delta 88 and Ninety-Eight
39600 Orchard Hill Place Novi, MI 48050 or

Thompson Industries
423 N. Mill Street 1985 Cutlass Supreme Models Only
Adel, GA 31620 or

Wire Wheel Cover
P.O. Box 522 1985 Ninety-Eight Models Only
Grenada, MS 38901 or

Thompson Industries
P.O. Box 119 1985 Delta 88 Models Only
Madison, FL 32340

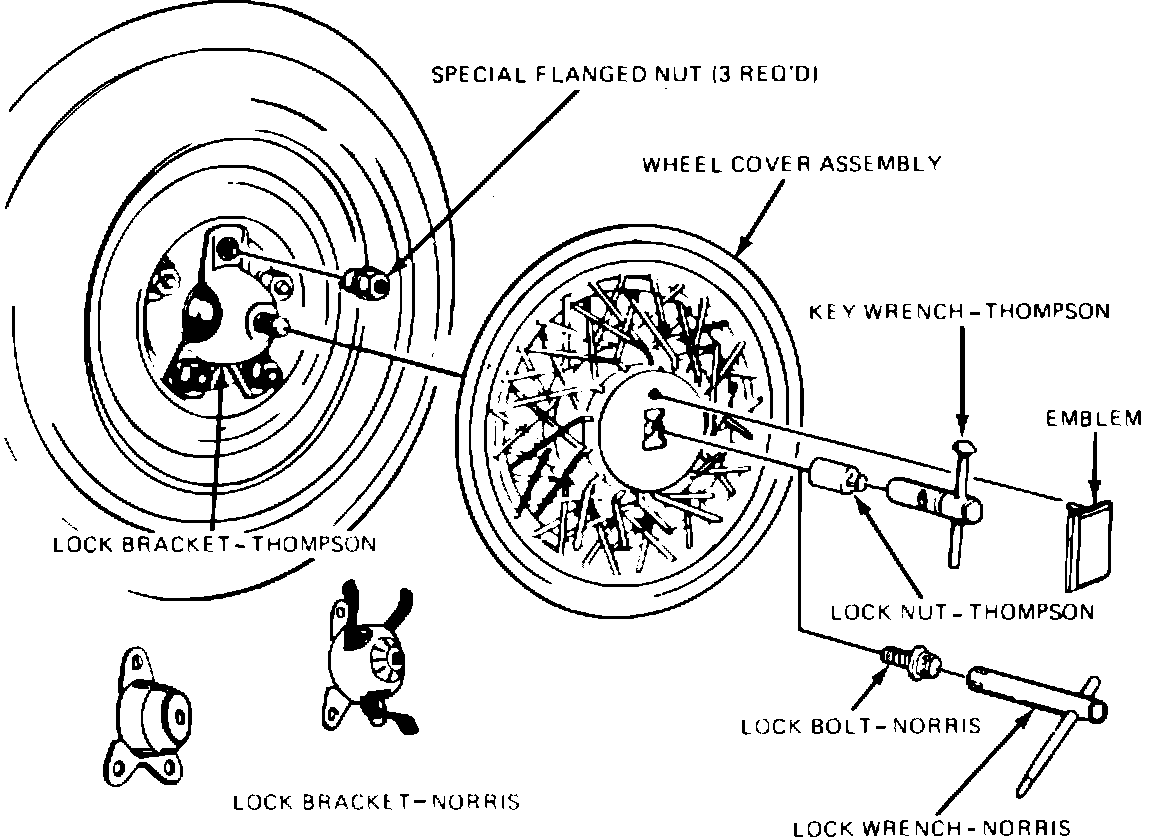

FIGURE 1:

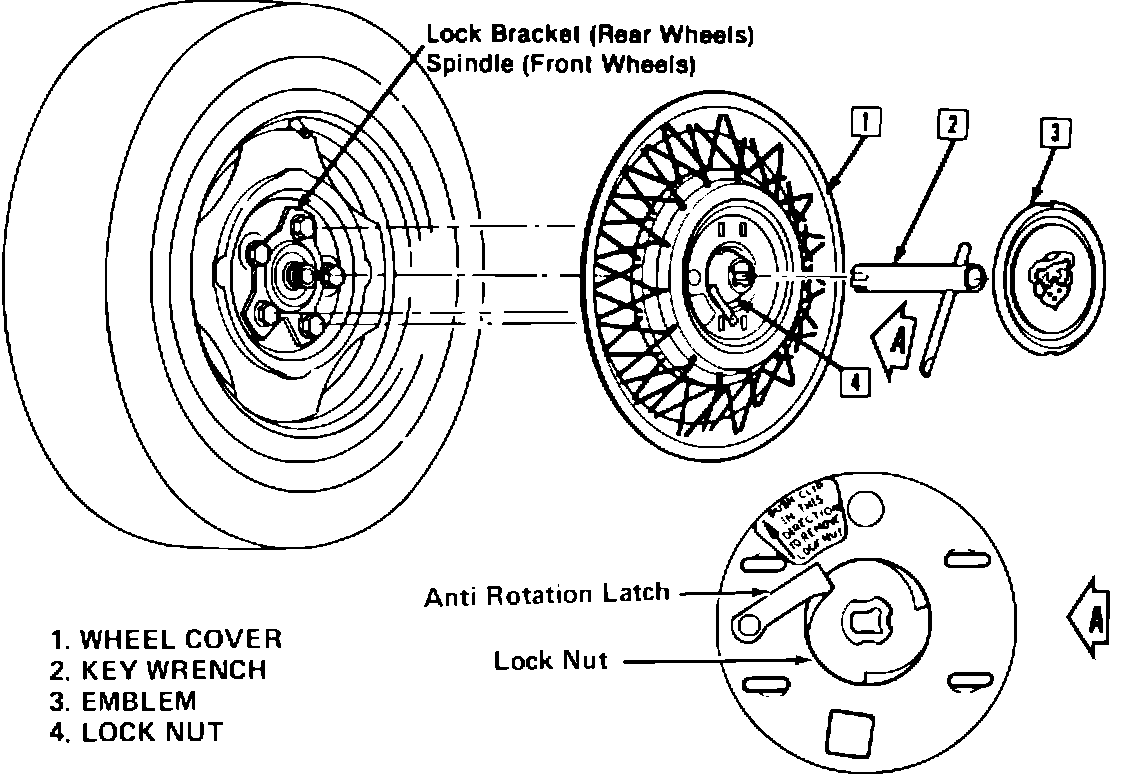

FIGURE 2:

Other missing or incorrect part(s) such as a locking wire wheel cover(s), lock bracket(s), medallion(s) and special lock nut(s) or bolt(s) are available through WDDGM. See Figure 1 for parts illstration of all models except the 1985 Ninety-Eight. See Figure 2 for the Ninety-Eight parts illustration.
LOCKING WIRE WHEEL COMPONENTS - All Except Ninety-Eight

Cover Asm. Emblem Lock Bracket
Model Norris ITT Norris ITT Norris ITT

Firenza 22529673 22520008 22515701
Calais 22522802 22527955 10029360
Cutlass Ciera
Std. Wheel 14070272 22520008 22526979
H.D. Wheel 14070272 22520008 22515623
Cutlass Supreme 22515281 22519903 22512339 22519904 14025642 22519905
Delta 88 22511787 22527866 22511788 22524160 14035642 22527867
Custom Cruiser 22511787 22511788 14080280
Toronado 22509520 22506015 01617759

LOCKING WIRE WHEEL COMPONENTS - Ninety-Eight

Cover Asm, Emblem Lock Bracket
Model Wire Wheel Cover Wire Wheel Cover Wire Wheel Cover

Ninety-Eight 22522741 22522016 22522026

In addition to individual components, a complete locking wire wheel package (Option N91) is available through WDDGM for the 1985 models. This package contains the following components:
Four (4) locking wire wheel covers, four (4) medallions, four (4) lock brackets, four (4) lock bolts, four (4) valve extensions, (12) lug nuts, one (1) key wrench, one (1) I.D./Registration Card and installation instructions. Listed below are the part numbers for this package:

WDDGM
Part Number Model

997097 Toronado
998957 Delta 88
998955 Custom Cruiser
998550 Cutlass Ciera H.D. Wheel
997785 Cutlass Ciera Std. Wheel
998569 Ninety-Eight
998693 Calais
997783 Firenza
997786 Cutlass Supreme
998694 Cutlass Supreme Brougham

When the vehicle is being made ready for delivery, the lock brackets are to be installed prior to installation of the wire wheel cover and medallions.

FIGURE 1:

1. Remove three (3) lug nuts from each wheel for lock bracket installation. Refer to Figure 1 for all models except Ninety-Eight.

FIGURE 2:

NOTE: 1985 Ninety-Eight front wheel covers are retained by the drive axles; therefore, they do not require lock brackets. Refer to Figure 2.
2. Place lock bracket on lug nut studs.

3. Install three (3) special lug nuts on each wheel to retain lock bracket and torque to specifications. LOOSE CONDITION OF LOCK BRACKET WILL BE NORMAL. WHEN LUG NUTS ARE SEATED, FRONT WHEEL STUDS WILL HAVE A RECESSED APPEARANCE, WHICH IS NORMAL.
4. Align valve notch in wire wheel cover with valve stem on wheel. Place cover on wheel by hand only. DO NOT USE A HAMMER TO INSTALL COVER.

5. Tighten lock nut or bolt by turning lock key wrench clockwise. This will secure the wire wheel cover.

FIGURE 2:

6. On Ninety-Eight models, move the anti-rotation latch over until it contacts lock nut. See Figure 2.
7. Snap in center medallion.

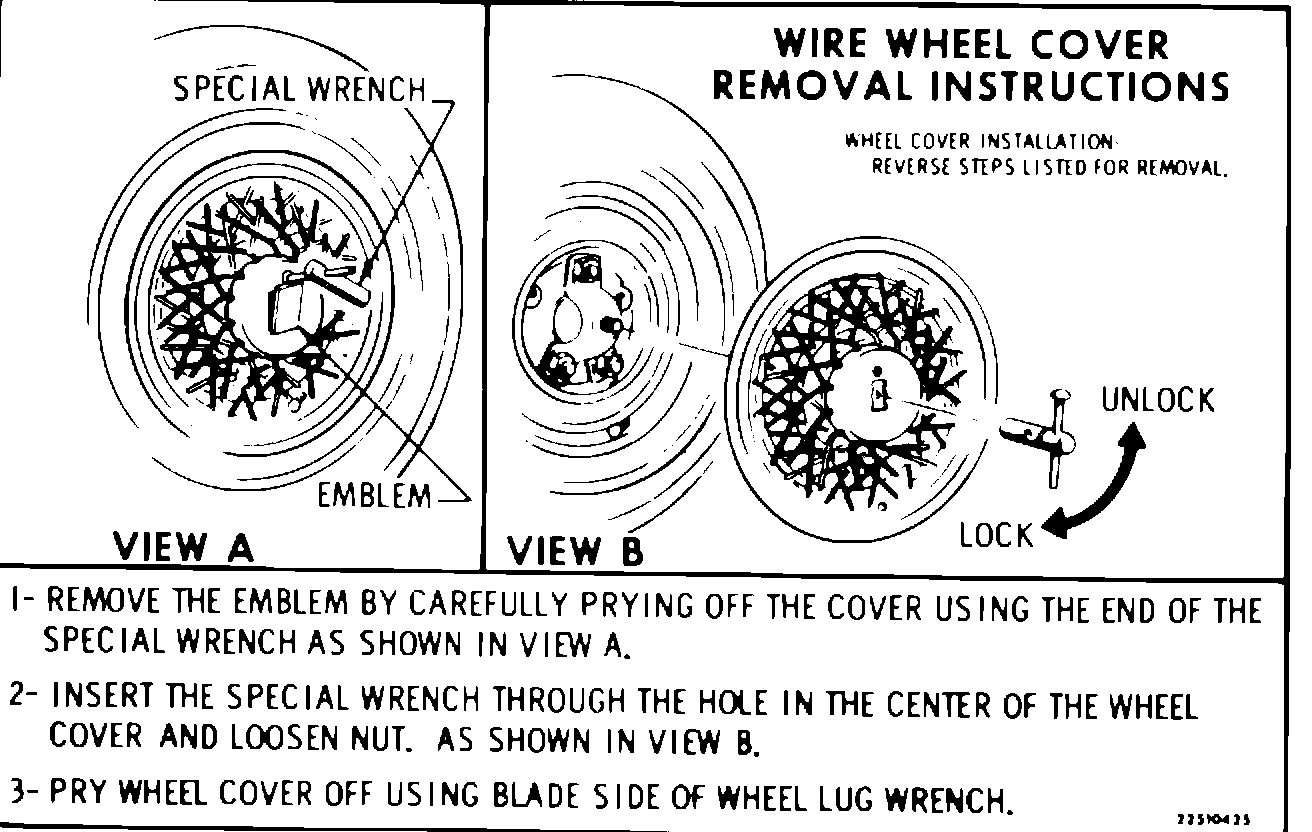

FIGURE 3:

8. Install the Wire Wheel Cover Removal Instruction label to underside of deck lid next to jacking instruction label. See Figure 3.
9. The lock key wrench is to be placed in the glove box along with the I.D./Registration Card.

The procedure for removal and installation is to be explained to the owner prior to delivery.
