Oldsmobile
>>
1985
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

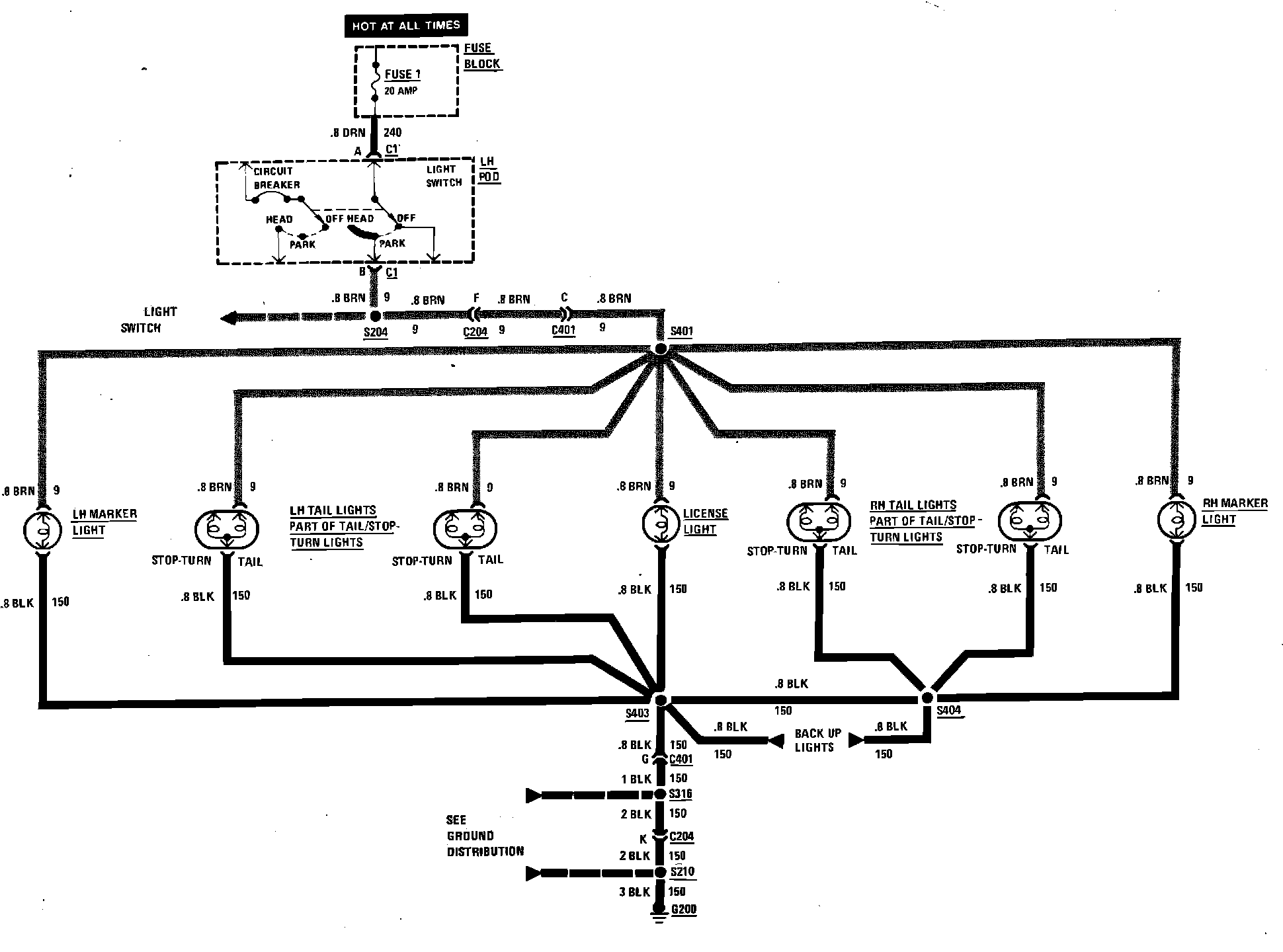

Rear License, Marker & Tail Lamp Wiring Circuit:
