Home
>>
Oldsmobile
>>
1985
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Diagrams
>>
Electrical Diagrams
>>
With Amplified Sound
With Amplified Sound

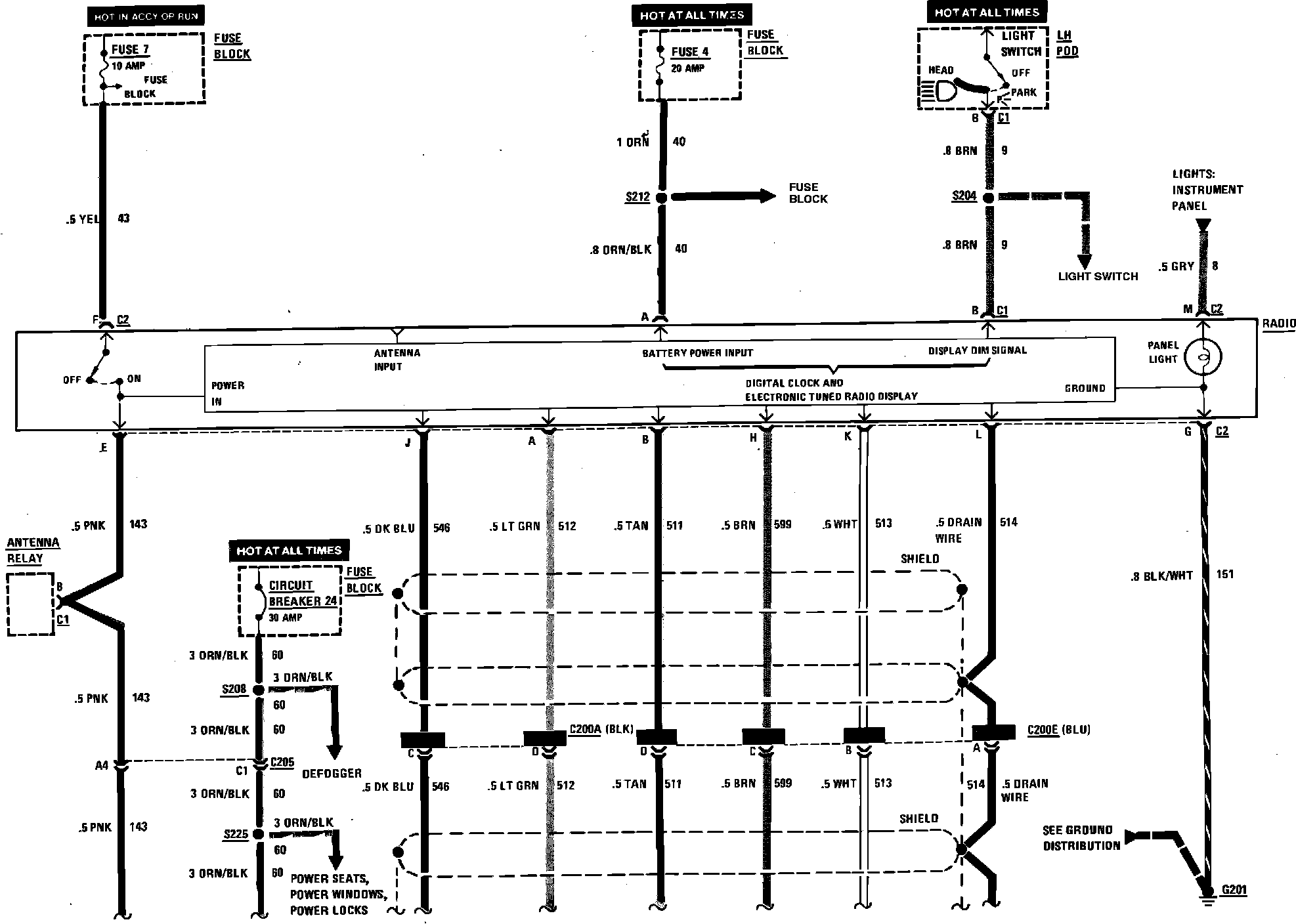

Radio & Clock Wiring Circuit (With Amplified Sound):

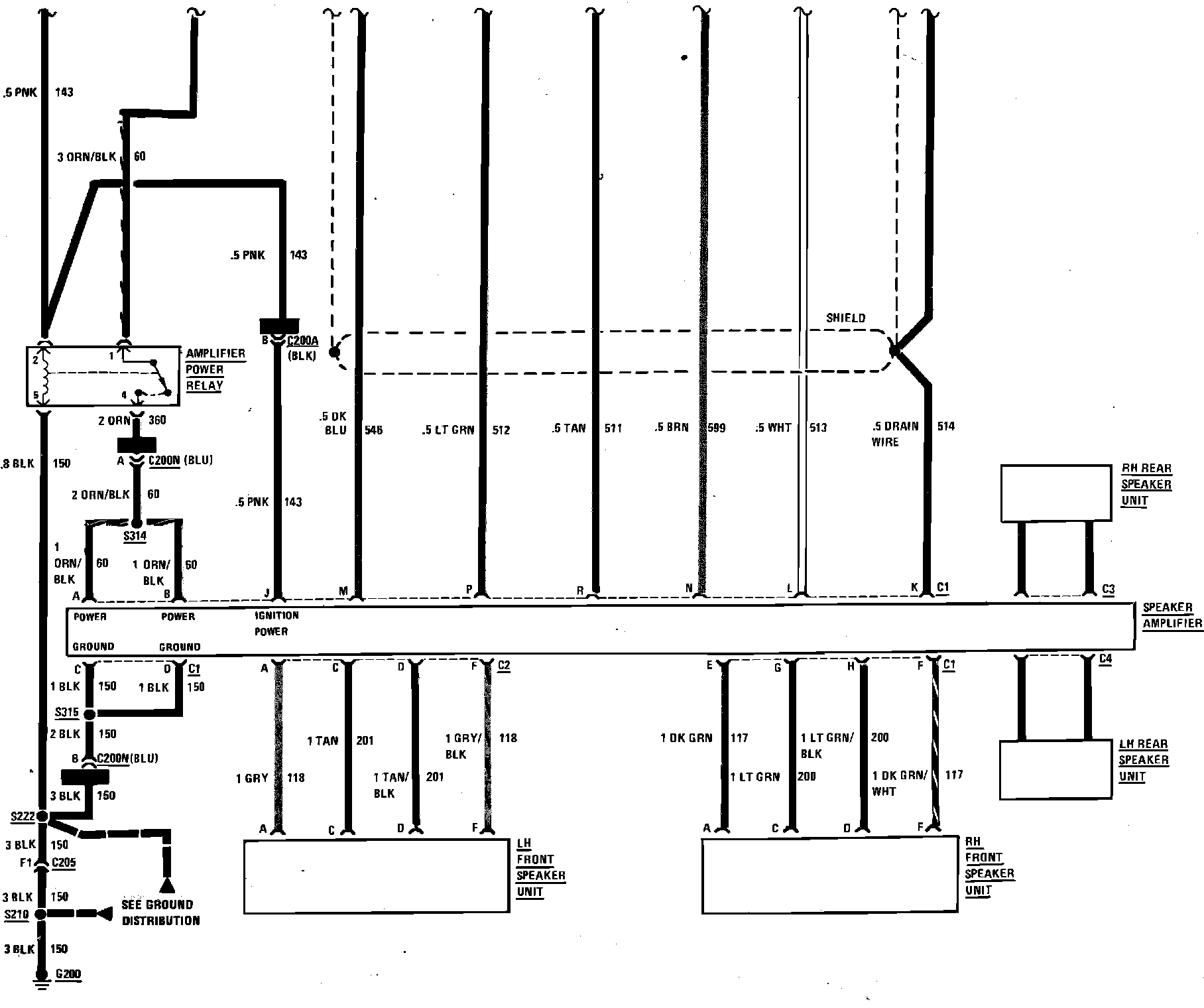

Radio & Clock Wiring Circuit (With Amplified Sound):
