Home
>>
Oldsmobile
>>
1985
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Idle Air Control, Torque Converter Clutch & Vehicle Sensors

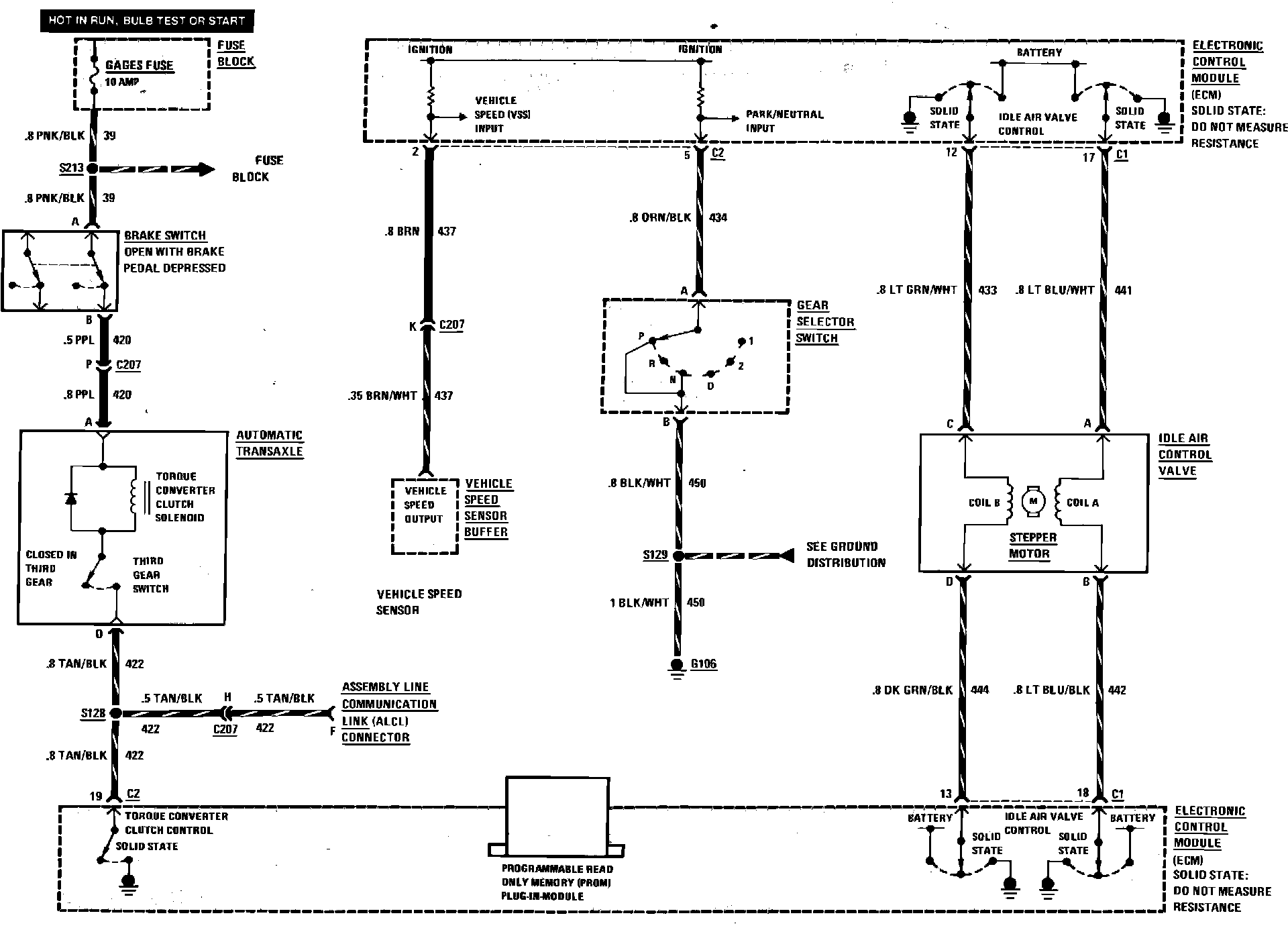

Idle Air Control, Torque Converter Clutch & Vehicle Sensors
Electronic Fuel Injection:
