Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Digital Cluster
With Digital Cluster

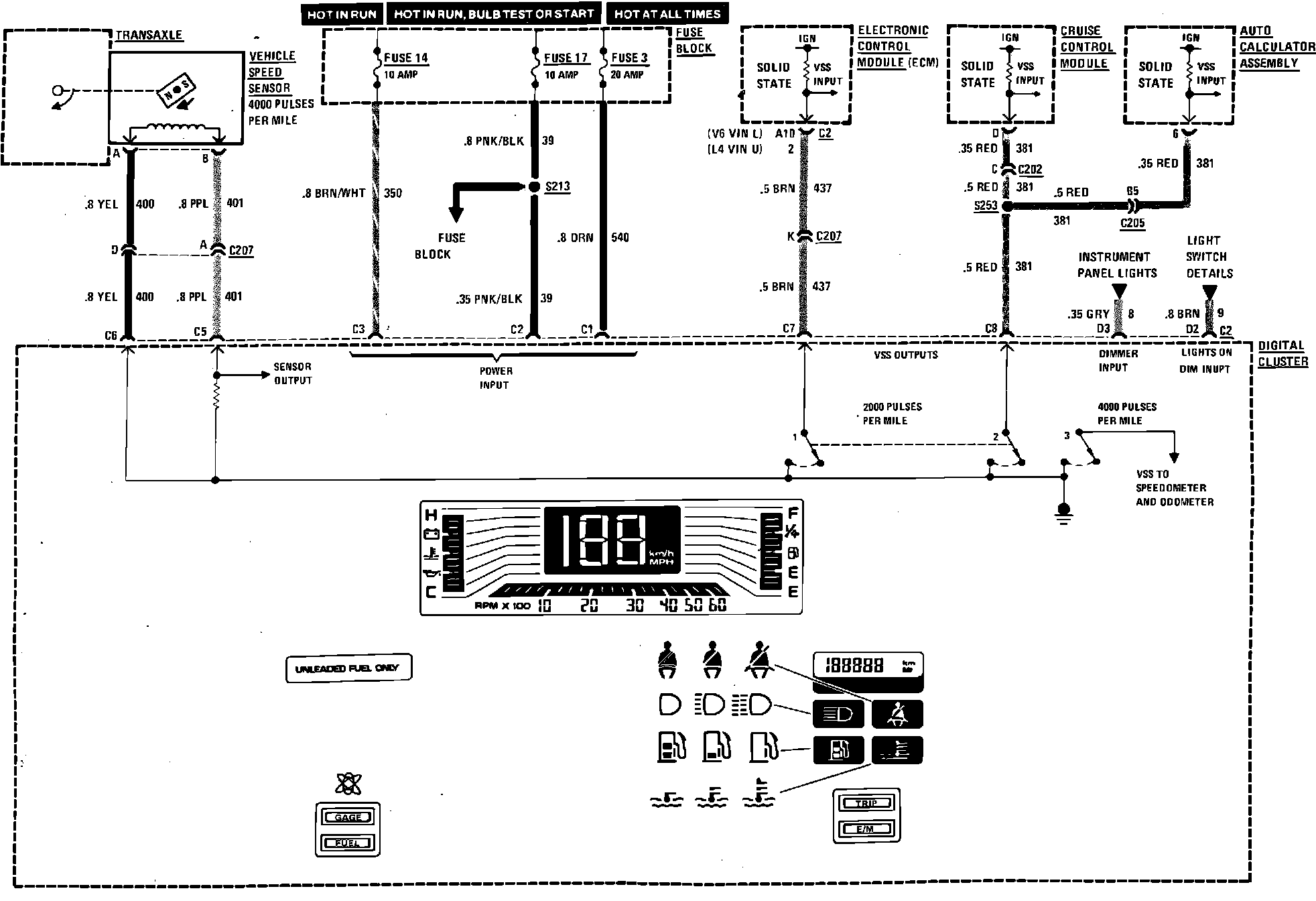

Instrument Panel Wiring Circuit:

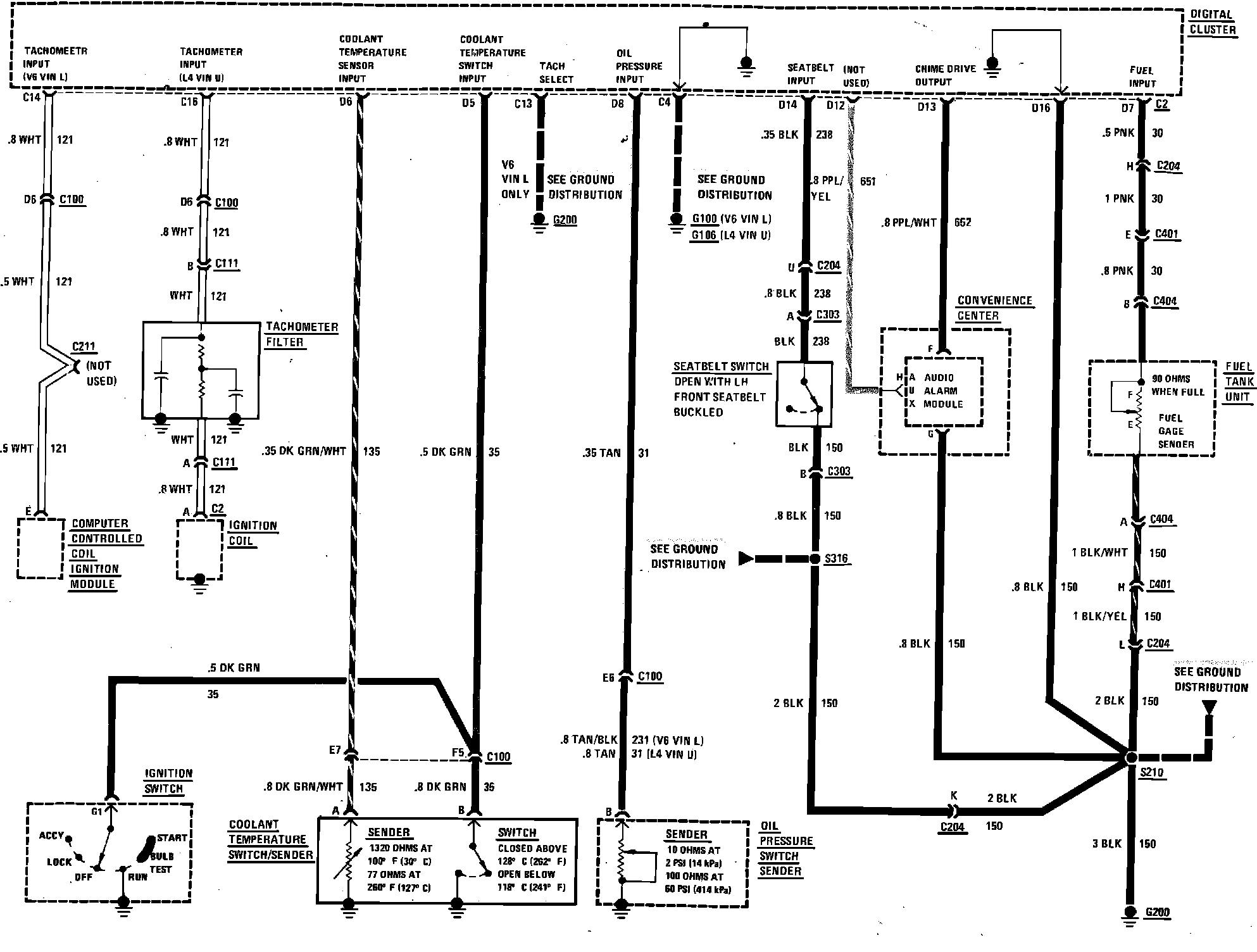

Instrument Panel Wiring Circuit:
Instrument Panel Wiring Circuit:
