Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Less Digital Cluster
Less Digital Cluster

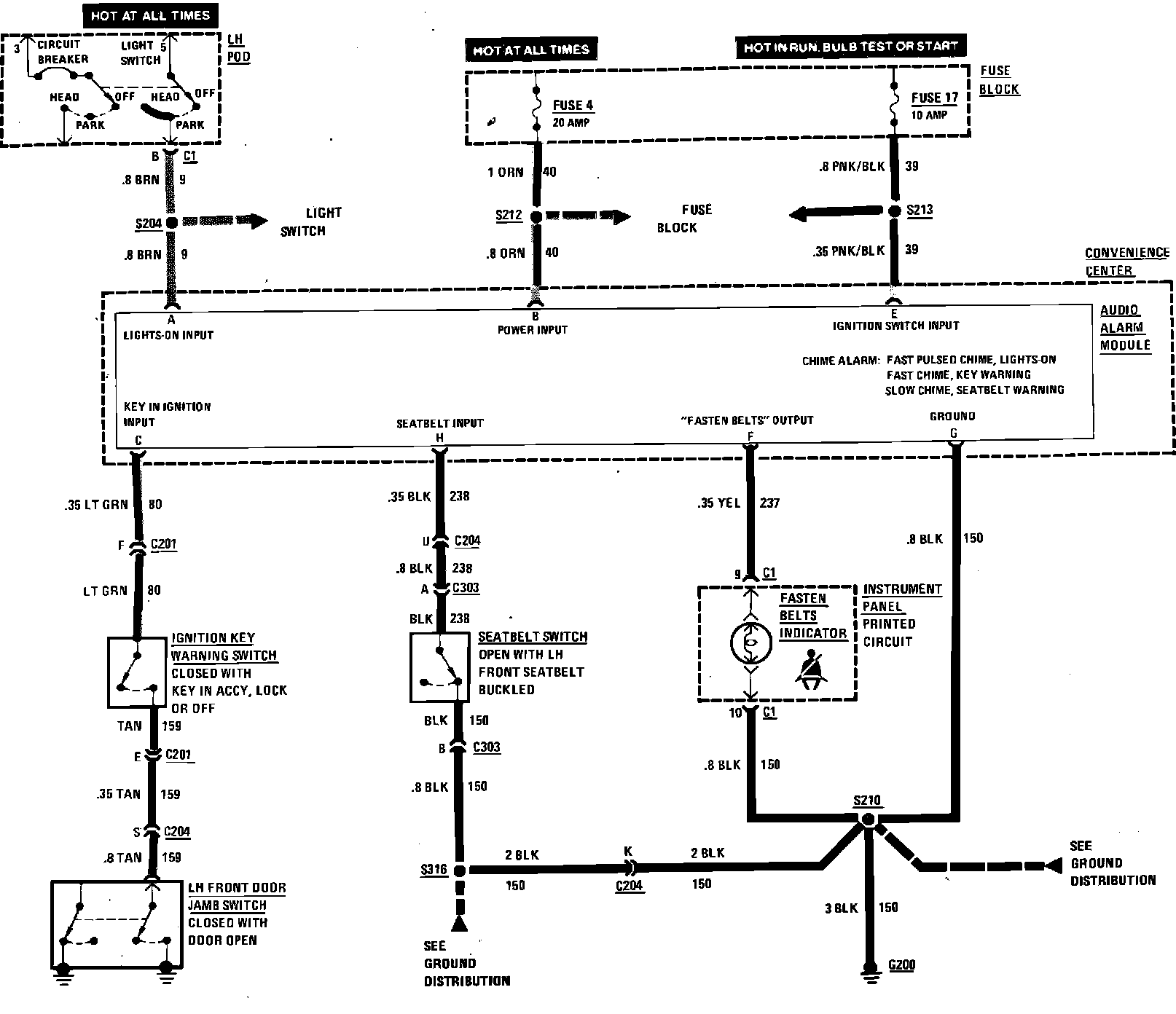

Audio Alarm System Wiring Circuit (Less Digital Cluster):
