A/T -THM 440-T4 Loss of Drive and/or Reverse
86olds7SUBJECT 1984-87 THM 440-T4 LOSS OF DRIVE AND/OR NUMBER: 87-T-09
REVERSE
DATE: December 15, 1986
MODELS/YEARS 1984-87 MODELS WITH 440-T4 TRANSAXLE
SECTION: 7A
Loss of drive and/or reverse on a 1984 to 1987 vehicle that has a THM 440-T4 transaxle with normal line pressures may be caused by the input sprag clutch assembly.. This condition may be corrected by installing a new, wider input sprag clutch and related parts.
FIGURE 1:
Date of Change:
April 1, 1986 (Julian Date 091), new input sprag clutch assembly used in later 1986 and all 1987 applications. This change is also on all Service Replacement Transmission Assembly (SRTA) models effective May 1, 1986 (Julian Date 121). (Figure 1)
FIGURE 2:
Service Action:

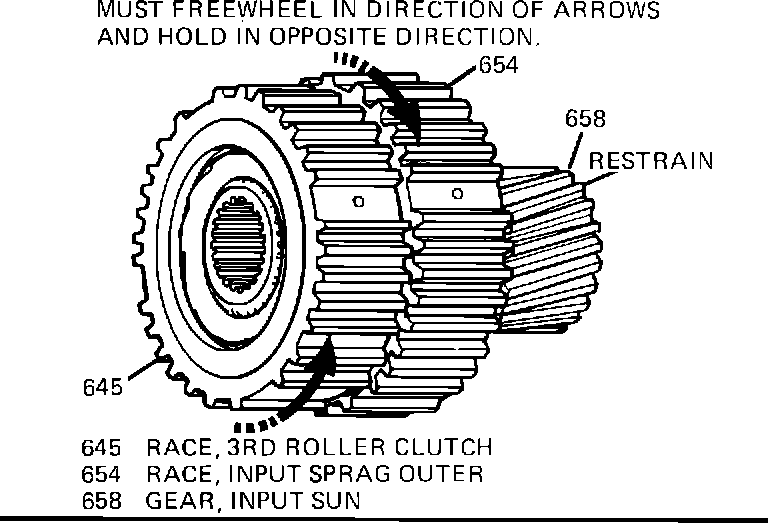

Remove and dissassemble the transaxle. Check the input sprag (Figure 2).
Service Parts Information:
Part Number Description Parts Notes
8662031 Sprag Assembly With These 4 parts will also be available soon in
End Bearings a kit (Part Number 8646985) for servicing
8658889 Snap Rings (2) a transaxle with a Julian Date at or after
8658795 Outer Race those listed in "Date of Change" section
8658834 Inner Race above.
8658797 Spacer, Input Sun Gear When servicing a transaxle with a Julian
8658796 Retainer, Input Sprag Date before those listed above, all 7 Parts
Clutch will be needed.
8658800 Carrier Assembly, Input These 7 parts will also be available soon in
Complete a kit (Part Number 8662906).
Service Manual Reference:
Refer to the THM 440-T4 (ME9) automatic transaxle unit repair section for input sprag clutch assembly service information.
