Home
>>
Oldsmobile
>>
1984
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Opera Lamp
Opera Lamp

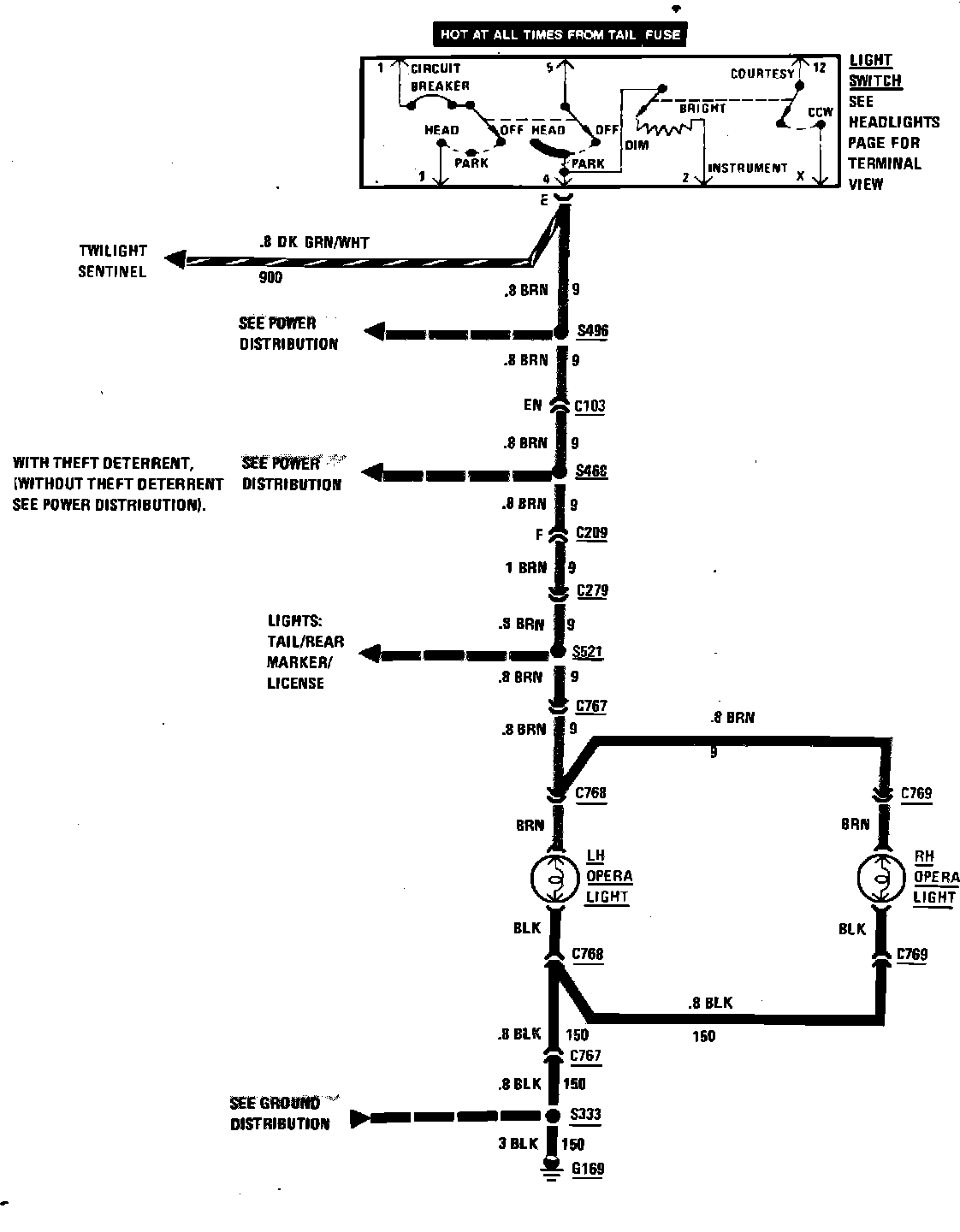

Opera Lamps Wiring Circuit:
