Home
>>
Oldsmobile
>>
1984
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Cornering Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

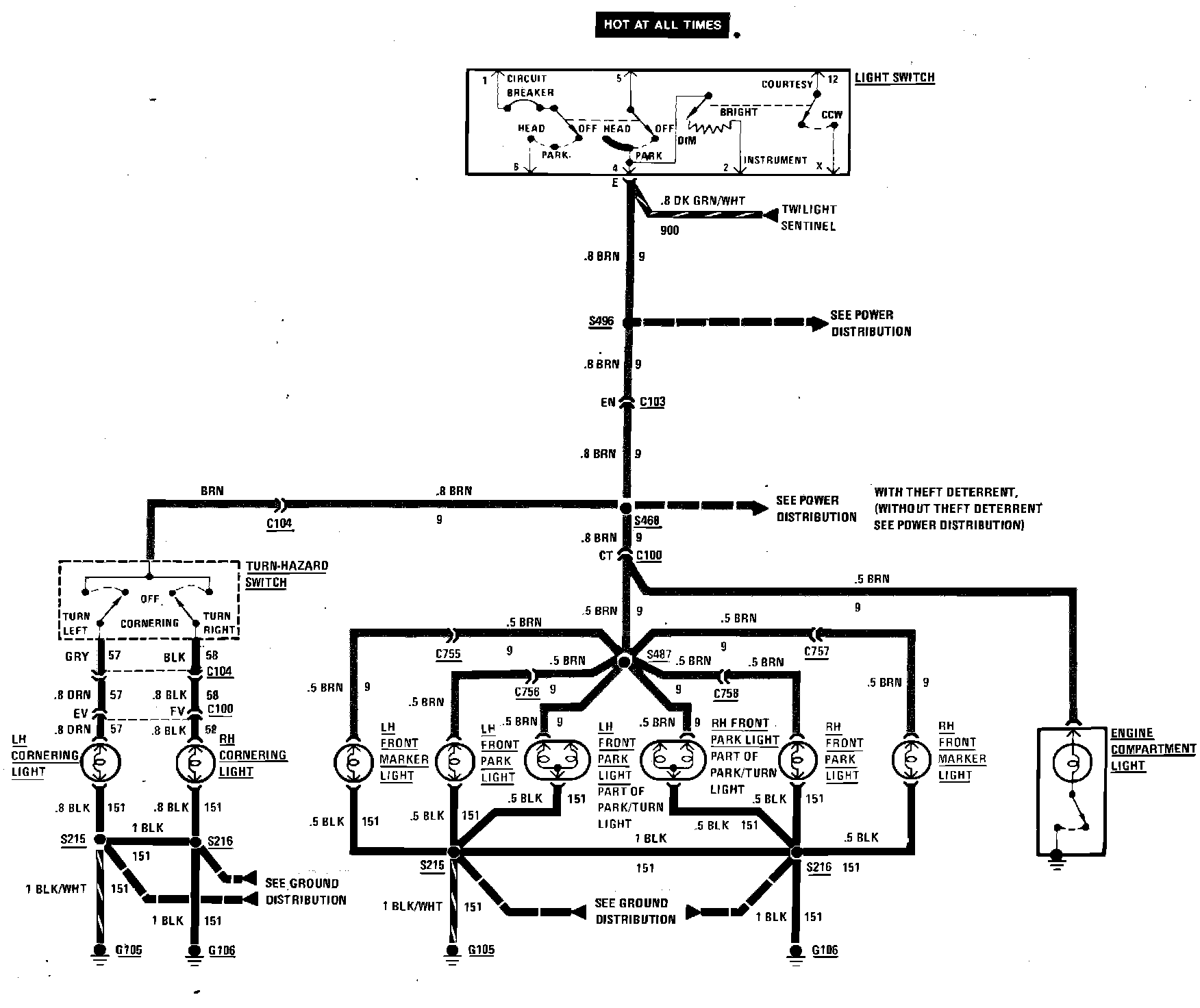

Cornering, Engine Compartment, Front Marker & Park Lighting Wiring Circuit:
