Home
>>
Oldsmobile
>>
1984
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

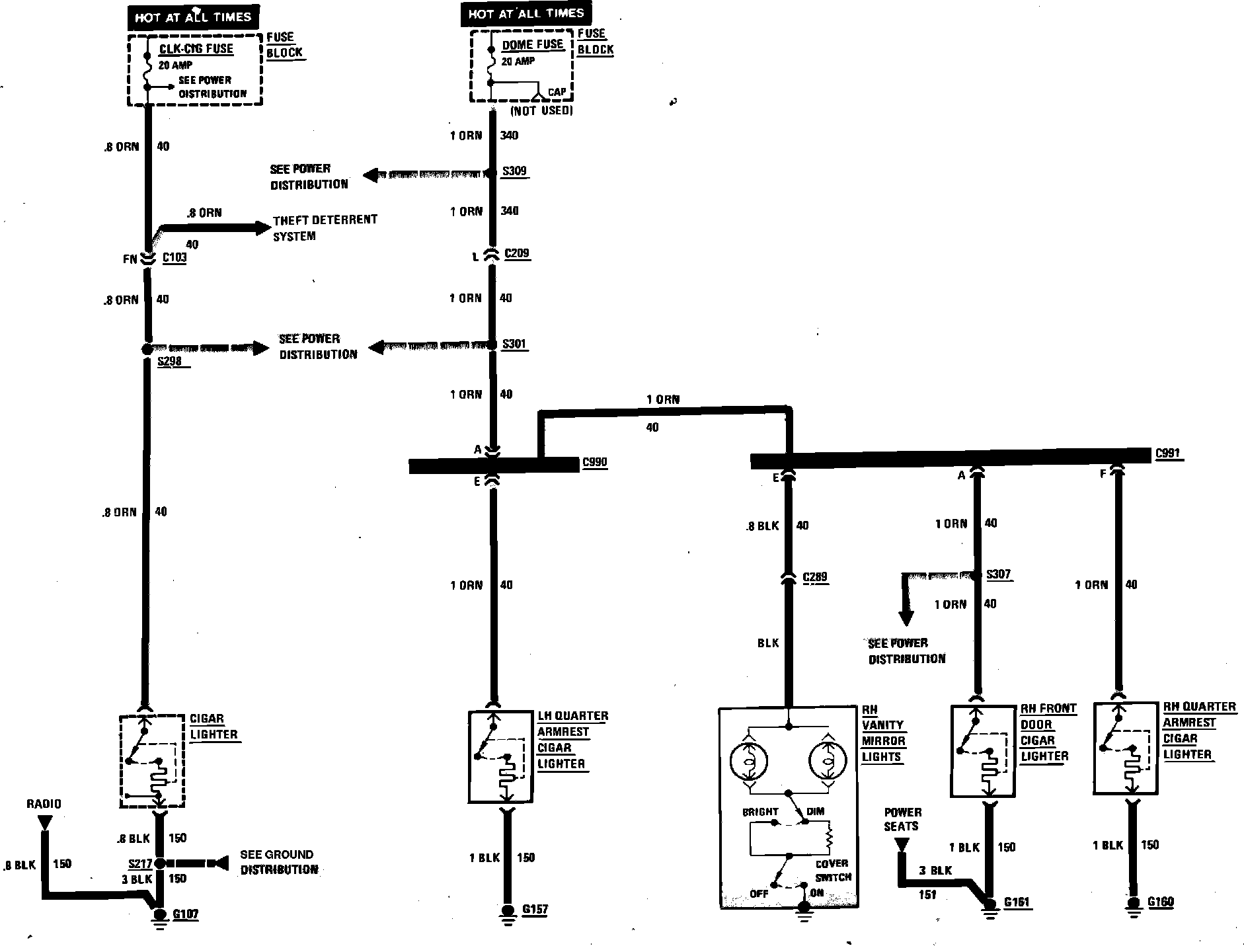

Cigar Lighter & Vanity Lights Wiring Circuit:
