Oldsmobile
>>
1984
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Without Pulse
Without Pulse

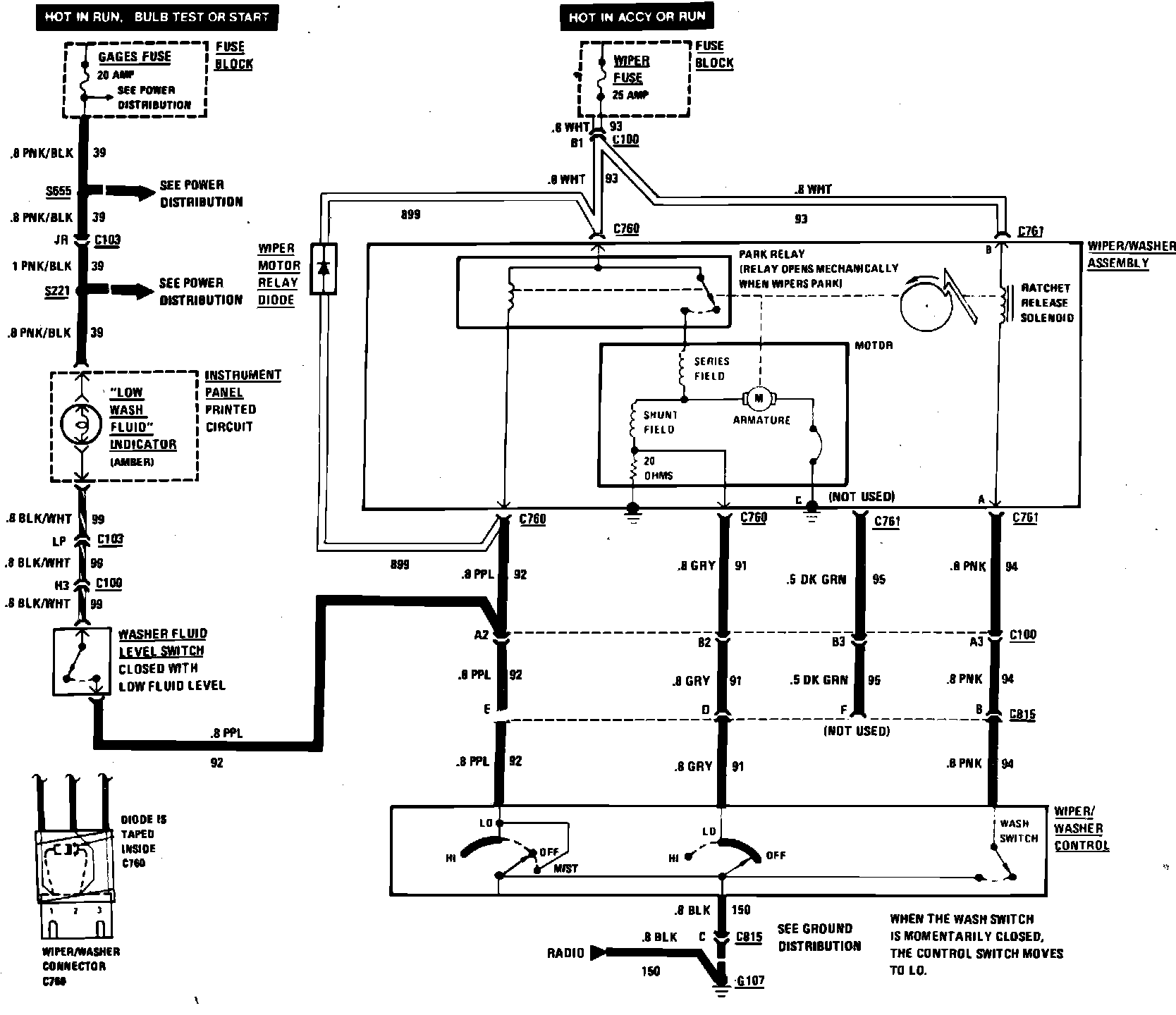

Wiper/Washer Wiring Circuit (Less Pulse):
