Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
License Plate Lamp
License Plate Lamp

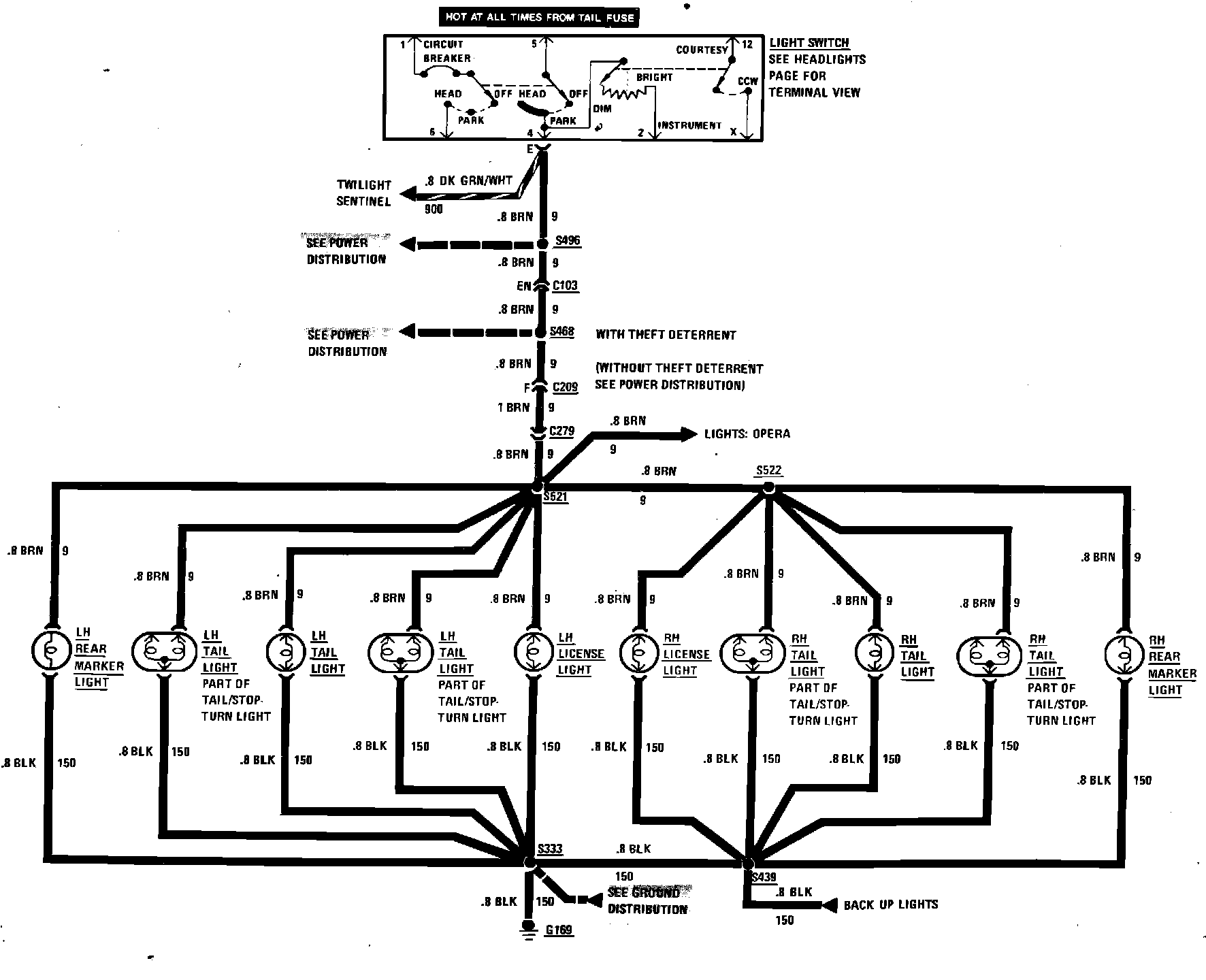

License, Rear Marker & Tail Lamp Wiring Circuit:
