Recall - Deceleration Valve Stuck Closed
85olds3SUBJECT DECELERATION VALVE STUCK CLOSED NUMBER: 84-E-02
DATE: June 14,1985
MODELS/YEARS 1984 OMEGAS EQUIPPED WITH A 2.8L V-6 ENGINE SECTION: 6E
(VIN X) & FEDERAL OR CALIFORNIA EMISSION SYSTEMS
CONDITION
General Motors has determined that certain 1984 Omega models equipped with a 2.8L V-6 engine (VIN X) and Federal or California emission systems may be emitting pollutants in excess of Federal and/or California emission standards, The cause has been identified as a sticking deceleration valve which may not open, resulting in possible failure to meet HC emissions.
VEHICLES INVOLVED
Certain 1984 Omega models equipped with a 2.8L V-6 engine (VIN X) and Federal or California emission systems within the following vehicle identification numbers:
Assembly Plant Beginning Up to and Including
Willow Run (W) EW342251 EW342716
DEALER ACTION
Dealers are to inspect the deceleration valve for date code, and if required replace the deceleration valve as directed in the Service Procedure section of this bulletin.
Whenever a vehicle subject to this campaign is taken into your vehicle inventory, or it is in your dealership for service in the future, you should take the steps necessary to be sure the campaign correction has been made before reselling or releasing the vehicle..
Owners of vehicles recently sold from your new vehicle inventory are to be contacted by the dealer, and arrangements made to make the required modification according to instructions contained in this bulletin.
SERVICE PROCEDURE
INSPECTION
1. Raisehood.

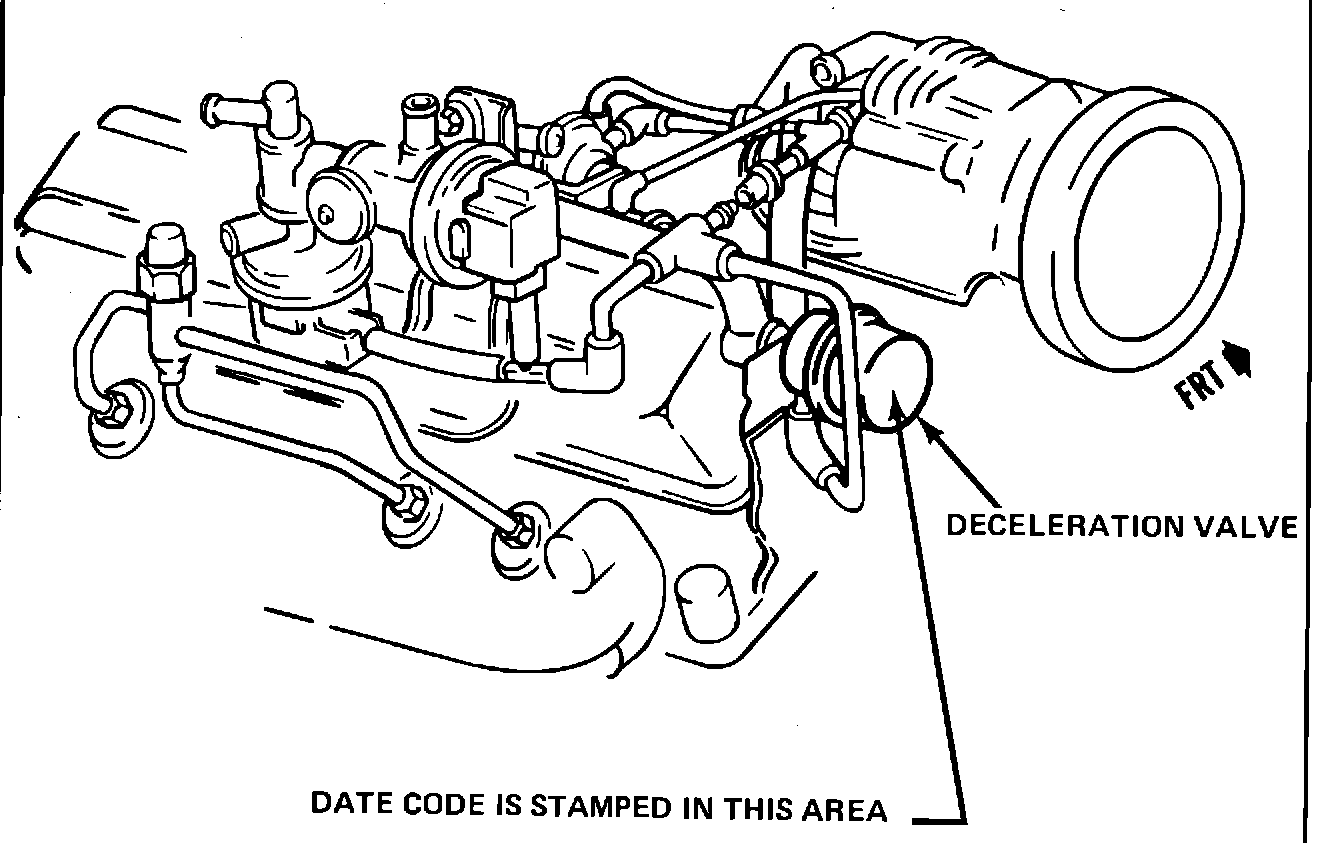

FIGURE 1:
2. Inspect deceleration valve for date code, Refer to Figure 1 for valve and date code location.
3. If the date code on the valve is 1154B or 1174C it must be replaced.
4. Deceleration valves with date codes other than those listed in step 3 are NOT INVOLVED and no further action is required. Install the Campaign Identification label as directed in step 5 of the Valve Replacement Procedure.
VALVE REPLACEMENT PROCEDURE
1. Remove vacuum hoses from valve.
2. Remove two (2) screws securing valve to engine bracket and remove valve.
3. Install new valve and tighten screws to engine bracket, 4. Reinstall vacuum hoses.
5. Install Campaign Identification label. Each vehicle modified in accordance with the instructions outlined in this Emission Campaign Bulletin will require a Campaign Identification label. Each label provides a space to include the five (5) digit dealer code of the dealer performing the campaign service. This information may be inserted with a typewriter or ballpoint pen. When installing label, clean the surface of the radiator upper mounting support and apply the campaign label where it is readily visible.
6. Close hood.
PART INFORMATION
Parts are to be obtained from WDDGM using the following part number:
Description Part No.
Deceleration Valve 14056425
To ensure that these parts will be obtained as soon as possible, they should be ordered from WDDGM on a C.I.O. order with no special instruction code, but order on an advise code (2).
WARRANTY CLAIM INFORMATION
Operation Failure Code Labor Operation Labor Hours
Inspect Deceleration 96 V2760 .2
Valve Date Code. Replacement Not Necessary
Inspect and Replace 96 V2761 .3
Deceleration Valve
Parts will be credited at dealer cost plus 30%.
.1 hour for clerical administration may be added to the above operations.
Dear Oldsmobile Owner:
General Motors has determined that certain 1984 Omega models equipped with a 2.8L V-6 engine may be emitting pollutants in excess of Federal or California emission standards.
The cause has been identified as a sticking deceleration valve which may not open, resulting in possible failure to meet HC emissions.
To correct this condition your dealer will inspect and when required replace the deceleration valve on your vehicle. This service will be performed at no charge to you.
Instructions for making the correction have been sent to your dealer. The labor time to perform this service is approximately thirty minutes. Please allow additional time for your dealer to process your vehicle.
The enclosed Owner Reply Card identifies your vehicle. Presentation of this card to your dealer will assist in making the inspection to your vehicle in the shortest possible time. If you have sold or traded your vehicle, please let us know by completing the postage paid Owner Identification Reply Card and returning it to us so that we may update our records. Should your dealer not schedule a service date within a reasonable time, you should contact your nearest Oldsmobile Zone office either in person or by telephone for assistance. The locations and telephone numbers for zone offices are listed in your Warranty and Owner Assistance Information booklet.
If your dealer or General Motors are unable to remedy this condition within a reasonable time, you may wish to advise the Environmental Protection Agency, at the following address: Director, Manufacturers Operation Division (EN-340), United States Environmental Protection Agency, 401 M Street, S.W. Washington, D.C., 20460. To ensure your full protection under the emission warranty made applicable to your vehicle by Federal Law, and your right to participate in future recalls, it is recommended that you have your vehicle serviced as soon as possible. Failure to do so could legally be determined to be a lack of proper maintenance of your vehicle.
We are sorry to cause you this inconvenience; however, we have taken this action in the interest of your continued satisfaction with our product.
