A/T - Case Cover Part Number Correction
85olds4SUBJECT
CASE COVER PART NUMBER CORRECTION
NUMBER: 84-T-26A
ON 125C TRANSAXLES
DATE: June 3, 1985
MODELS/YEARS
1984 FIRENZA, OMEGA & CUTLASS CIERA SECTION: 7A
This bulletin is being re-issued with corrections and replaces Dealer Technical Bulletin 84-T-26 dated March 28, 1985 which should be destroyed..
The October 1984 and also the January and February 1985 issues of the Warehousing Distribution Division of General Motors (WDDGM) Parts Catalog incorrectly lists some 1984 model year THM 125C Case Cover part numbers. WDDGM Service Parts Action Bulletin, number 85-10, issued February 22, 1985 correctly lists the service usage part numbers.
Listed below are the model year, transaxle models, and CORRECT service usage part number and identification.

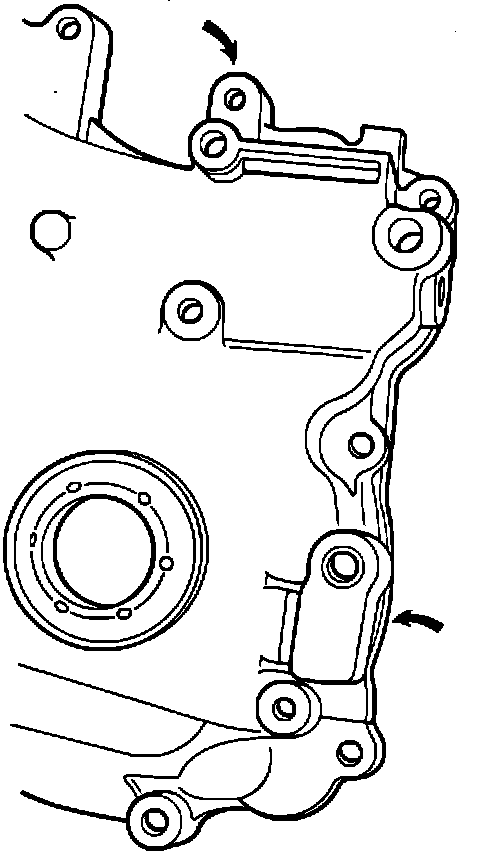

FIGURE 1 - CASE COVER I.D. OF 8653968:
Incorrectly Correct
Model Transaxle Listed Part Service Usage
Year Models Numbers Part Numbers Identification
1984 CA, CB, CF, PE, PG, 8653950 8653968 Refer to Fig. 1
PJ, HC, HY supersedes for identification
8653951 of 8653968

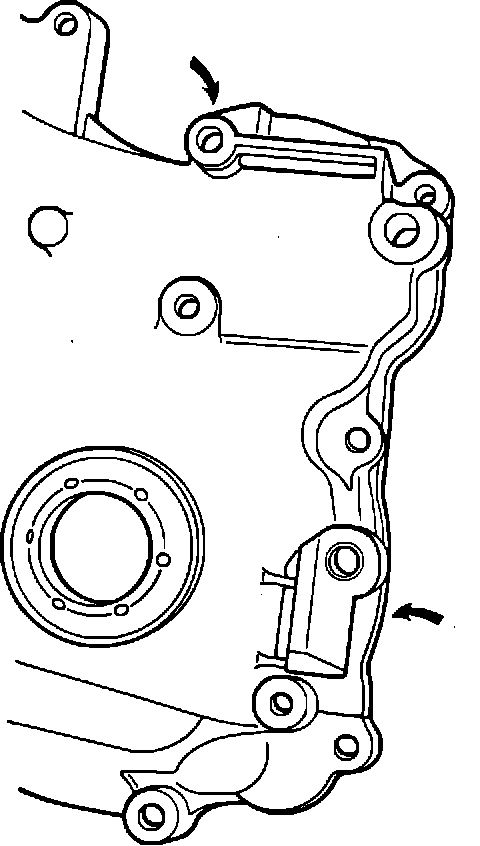

FIGURE 2 - CASE COVER I.D. OF 8653969:
1984 PF, BF, BL, CL, CK, 8653951 8653969 Refer to Fig. 2
CT, CC, CI, PD, PW, supersedes for identification
OP, HM, HS, HV, HP, 8653950 of 8653969
HX
