Engine Sensors, Torque Converter & Shift Ind
Engine Sensors, Torque Converter & Shift Ind

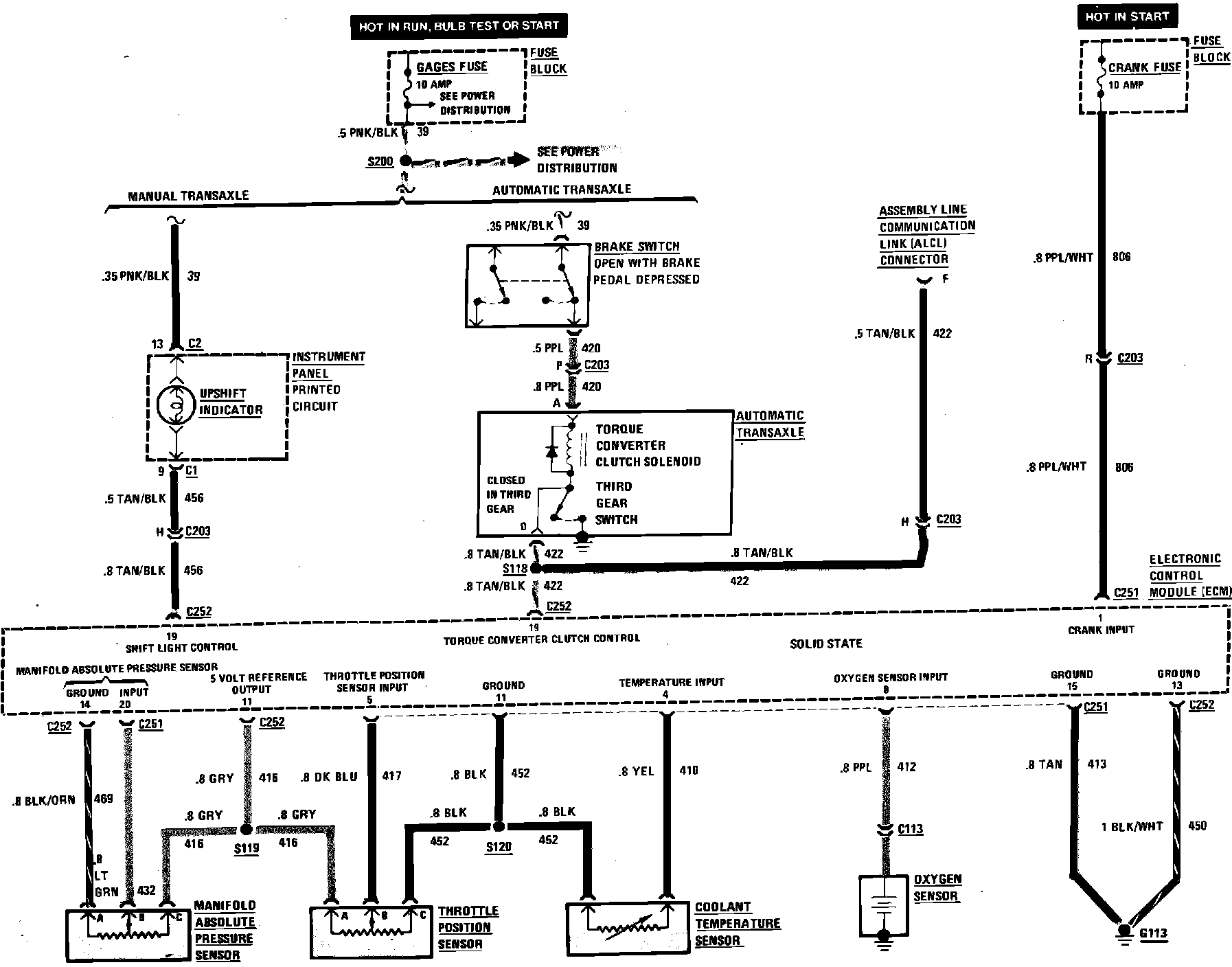

Electronic Fuel Injection Wiring Circuit:
