Choke Heater & Engine Warning Indicators
>>
Less Gauges
Less Gauges

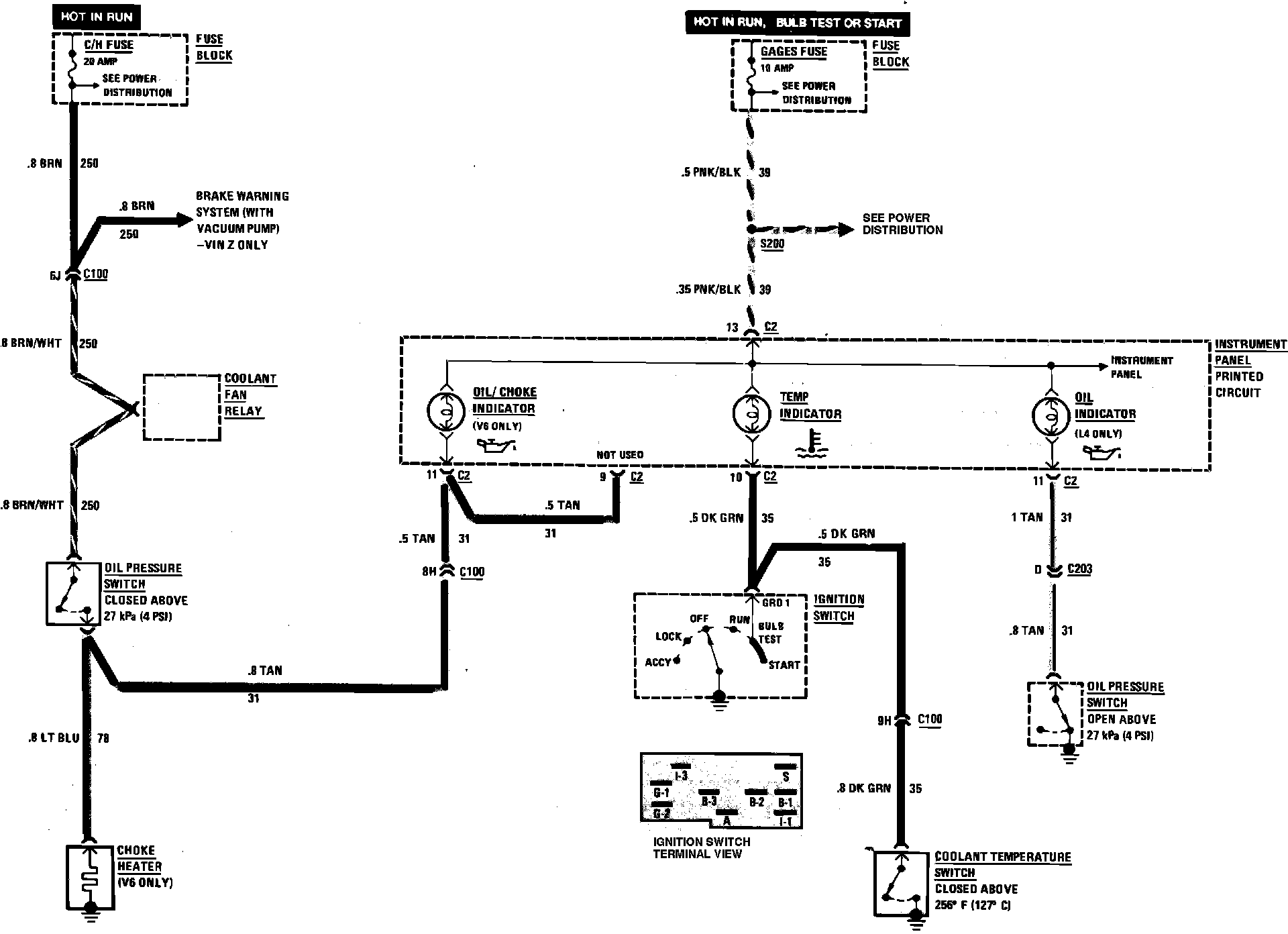

Choke Heater & Instrument Panel Indicators Wiring Circuit (Less Gauges):
