Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1984
>>
Omega L4-151 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

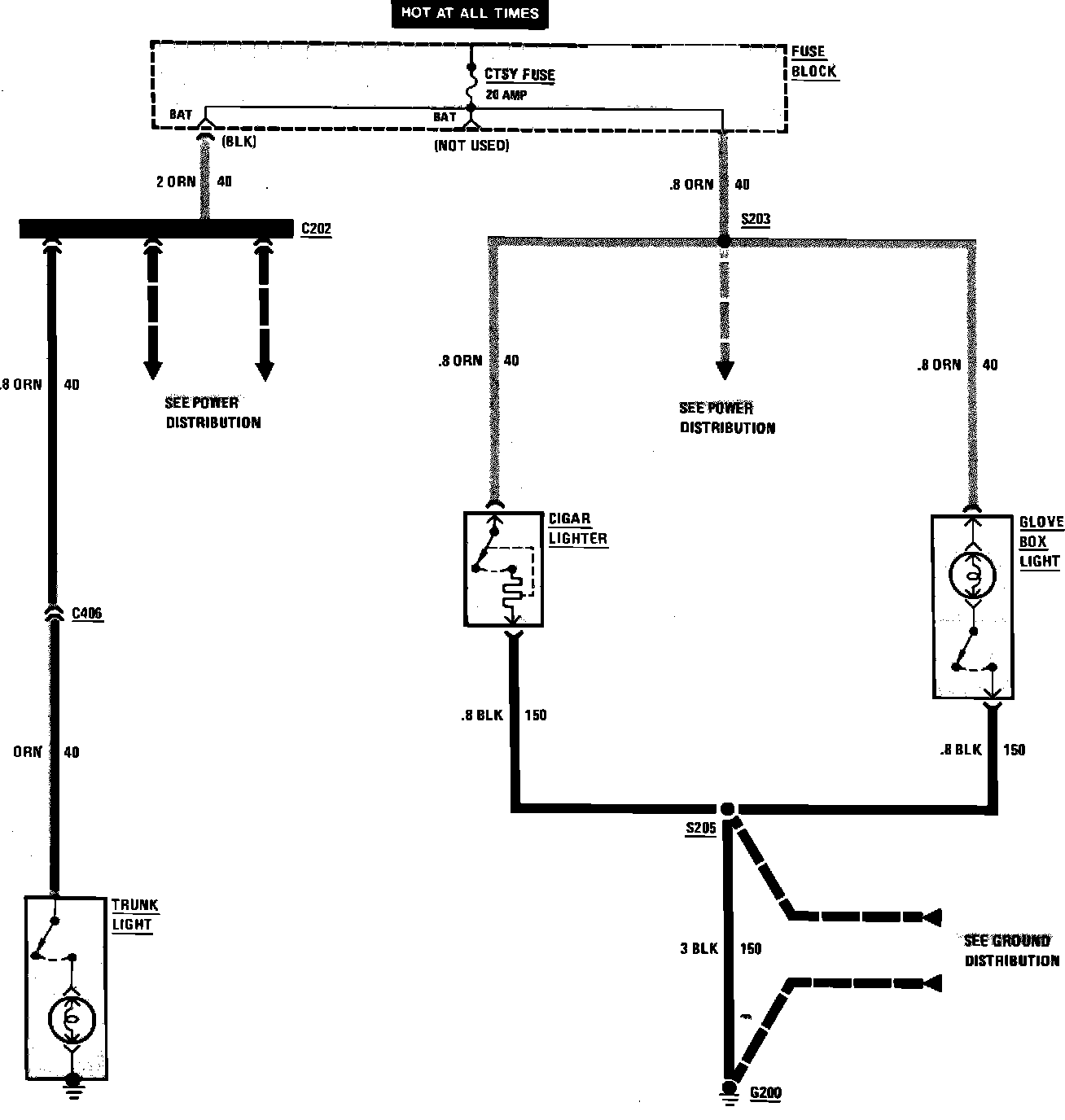

Cigar Lighter, Glove Box & Trunk Lamp Wiring Circuit:
