Home >> Oldsmobile >> 1984 >> Omega L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc

Radio, Stereo, and Compact Disc

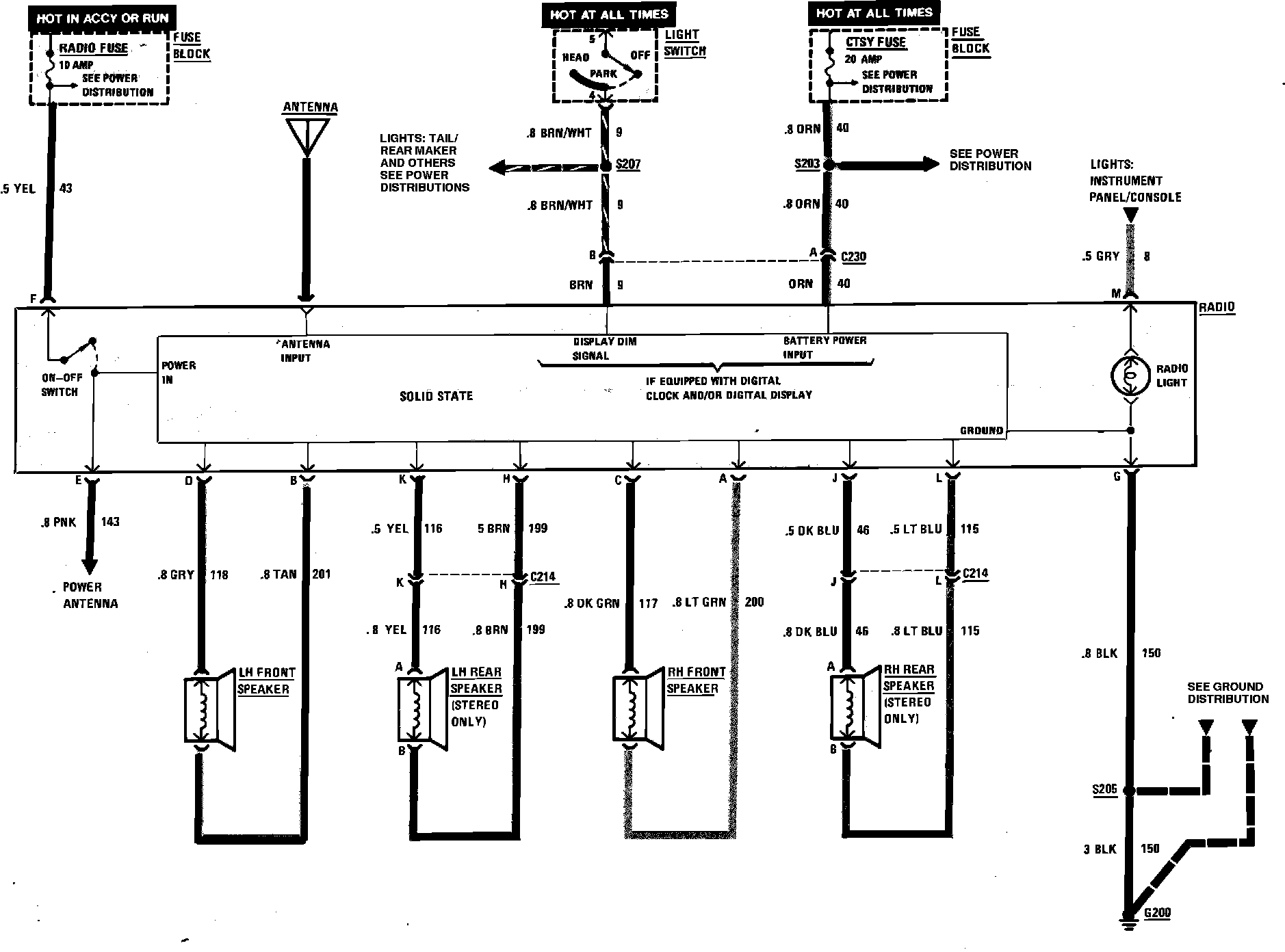

Radio & Speaker Wiring Circuit:
