Brake Warning Indicator
>>
With Vacuum Pump
With Vacuum Pump

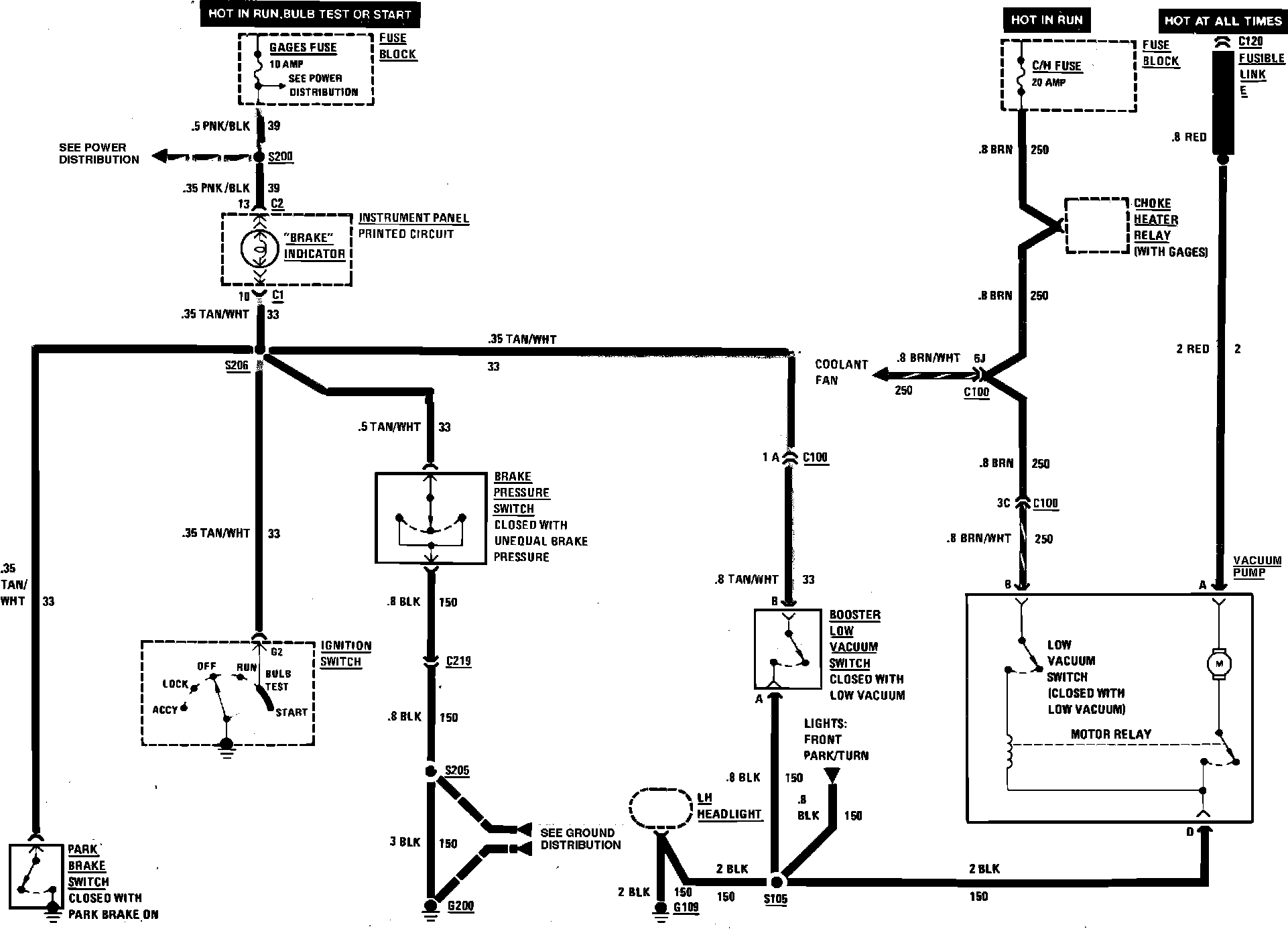

Brake Warning System Wiring Circuit (With Vacuum Pump):
