Service Procedure

1. Raise hood and install fender cover.

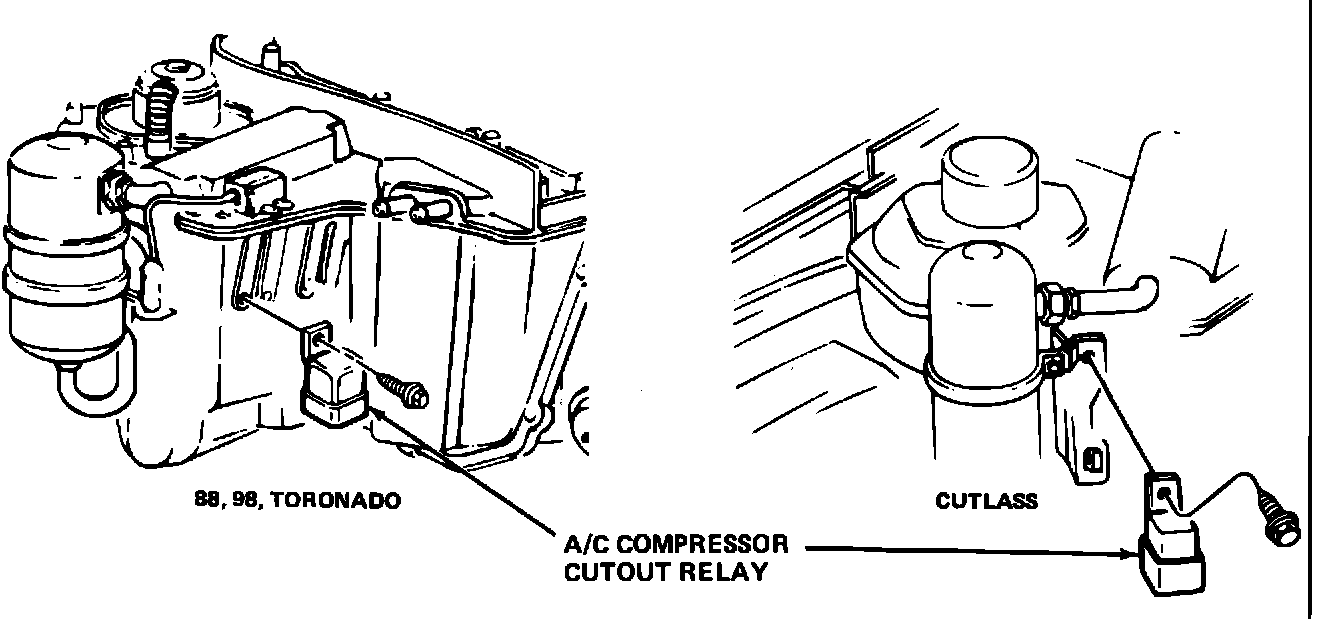

FIGURE 1:

2. Locate the A/C cutout relay on the heater A/C module as shown in Figure 1.

3. Remove the attaching screw and disconnect harness.
4. Remove mounting bracket from old relay and install on new relay.

5. Reversing the above procedures, install the new relay on A/C module in location shown in Figure 1.
6. Install a Campaign Identification label. Each vehicle modified in accordance with the instruction outlined in this Service Procedure will require a Campaign Identification label. Each label provides a space to include the campaign number, the five (5) digit dealer code of the dealer performing the campaign service, and the date vehicle was campaigned. This information may be inserted with a typewriter or ballpoint pen. When installing label, clean the surface of the radiator upper mounting support and apply the campaign label where it is readily visible.
