Oldsmobile
>>
1984
>>
Cutlass V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Instrument Panel Circuits
Instrument Panel Circuits

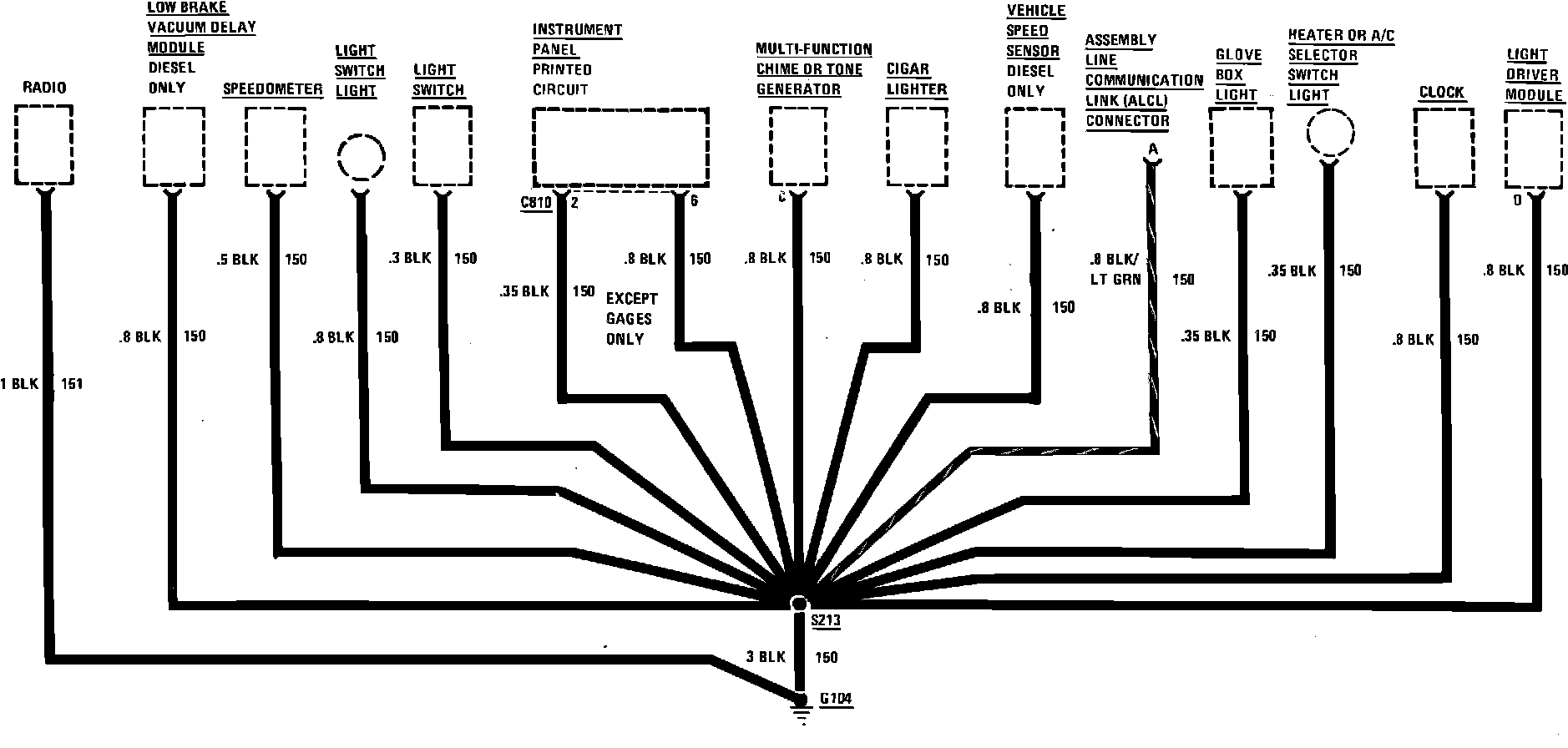

Ground Distribution (Instrument Panel Circuit):
