Early Production

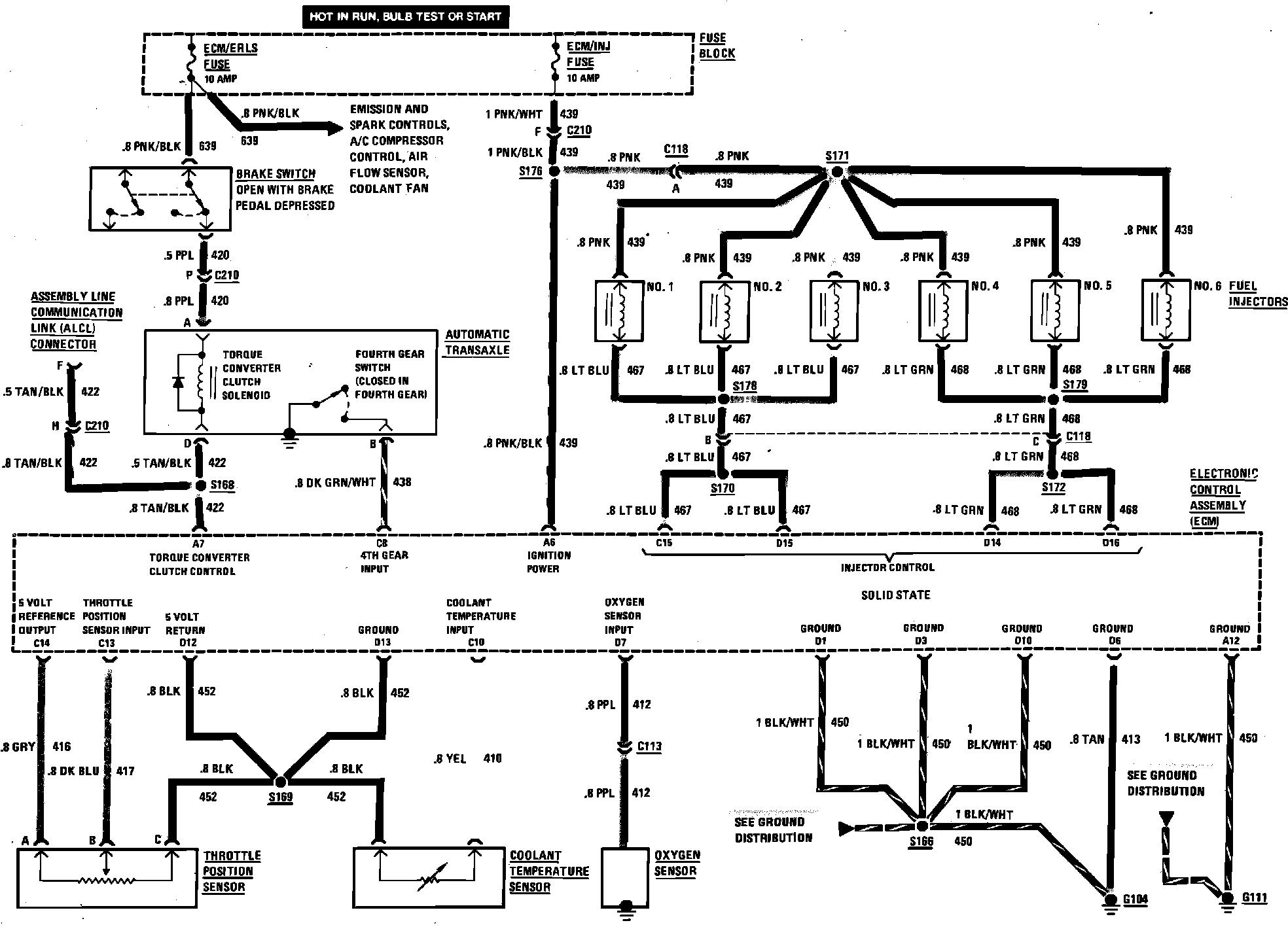

Multiport Fuel Injection (Engine Data Sensors, Fuel Injectors & Torque Converter Clutch) Wiring Circuit. Early Production:
