Check Engine Light & Ignition System
Check Engine Light & Ignition System

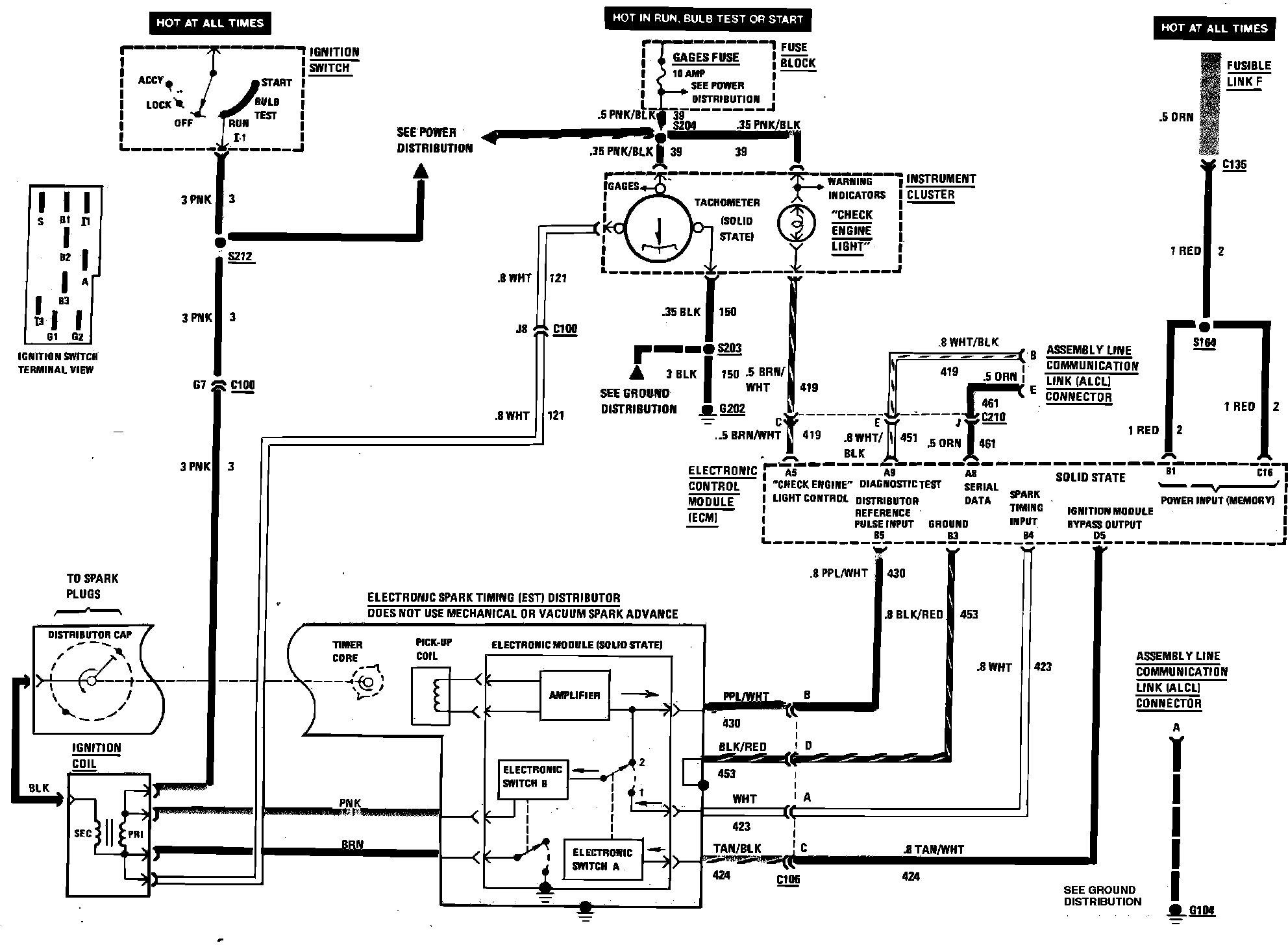

Multiport Fuel Injection (Check Engine Light & Ignition System) Wiring Circuit:
