Recall - Brake Pedal Bracket Replacement
84olds1SUBJECT INCORRECT BRAKE PEDAL BRACKET NUMBER: 84-C-4
DATE: March 9, 1984
MODELS/YEARS 1984 88 MODELS WITH SECTION: 5
HYDROBOOST BRAKES
CONDITION
General Motors has determined that a defect which relates to motor vehicle safety exists in some early production 1984 Oldsmobile 88 models equipped with Hydroboost brake systems.. The vehicles have been assembled with an incorrect brake pedal bracket. This causes the brake pedal to be located in a lower than normal position. This could prevent sufficient pedal travel to fully apply the brakes if a loss of brake fluid were to occur in either half of the dual brake system. Loss of full brake capability at a time when minimum stopping distance is required could result in a vehicle crash without prior warning.
VEHICLES INVOLVED
Involved are certain early production 1984 Oldsmobile 88 models equipped with Hydroboost brake system from the start of production through the following serial number.
Assembly Plant Serial Number
Detroit E9709271
DEALER ACTION
To reduce the possibility of this occurring on vehicles involved, the brake pedal bracket is to be replaced.
Dealers are to service all vehicles subject to this campaign at no charge to the owner, regardless of mileage, age of vehicle, or ownership, from this time forward.
Whenever a vehicle subject to this campaign is taken into your dealership for service in the future, you should take the steps necessary to be sure the campaign correction has been made before reselling or releasing the vehicle.
Owners of vehicles recently sold from your new vehicle inventory are to be contacted by the dealer, and arrangements made to make the required modification according to instructions contained in this bulletin.

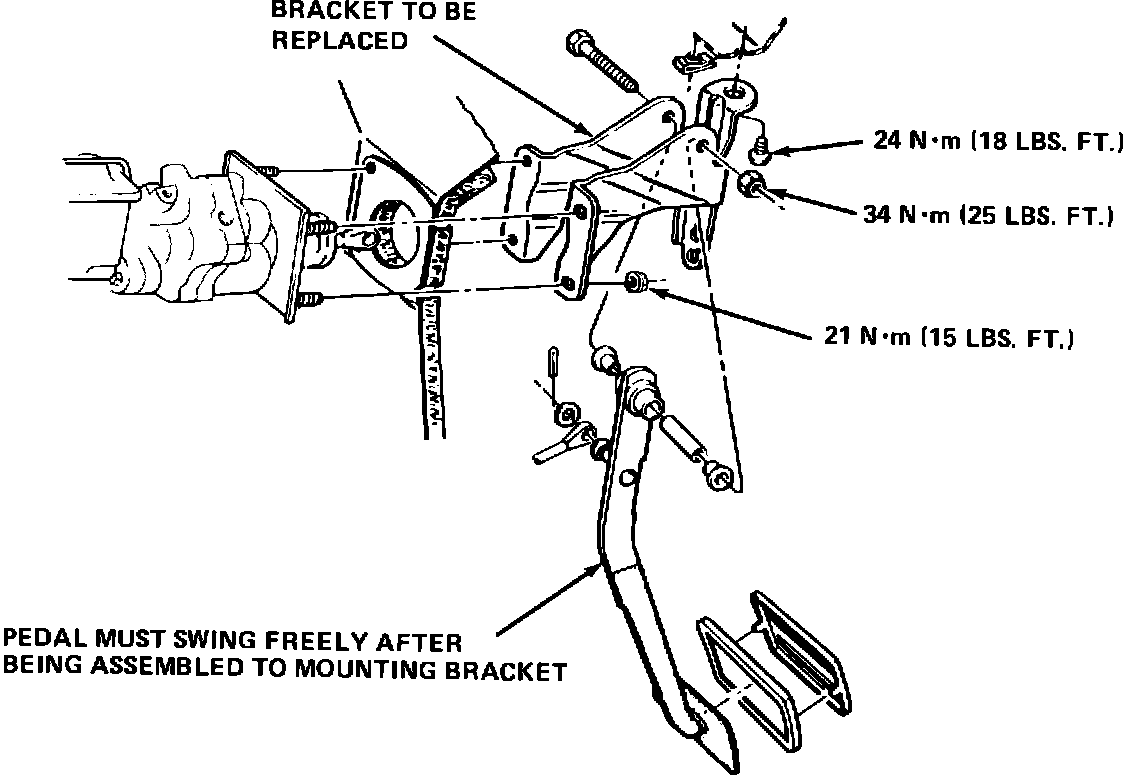

FIGURE 1:
SERVICE PROCEDURE
To replace the brake pedal bracket use the following procedure and refer to the instructions in Figure 1 for torque specifications and proper assembly of the components.
1. Install seat and fender covers.
2. Disconnect negative battery cables.
3. Remove sound insulator (hush panel) under left side of instrument panel.
4. Disconnect the parking brake release cable along with the ashtray light bulb assembly and then remove lower I.P. trim panel.
5. Remove the lower steering column trim cover.
6. Disconnect the brake light and cruise control switches (if equipped).
7. Remove the four (4) brake pedal bracket nuts and disconnect the wiring harness retaining clip attached to the bracket.
8. Remove the steering column bolts and lower the steering column to gain access to upper part of brake pedal bracket.
NOTE: Care should be taken so as not to damage the shift indicator cable when lowering the steering column. Disconnect the cable if required.
9. Remove upper steering column bracket bolt and slide bracket out of the way.
10. Remove the upper brake pedal bracket bolt and disconnect the Hydroboost push rod from the brake pedal.
11. With bracket removed disconnect brake pedal and install brake pedal in new bracket, part number 1262965.
12. To install the new brake pedal bracket reverse the steps in this procedure.
NOTE: When installing the brake light switch and cruise control switch (if equipped) be sure they are properly adjusted.
13. Install a campaign identification label on the fan shroud as follows:
Each vehicle modified in accordance with the instructions outlined herein will require a Campaign Identification Label. Each label provides a space to include the Campaign Number, the five (5) digit Dealer Code of the dealer performing the campaign service, and the date vehicle was campaigned. This information may be inserted with a typewriter or ballpoint pen. When installing label, clean the surface of the fan shroud and apply the Campaign Label.
PARTS INFORMATION
Brake pedal bracket, part number 1262965, is to be obtained from WDDGM. When ordering parts dealers should keep in mind that there are only 139 vehicles involved in this campaign.
To ensure this part will be obtained as soon as possible, it should be ordered from GM Parts (WDDGM) on a C.I.O. order with NO special instruction code, but order on an advise code (2).
WARRANTY INFORMATION
Part Failure Labor Labor
Operation Number Code Operation Hours
Replace brake 1262965 96 V1990 .7 hrs.
pedal bracket.
.1 hour for clerical administration may be added to the above operation.
Part will be credited at dealer net, plus 30% dealer handling allowance.
Dear Oldsmobile Owner:
This notice is sent to you in accordance with the requirements of the National Traffic and Motor Vehicle Safety Act.
General Motors has determined that some 1984 Cutlass Ciera, Firenza and Omega two-door cars have been assembled with bucket seat back locks which fail to conform to the requirements of Federal Motor Vehicle Safety Standard 207 "Anchorage of Seats". In the event of a vehicle crash, the seat back inertia lock may not function. This would allow the seat back to fold forward, which could increase likelihood of injury to the seat occupant.
To prevent this condition from occurring, please contact your Oldsmobile Dealer on or after the date shown below to arrange a service date to have your vehicle inspected. Your dealer will check the bucket seat back locks. If necessary, the locks will be replaced. This service will be completed at no charge.
Instructions for making this correction have been sent to your Oldsmobile Dealer. It is estimated that parts will be available approximately March 1, 1984. The labor time to check the seat back locks is approximately 20 minutes. If seat back lock replacement is necessary, it will take about 40 minutes more. Please ask your dealer if you wish to know how much additional time will be necessary to process your vehicle.
Your Oldsmobile Dealer is best equipped to obtain parts and provide service to ensure your vehicle is corrected as promptly as possible. However, if you take your vehicle to your dealer on the agreed service date and they do not remedy this condition on that date or within five days, we recommend you contact the nearest Oldsmobile Zone Office, either in person or by telephone. The Zone Office will assist you and the dealer in getting your vehicle corrected. The locations and telephone numbers of the Zone Offices are listed in your Warranty and Owner Assistance Information Booklet which is in your glove box.
After contacting your dealer and the Zone Office, if you are still not satisfied that we have done our best to remedy this condition without charge within a reasonable time, you may wish to write the Administrator, National Highway Traffic Safety Administration, 400 Seventh Street, S.W., Washington, D.C. 20590, or call 800-424-9393 (Washington, D.C. residents use 426-0123).
The enclosed owner reply card identifies your vehicle. Presentation of this card to your dealer will assist in correcting your vehicle in the shortest possible time. If your have sold or traded your vehicle, please let us know by completing the postage paid owner reply card and returning it to us.
We are sorry to cause you this inconvenience; however, we have taken this action in the interest of your safety and continued satisfaction with our products.
SUGGESTED OWNER FOLLOW-UP LETTER
General Motors has determined that some 1984 Cutlass Ciera, Firenza, and Omega two-door cars have been assembled with bucket seat back locks which fail to conform to the requirements of Federal Motor Vehicle Safety Standard 207 "Anchorage of Seats". In the event of a vehicle crash, the seat back inertia lock may not function. This would allow the seat back to fold forward, which could increase likelihood of injury to the seat occupant.
To prevent this condition from occurring, please contact your Oldsmobile Dealer to arrange a service date to have your vehicle inspected. Your dealer will check the bucket seat back locks. If necessary, the locks will be replaced. This service will be completed at no charge.
Please contact our Service Department on telephone number in order to arrange a mutually satisfactory date to have this service done on your vehicle. The labor time to perform this service is approximately 20 minutes. If seat back lock replacement is necessary, it will take about 40 minutes more.
We are sorry to cause you this inconvenience; however, we have taken this action in the interest of your continued satisfaction with our products.
