Home
>>
Oldsmobile
>>
1984
>>
88 Custom Cruiser V8-350 5.7L DSL VIN N FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

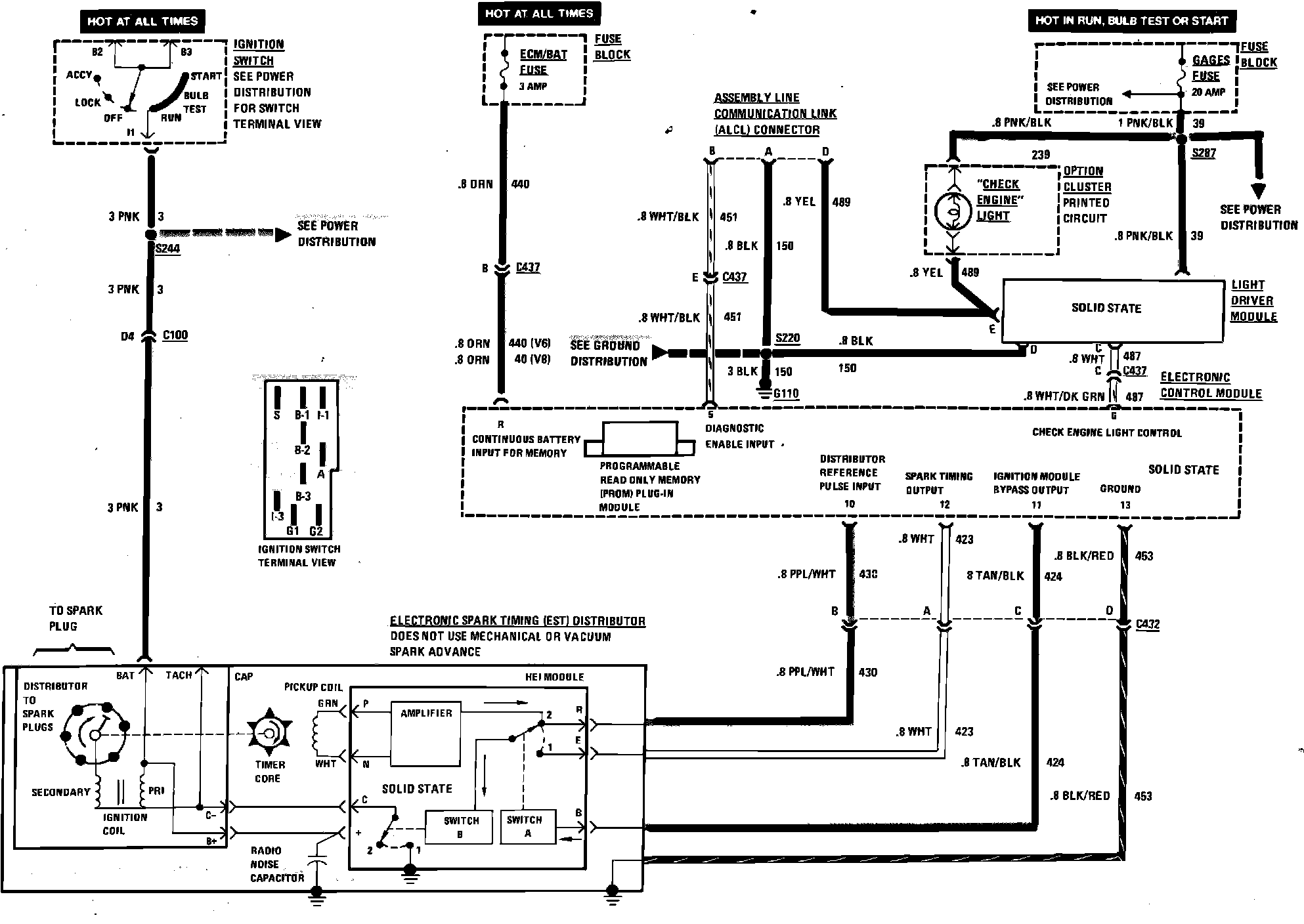

Computer Command Control (Check Engine Light & Ignition) Wiring Circuit:
