Oldsmobile
>>
1983
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Instrument Panel Circuits
Instrument Panel Circuits

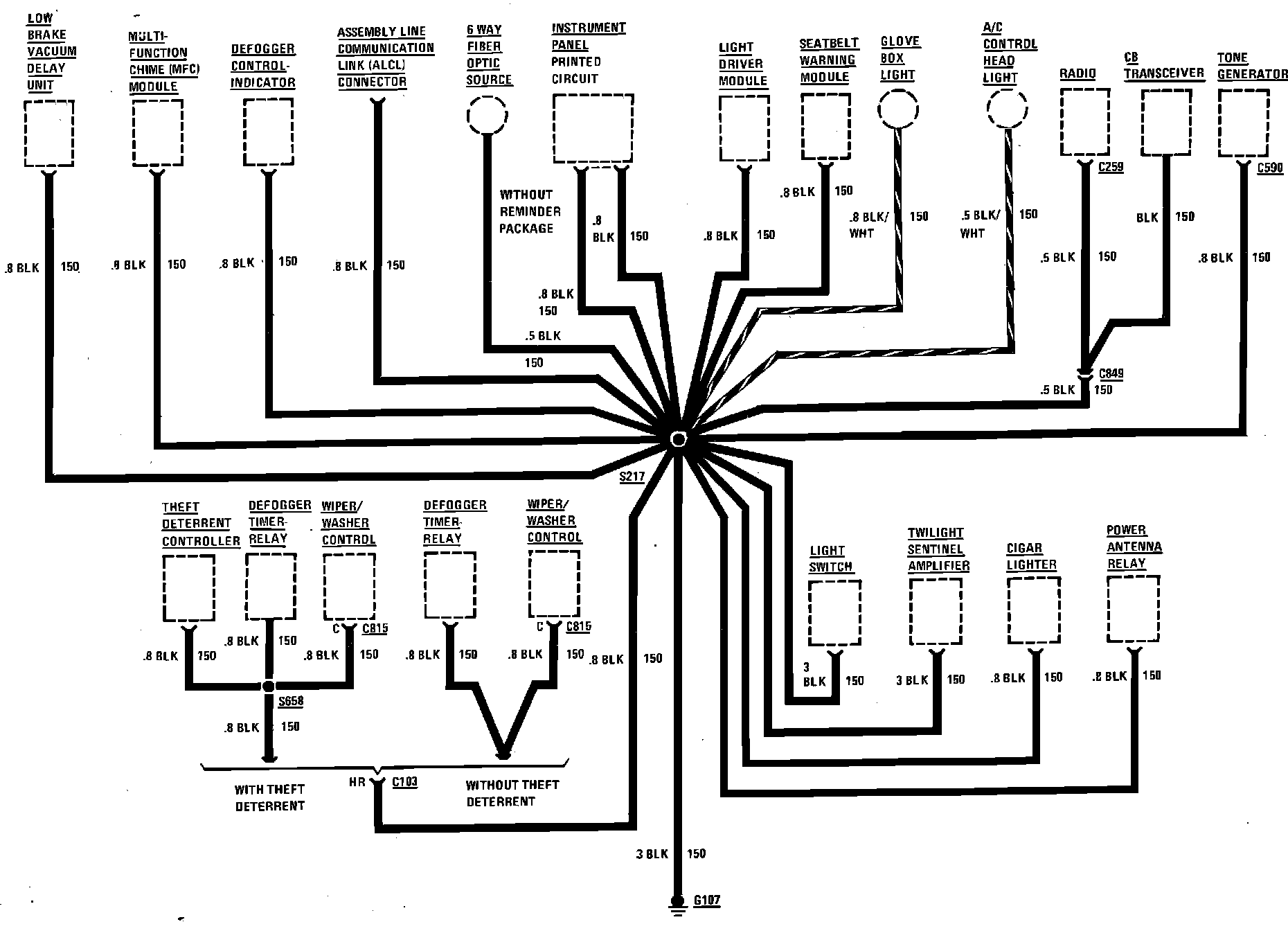

Ground Distribution (Instrument Panel Circuit):
