Home
>>
Oldsmobile
>>
1983
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seat Recliner Wiring Circuit
Power Seat Recliner Wiring Circuit

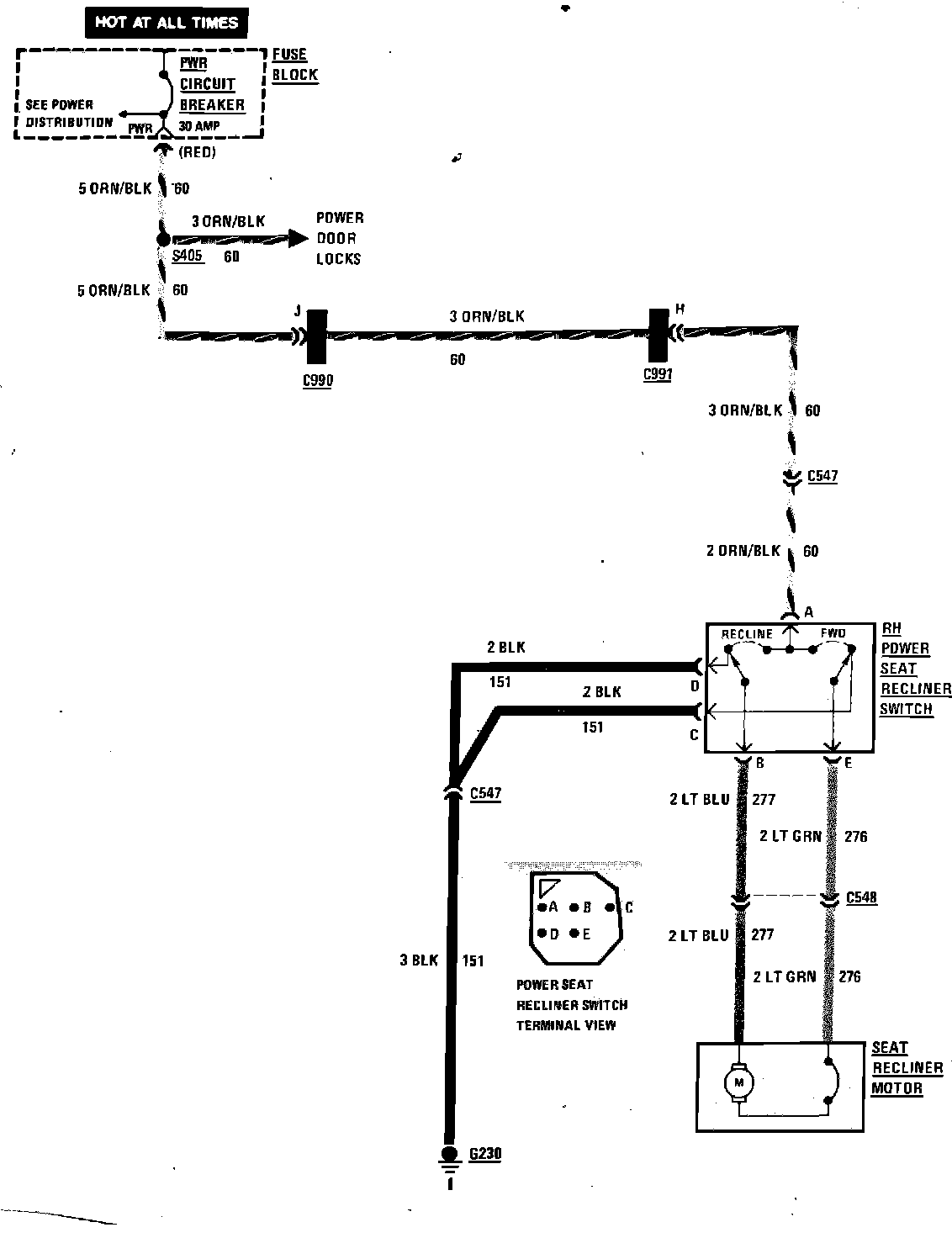

Power Seat Recliners Wiring Circuit:
