Oldsmobile
>>
1983
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Power Door Lock Actuator
Power Door Lock Actuator

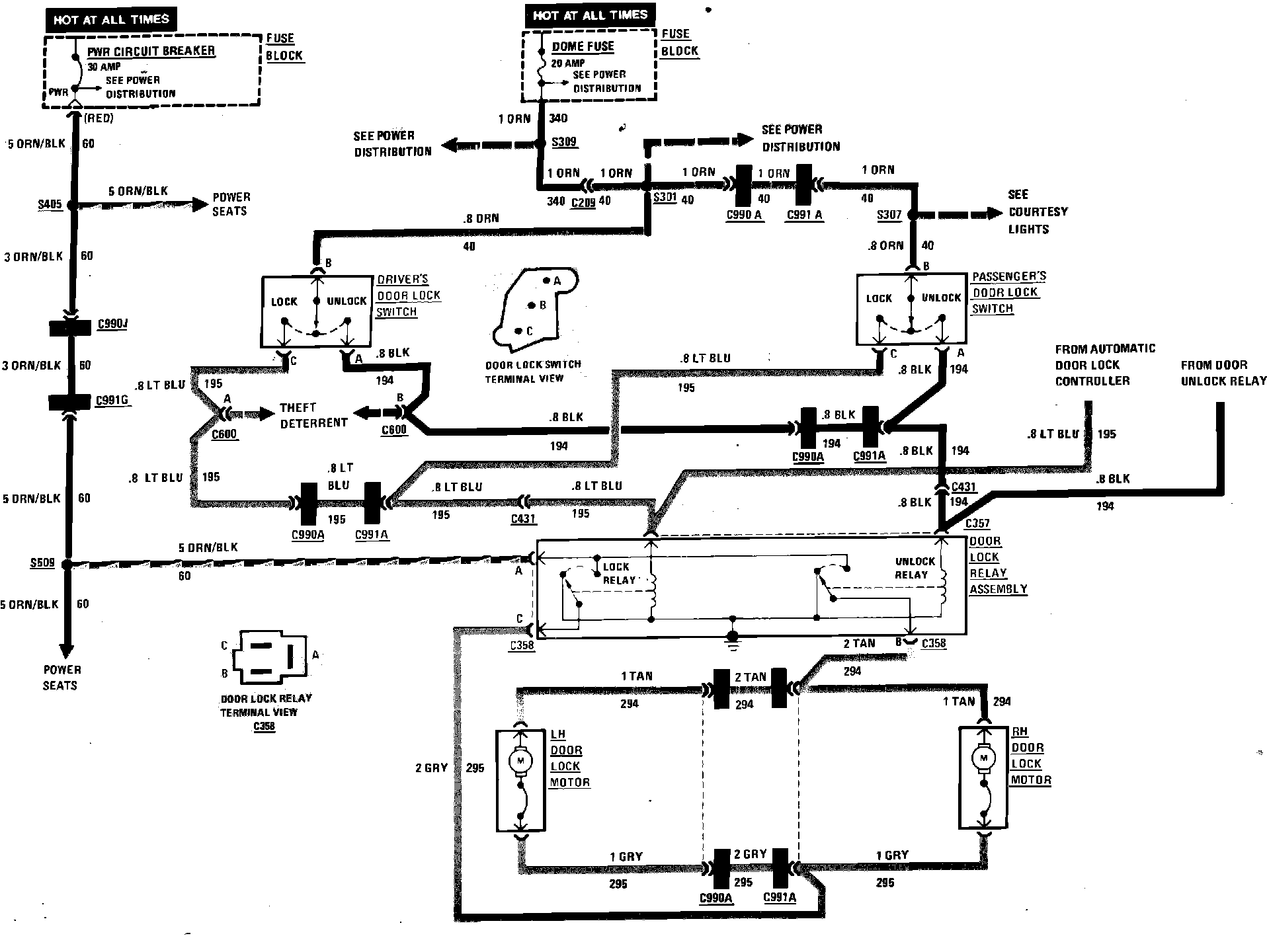

Automatic Door Locks Motor Wiring Circuit:
