Oldsmobile
>>
1983
>>
Toronado V6-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Courtesy Lamp
>>
System Diagram
>>
Courtesy Lamps
>>
Less Quarter Lights
Less Quarter Lights

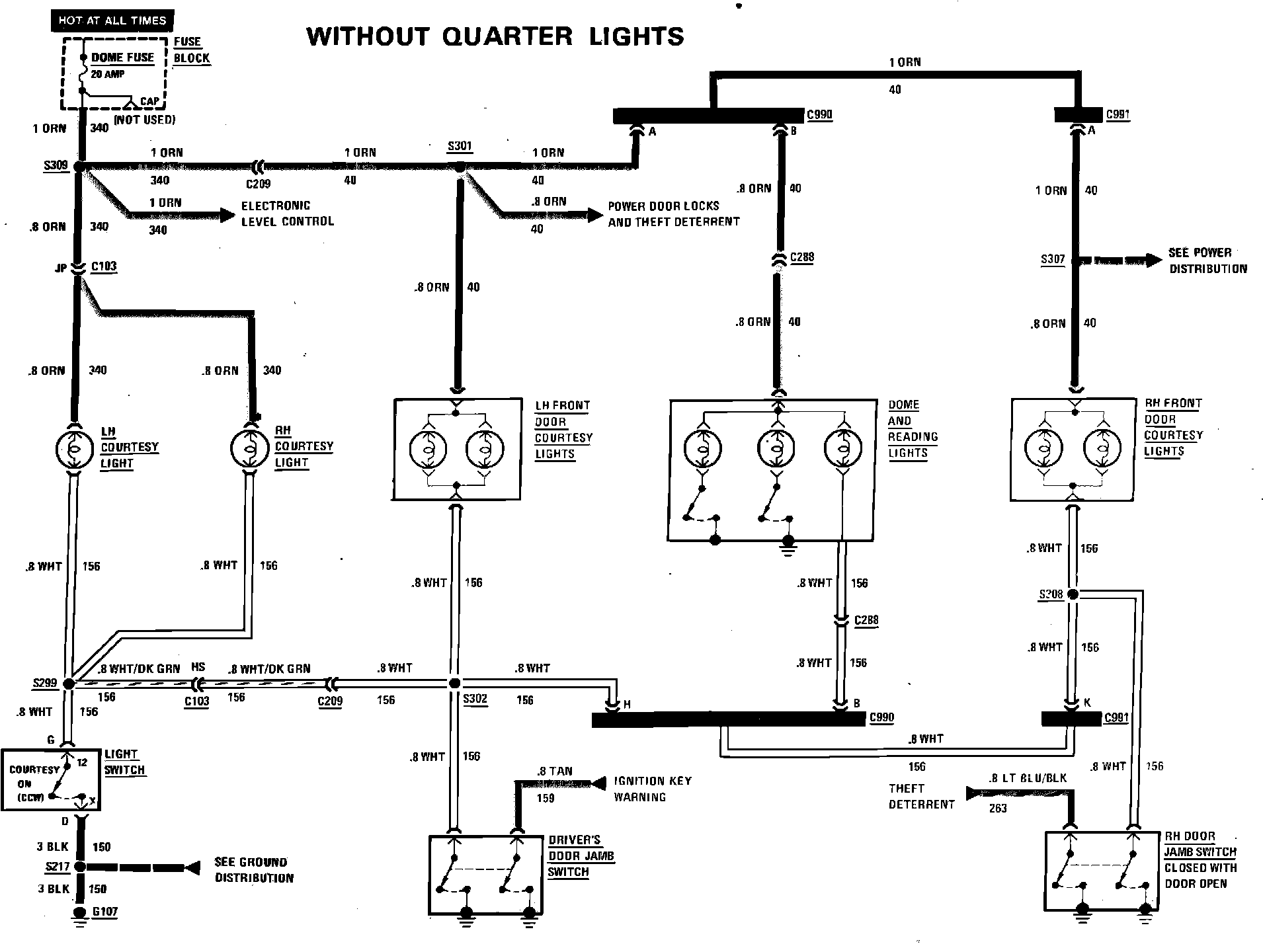

Courtesy Lights Wiring Circuit (Less Quarter Lights):
